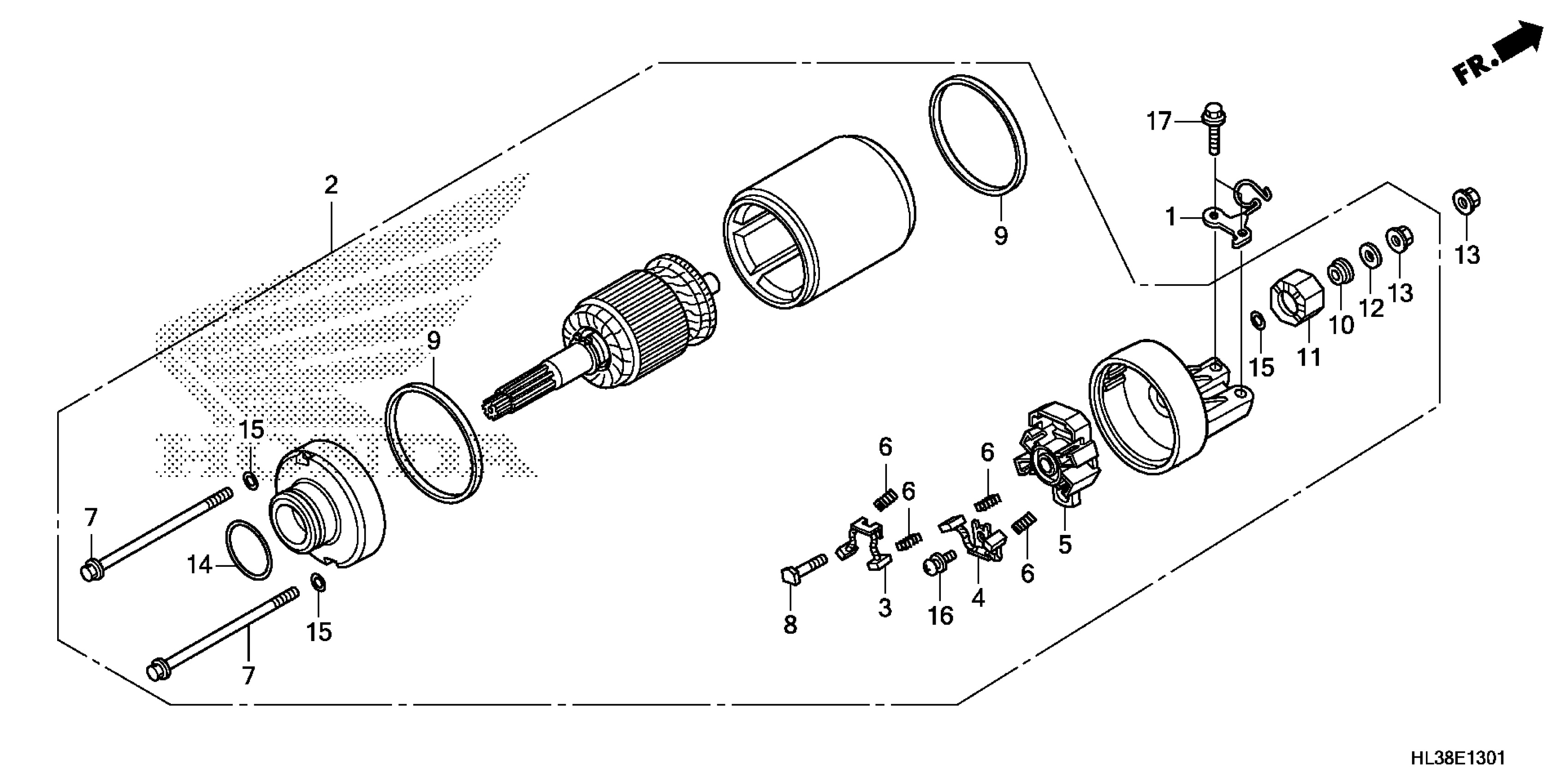

Honda SXS700M4AC (19) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFVE020-K4500001 TO 1HFVE020-K4599999 STARTING MOTOR (2) Diagram

Description

Price

CLIP, WATER HOSE | Use from Engine SN 8520911.

19315-HL3-A01

$7.54

STARTER MOTOR ASSY. | Use from Engine SN 8520911.

31200-HL3-003

$457.10

BRUSH SET A, CARBON (Honda Code 8476772) | Use from Engine SN 8520911.

31201-MEW-921

$7.25

BRUSH SET B, CARBON (Honda Code 8476780) | Use from Engine SN 8520911.

31202-MEW-921

$11.74

HOLDER, BRUSH (Honda Code 8614117) | Use from Engine SN 8520911.

31203-MEW-921

$6.96

SPRING, CARBON BRUSH (Honda Code 8476798) | Use from Engine SN 8520911.

31204-MEW-921

$11.33

BOLT, SETTING | Use from Engine SN 8520911.

31205-MEW-921

$8.88

BOLT, TERMINAL | Use from Engine SN 8520911.

31206-MEW-921

$2.67

RING (Honda Code 2541985) | Use from Engine SN 8520911.

31207-KS5-901

$2.90

INSULATOR (Honda Code 8476822) | Use from Engine SN 8520911.

31208-MEW-921

$6.97

STOPPER, TERMINAL (Honda Code 8476830) | Use from Engine SN 8520911.

31209-MEW-921

$10.35

WASHER | Use from Engine SN 8520911.

31210-MEW-921

$1.65

NUT-WASHER (6MM) | Use from Engine SN 8520911.

90071-MB0-000

$1.88

O-RING (24.4X3.1) | Use from Engine SN 8520911. This part replaces 91309-425-003.

91312-MG7-003

Unavailable

O-RING (24.4X3.1) (Honda Code 2618221) | Use from Engine SN 8520911.

91312-MG7-003

Unavailable

O-RING (Honda Code 1292184) | Use from Engine SN 8520911.

91320-MB0-000

$2.20

SCREW-WASHER (5X12) (Honda Code 0368621) | Use from Engine SN 8520911.

93892-05012-08

$1.04

BOLT, FLANGE (6X25) | Use from Engine SN 8520911.

95801-06025-00

$0.99
