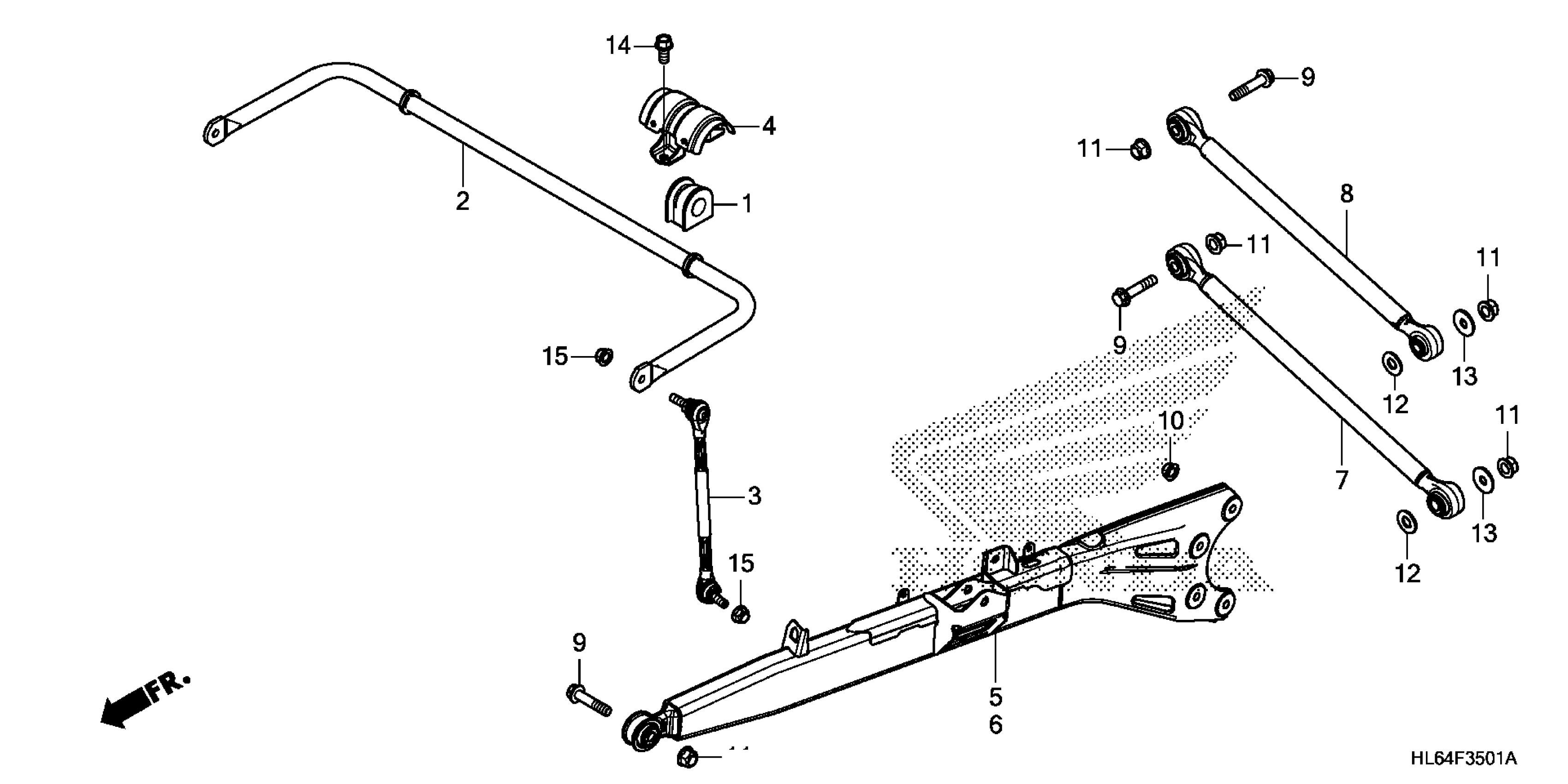

Honda SXS1000S2XAC (22) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFVE055-N4300001 REAR ARM@REAR STABILIZER (2) Diagram

#

Description
Price

1

BUSH, STABILIZER HOLDER

51306-S0X-A02

$6.69

2

SPRING, RR. STABILIZER (22.2MM)

52310-HL6-A01

$60.78

3

LINK, RR. STABILIZER

52320-HL6-A01

$23.90

4

HOLDER, STABILIZER BUSH

52330-HL6-A00

$25.83

5

ARM ASSY. (TYPE6)

52350-HL6-A41ZD

$401.52

6

ARM, L. (TYPE6) This part replaces 52360-HL6-A41ZD.

52360-HL6-AF0ZB

$401.52

7

ARM ASSY., RR. (LOWER) (TYPE6)

52910-HL6-A00ZH

$200.26

8

ARM ASSY., RR. (UPPER) (TYPE6)

52930-HL6-A00ZH

$204.71

9

BOLT, FLANGE (12X57)

90101-HL6-A00

$1.05

10

NUT, SELF-LOCK (10MM)

90305-HC0-770

$2.98

11

NUT, SELF-LOCK (12MM)

90305-HC4-000

$4.18

12

WASHER, PLAIN (15MM)

90503-HL6-A00

$0.60

13

WASHER, PLAIN (12MM)

90506-SLJ-000

$2.49

14

BOLT, FLANGE (10X20)

95701-10020-08

$2.49

15

NUT, U (10MM) NUT, SELF-LOCK (10MM)

90304-GE8-003

$3.66
