2000 Yamaha SX700SD 8CH40 Radiator Hose Diagram

← All diagrams

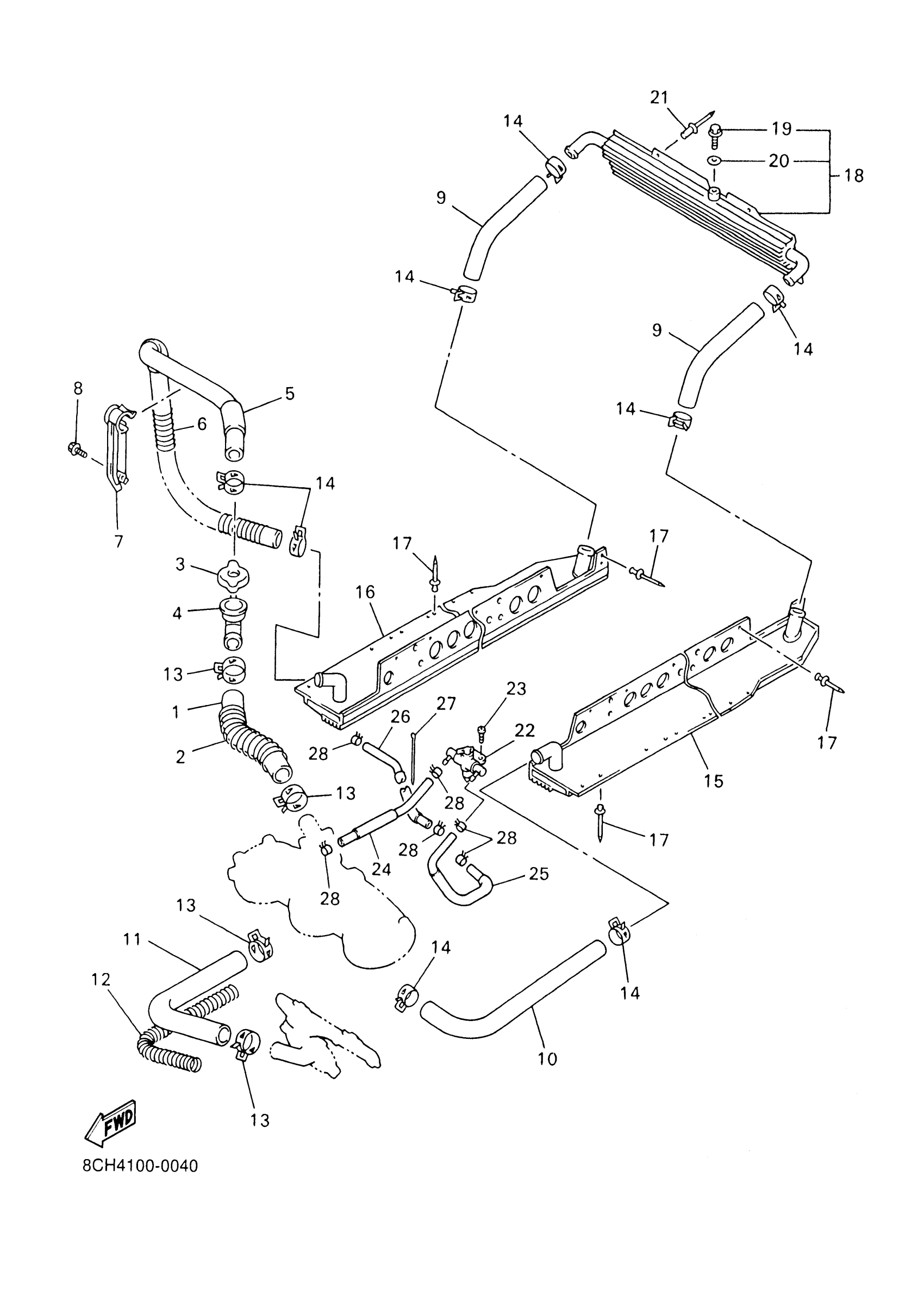

Find the part on the Radiator Hose diagram for your 2000 Yamaha SX700SD 8CH40, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2000 Yamaha SX700SD 8CH40 Radiator Hose Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PIPE 2

8CH-12482-00-00

1
Out of stock

2

SPRING, COMPRESSION

90501-100K8-00

1
Out of stock

3

CAP, RADIATOR

4FL-12462-00-00

1
Out of stock

4

SUPT, FILLER NECK

8CR-12591-00-00

1
Out of stock

5

PIPE 3

8CH-12483-10-00

1
Out of stock

6

SPRING, COMPRESSION

90501-143L9-00

1
Out of stock

7

CLAMP 1

8CR-12491-00-00

1
Out of stock

8

BOLT, FLANGE

95817-06014-00

—

$2.15

In stock

9

PIPE 4

8CR-12484-00-00

—

$15.52

In stock

10

PIPE 5

8CR-12485-00-00

1
Out of stock

11

PIPE 6

99999-03253-00

1
Out of stock

12

SPRING, COMPRESSION

90501-120K7-00

1
Out of stock

13

CLIP (8M6)

90467-28046-00

1

$12.43

In stock

14

CLIP (10V)

90467-23067-00

1

$3.86

In stock

15

HEAT EXCHANGER

8CR-1240E-03-00

1
Out of stock

16

HEAT EXCHANGER

8CR-1240F-03-00

1
Out of stock

17

RIVET, BLIND(8CR)

90267-47186-00

—

$2.31

In stock

18

HEAT EXCHANGER ASSY 4

8CH-1241A-01-00

1
Out of stock

19

BOLT, FLANGE

95817-06016-00

—

$1.49

In stock

20

WASHER, SEAL (7G5)

90210-06006-00

—

$5.72

In stock

21

RIVET, BLIND(8CR)

90267-47186-00

—

$2.31

In stock

22

COCK ASSY

8CH-1249A-03-00

1
Out of stock

23

SCREW, BINDING

98907-06020-00

—

$6.18

In stock

24

HOSE 1

8CH-1243A-01-00

1
Out of stock

25

HOSE 2

8CH-1243E-10-00

1
Out of stock

26

HOSE,3

8EX-1243F-00-00

1
Out of stock

27

BAND, SWITCH CORD

25G-83936-01-00

—

$4.12

In stock

28

CLIP

90467-11028-00

1

$5.14

In stock
