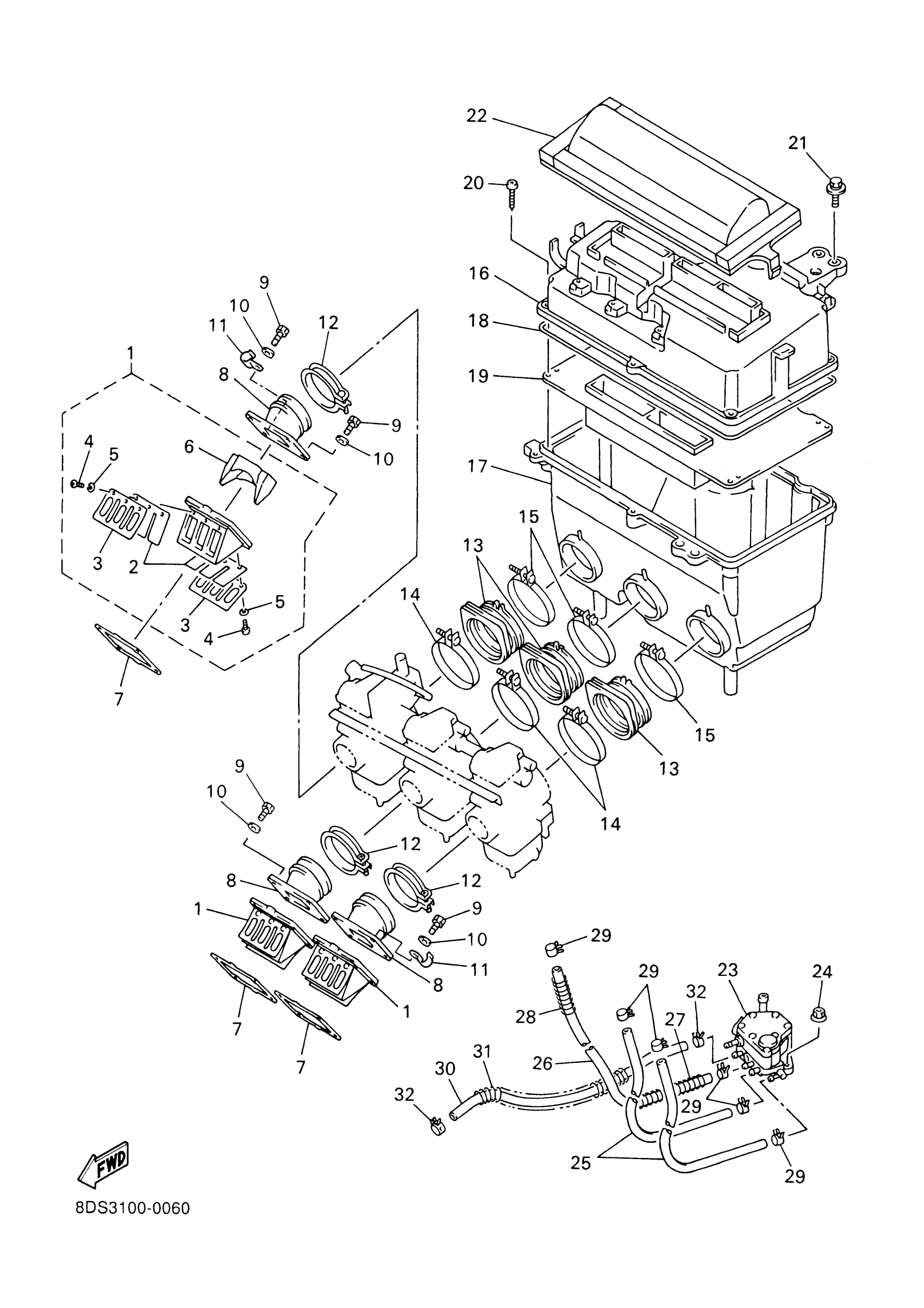

Find the part on the Intake diagram for your 2000 Yamaha SX700SD 8CH40, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2000 Yamaha SX700SD 8CH40 Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

REED VALVE ASSY

4DA-13610-01-00

1
Out of stock

2

REED, VALVE

3SP-13613-01-00

1

$26.43

In stock

3

STOPPER, REED VALVE

8DJ-13616-00-00

1

$15.54

In stock

4

SCREW, PAN HEAD(3AC)

98517-03008-00

1

$2.74

In stock

5

WASHER, SPRING

92990-03100-00

1

$6.17

In stock

6

. SPACER, REED VALVE

4DA-13625-00-00

1
Out of stock

7

GASKET, VALVE SEAT

8CH-13621-01-00

1

$11.92

In stock

8

MANIFOLD, INTAKE

8CH-13555-00-00

1
Out of stock

9

BOLT, HEXAGON

97017-06025-00

1

$2.98

In stock

10

WASHER(6TA)

92907-06600-00

1

$0.78

In stock

11

CLAMP (4G0)

90462-08078-00

1
Out of stock

12

BAND

86M-13575-00-00

1

$16.45

In stock

13

JOINT, AIR CLEANER 1

8CH-14453-00-00

1

$22.80

In stock

14

HOSE CLAMP ASSY

90450-53008-00

1
Out of stock

15

CLAMP, HOSE (29L)

90460-68230-00

1
Out of stock

16

SILENCER, INTAKE 1

8CH-14431-01-00

1
Out of stock

17

SILENCER, INTAKE 2

8CH-14441-01-00

1
Out of stock

18

SEAL

51Y-14462-00-00

—

$11.61

In stock

19

PLATE

8CH-14477-00-00

1
Out of stock

20

SCREW, TAPPING(82M)

90167-05043-00

—

$5.62

In stock

21

BOLT, WITH WASHER(3FC)

90119-06163-00

—
Out of stock

22

ELEMENT ASSY, AIR CLEANER

8CH-14450-00-00

—

$58.11

In stock

23

FUEL PUMP ASSY

8CH-24410-00-00

—

$190.88

In stock

24

NUT, FLANGE(4MV)

95707-06500-00

—

$0.78

In stock

25

HOSE (L280)

90445-09004-00

1

$3.15

In stock

26

HOSE (L420)

90445-092K1-00

—

$10.63

In stock

27

SPRING, COMPRESSION

90501-085L6-00

—

$3.78

In stock

28

SPRING, COMPRESSION

90501-086L1-00

—

$0.85

In stock

29

CLIP (8A1)

90467-09026-00

—

$2.72

In stock

30

HOSE (L400)

90445-116K9-00

—
Out of stock

31

SPRING, COMPRESSION (10L)

90501-08668-00

—
Out of stock

32

CLIP (7K7)

90467-11044-00

—
Out of stock
