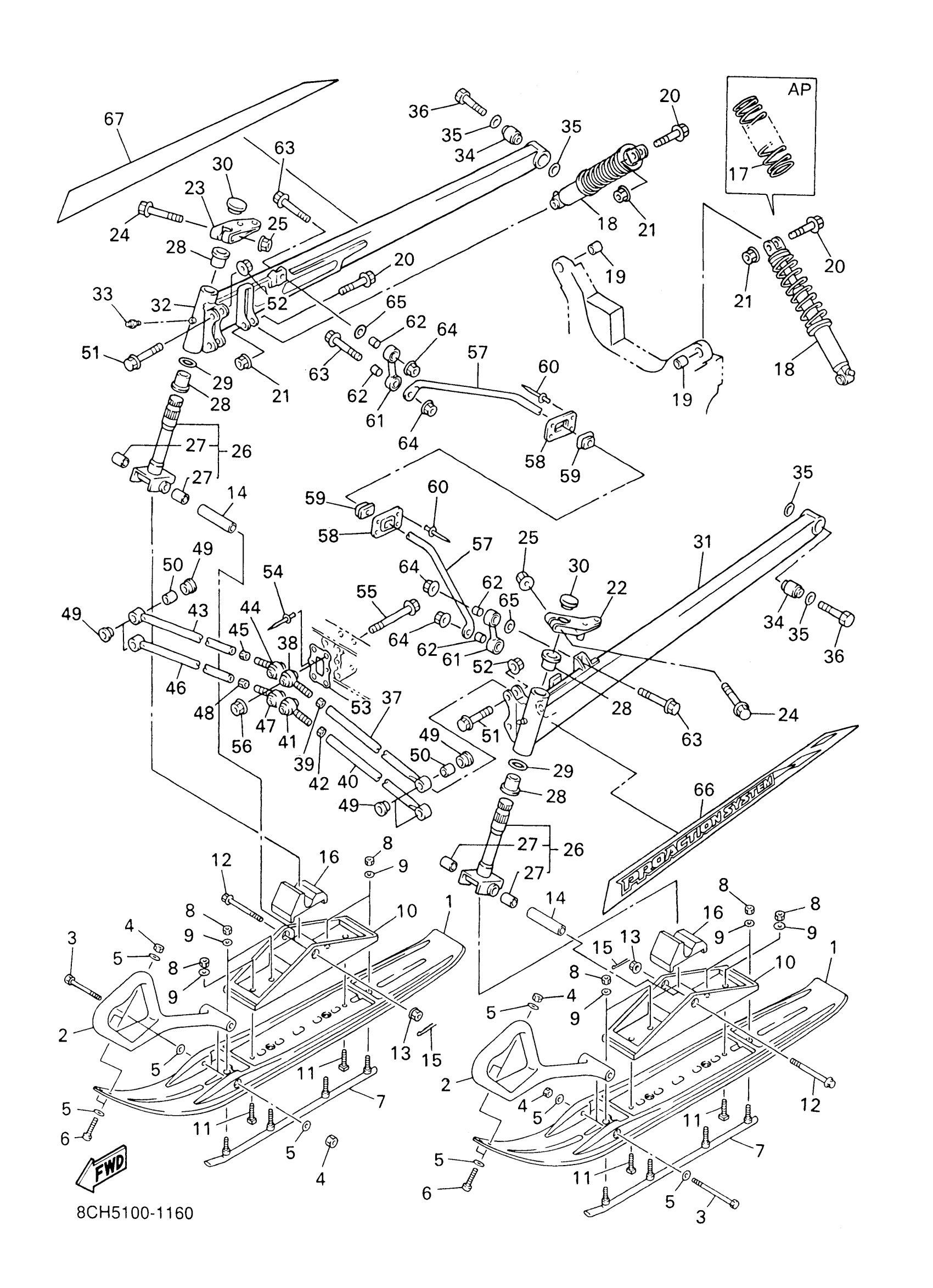

Find the part on the Ski diagram for your 2001 Yamaha SX700R (SX700F), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2001 Yamaha SX700R (SX700F) Ski Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SKI 1

8DF-23711-19-00

1
Out of stock

2

GYT/8DF SKI HANDLE BLUE

GYT-8DN91-35-BL

1
Out of stock

3

BOLT, REINF. HEAD 1

8DF-23755-00-00

1
Out of stock

4

NUT, NYLON

95717-08300-00

1
Out of stock

5

WASHER(6TC)

92907-08200-00

1
Out of stock

6

BOLT, BUTTON HEAD

92017-08040-00

1
Out of stock

7

RUNNER 1

8DF-23731-20-00

1
Out of stock

8

NUT, NYLON

95717-08300-00

1
Out of stock

9

WASHER, PLATE(3XP)

90201-086P8-00

1
Out of stock

10

SADDLE 1

8EA-23766-00-00

1
Out of stock

11

BOLT, SQUARE

90108-08002-00

1
Out of stock

12

BOLT, WASHER BASED(8AB)

90105-10712-00

1
Out of stock

13

NUT, SELF-LOCKING(JN5)

95607-10200-00

1
Out of stock

14

COLLAR

90387-1012H-00

1
Out of stock

15

PIN, COTTER

91490-20025-00

1
Out of stock

16

STOPPER 1

8CS-23743-00-00

1
Out of stock

17

SPRING ASSY 1 (K=11-19-21N/MM)

8CH-23760-40-00

1
Out of stock

17

SPRING ASSY 1

8CH-23760-50-00

—
Out of stock

17

SPRING ASSY 1

8CH-23760-60-00

—
Out of stock

17

SPRING ASSY 1

8CX-23760-00-00

—
Out of stock

17

SPRING ASSY 1 (K=23N/MM)

8CX-23760-10-00

1
Out of stock

18

ABSORBER ASSY 1

8CH-2376A-40-00

1
Out of stock

19

BUSH

8CR-2376B-00-00

1
Out of stock

20

BOLT, FLANGE

90105-10030-00

—
Out of stock

21

NUT, SELF-LOCKING(JN5)

95607-10200-00

1
Out of stock

22

ARM, OUTSIDE 1

8CR-23851-00-00

—
Out of stock

23

ARM, OUTSIDE 2

8CR-23852-00-00

1
Out of stock

24

BOLT, FLANGE(87Y)

95817-10055-00

—
Out of stock

25

NUT, SELF-LOCKING(JN5)

95607-10200-00

1
Out of stock

26

COLUMN, SKI ASSY

8CR-23803-01-00

—
Out of stock

27

BUSH, BIMETAL FORMED(8CJ)

90384-16251-00

—
Out of stock

28

BUSH, SOLID

90381-25115-00

—
Out of stock

29

WASHER, PLATE (25G)

90201-301G3-00

—
Out of stock

30

CAP 1

8CR-23741-10-00

—
Out of stock

31

ARM, FRONT 1

8CR-2382E-20-00

—
Out of stock

32

ARM, FRONT 2

8CR-2382F-20-00

1
Out of stock

33

NIPPLE, GREASE

93700-06M03-00

1
Out of stock

34

DAMPER

8CR-2516A-00-00

—
Out of stock

35

WASHER, PLATE(8CJ)

90201-120T5-00

—
Out of stock

36

BOLT(8CJ)

90101-12046-00

—
Out of stock

37

ARM, CONTROL 1

8CR-2384E-20-00

1
Out of stock

38

JOINT 2

8DN-23823-00-00

—
Out of stock

39

NUT, HEXAGON

95337-12600-00

—
Out of stock

40

ARM, CONTROL 2

8CR-2384F-20-00

—
Out of stock

41

JOINT 3

8DN-23832-00-00

1
Out of stock

42

NUT

95314-14600-00

1
Out of stock

43

ARM, CONTROL 1

8CR-2384E-20-00

1
Out of stock

44

JOINT 2

8DN-23823-00-00

—
Out of stock

45

NUT, HEXAGON

95337-12600-00

—
Out of stock

46

ARM, CONTROL 2

8CR-2384F-20-00

—
Out of stock

47

JOINT 3

8DN-23832-00-00

1
Out of stock

48

NUT

95314-14600-00

1
Out of stock

49

BUSH, SOLID(8CJ)

90381-17110-00

—
Out of stock

50

COLLAR(8CJ)

90387-1009K-00

—
Out of stock

51

BOLT, FLANGE

90105-10030-00

—
Out of stock

52

NUT, SELF-LOCKING(JN5)

95607-10200-00

1
Out of stock

53

WASHER

8DF-23779-00-00

—
Out of stock

54

RIVET, BLIND (8J5)

90267-48057-00

—
Out of stock

55

BOLT, FLANGE

90105-124A2-00

1
Out of stock

56

NUT, U FLANGE

95607-12200-00

—
Out of stock

57

BAR, STABILIZER FRONT

8CR-2386E-00-00

—
Out of stock

58

COVER, STABILIZER FRONT

8CR-2386H-00-00

1
Out of stock

59

BUSH, STABILIZER FRONT

8CR-2386G-00-00

1
Out of stock

60

RIVET, BLIND(8CR)

90267-47186-00

—
Out of stock

61

JOINT, STABILIZER 1 (STRONG BLUE)

8DF-2385L-00-00

1
Out of stock

62

COLLAR(8V7)

90387-087L3-00

—
Out of stock

63

BOLT, FLANGE

95817-08040-00

—
Out of stock

64

NUT, SELF-LOCKING

90185-08169-00

—
Out of stock

65

WASHER, PLATE(3XP)

90201-086P8-00

1
Out of stock

66

EMBLEM 15

8EA-77371-20-00

1
Out of stock

67

EMBLEM 16

8EA-77372-20-00

1
Out of stock
