2001 Yamaha SX500 8CT3 Steering Diagram

← All diagrams

Find the part on the Steering diagram for your 2001 Yamaha SX500 8CT3, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

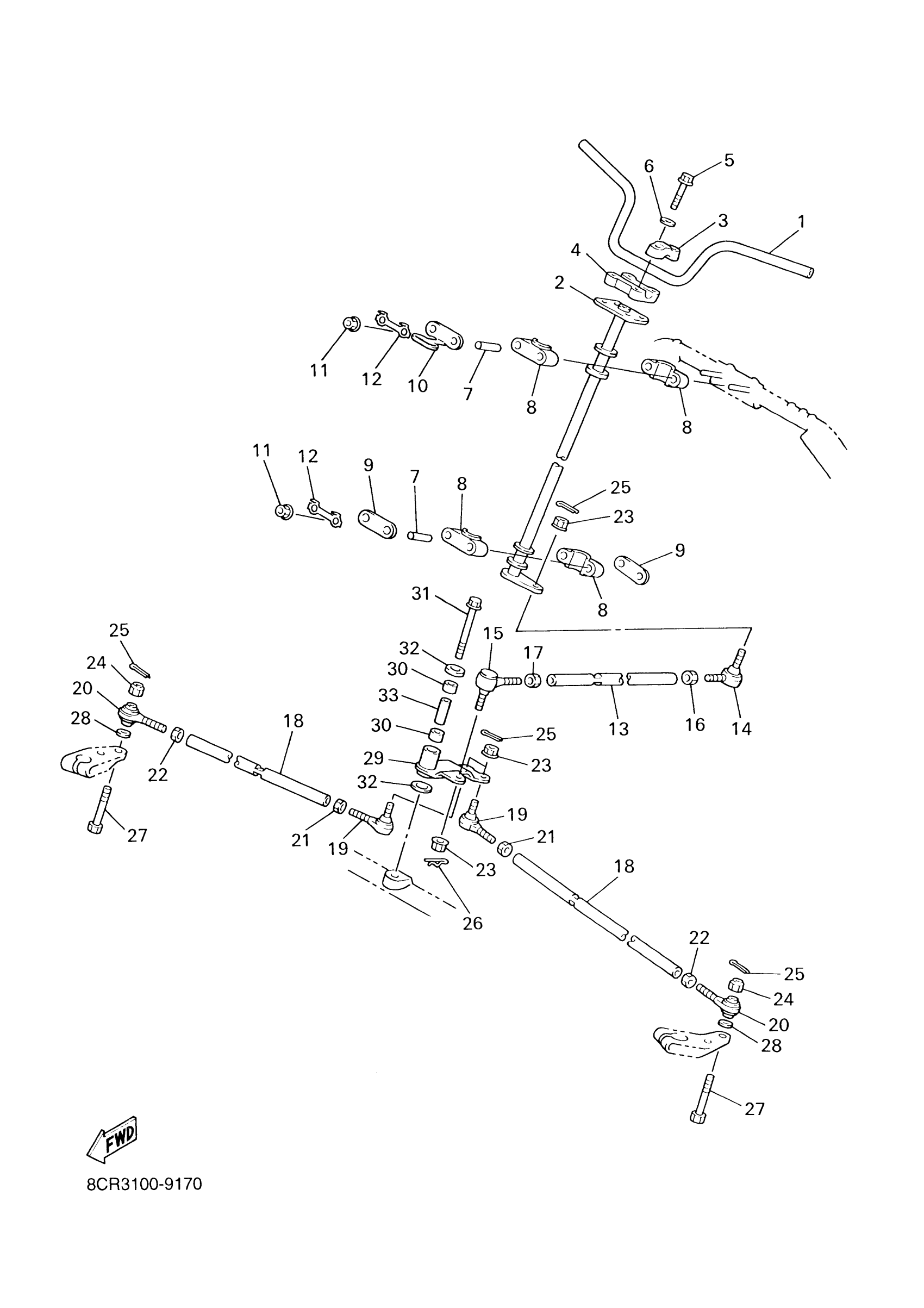

2001 Yamaha SX500 8CT3 Steering Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HANDLE COMP.

8CH-26110-00-00

1
Out of stock

2

COLUMN, STEERING 2

8ED-23813-00-00

1

$250.25

In stock

3

HOLDER, HANDLE UPPER

1E6-23441-00-00

1

$22.38

In stock

4

HOLDER, HANDLE LOWER

8ED-23442-00-00

—

$49.85

In stock

5

BOLT, HEXAGON

97017-08055-00

1

$6.88

In stock

6

WASHER(6TA)

92907-08600-00

1

$2.52

In stock

7

COLLAR(85G)

90387-106T4-00

1

$11.29

In stock

8

PLANE BEARING, STEERING

8DF-23812-00-00

1

$6.91

In stock

9

HOLDER, BEARING

8CR-23872-00-00

—

$2.57

In stock

10

HOLDER, BEARING

8CJ-23872-00-00

1

$11.85

In stock

11

NUT, NYLON

95717-08300-00

1

$2.57

In stock

12

WASHER, LOCK 1

1UY-23894-01-00

1
Out of stock

13

ROD, STEERING RELAY

8CR-23821-00-00

—

$21.34

In stock

14

JOINT, UNIVERSAL 2

8CR-23845-10-00

1

$52.81

In stock

15

JOINT, UNIVERSAL 3

8CR-23847-00-00

1

$48.17

In stock

16

NUT (3WP1)

95317-10700-00

—

$6.17

In stock

17

NUT, HEXAGON (8A5)

90170-10186-00

—

$7.60

In stock

18

ROD, TIE

8CR-23831-00-00

—
Out of stock

19

JOINT, UNIVERSAL 2

8CR-23845-10-00

1

$52.81

In stock

20

JOINT, UNIVERSAL 3

87S-23847-01-00

—

$44.71

In stock

21

NUT (3WP1)

95317-10700-00

—

$6.17

In stock

22

NUT, HEXAGON (8A5)

90170-10186-00

—

$7.60

In stock

23

NUT, FLANGE(8AB)

95707-10500-00

—

$1.66

In stock

24

NUT, NYLON

95707-10300-00

—

$6.68

In stock

25

PIN, COTTER

91490-25020-00

—

$2.94

In stock

26

CLIP 136253750000

90468-12006-00

—

$5.10

In stock

27

BOLT, PIN HOLE (8M6)

90102-10044-00

—

$12.18

In stock

28

WASHER PLATE (3L6)

90201-08759-00

—

$2.52

In stock

29

ARM, IDLER

8DF-23826-10-00

—

$83.22

In stock

30

BEARING, CYLINDRICAL(3VR)

93317-41767-00

—

$38.78

In stock

31

BOLT, WASHER BASED (26H)

90105-12252-00

—
Out of stock

32

WASHER, PLATE

90201-121U3-00

—

$5.45

In stock

33

COLLAR

8DF-2412G-00-00

—

$8.97

In stock
