2001 Yamaha SX500 8CT3 Generator Diagram

← All diagrams

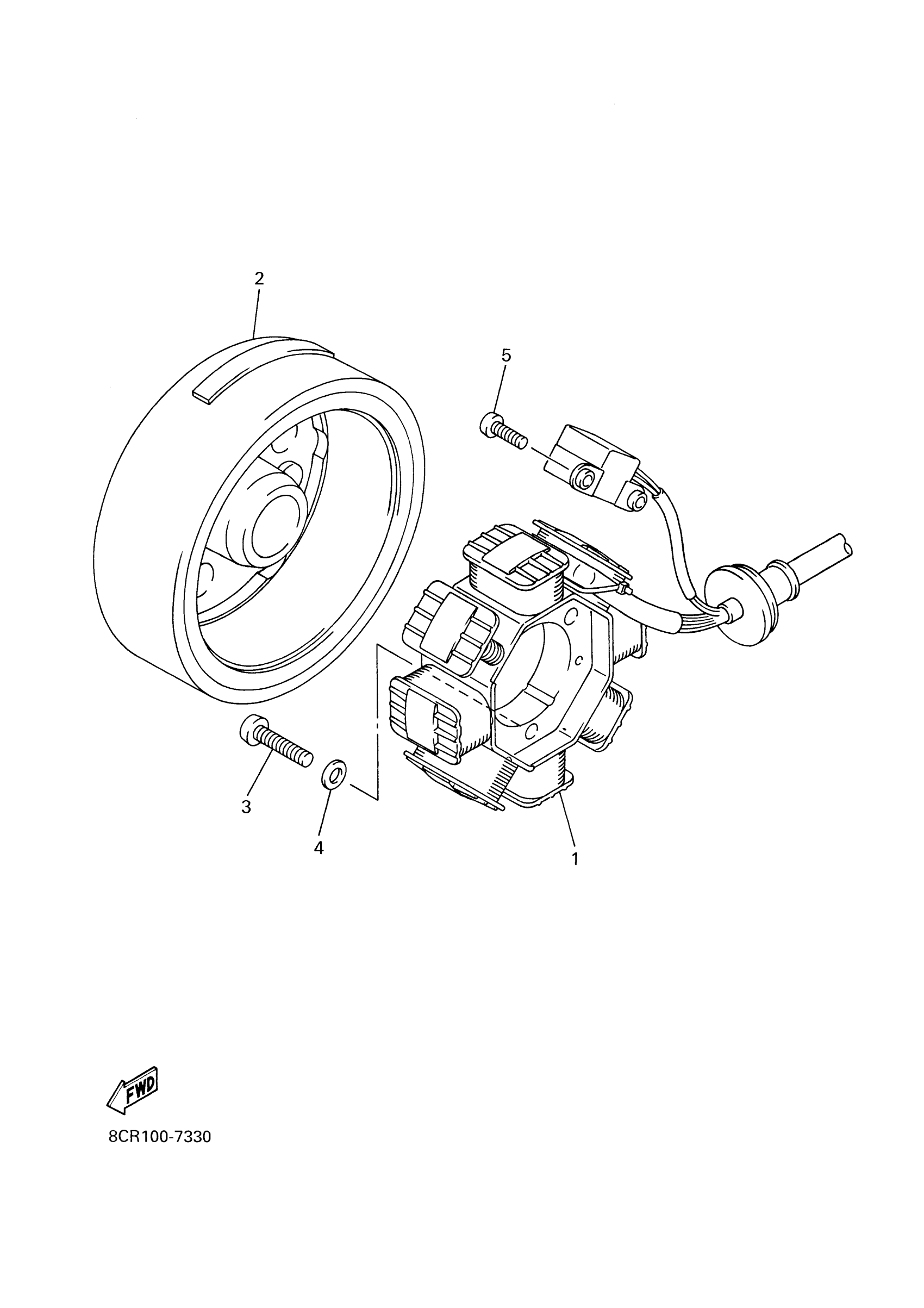

Find the part on the Generator diagram for your 2001 Yamaha SX500 8CT3, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2001 Yamaha SX500 8CT3 Generator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STATOR ASSY

8CR-85510-01-00

1
Out of stock

2

ROTOR ASY

8CR-85550-01-00

1
Out of stock

3

SCREW, PAN HEAD (76T)

98517-06025-00

1

$3.12

In stock

4

WASHER(6TA)

92907-06600-00

1

$0.78

In stock

5

SCREW, PAN HEAD

98507-05014-00

1

$6.18

In stock
