ENGINE CASE

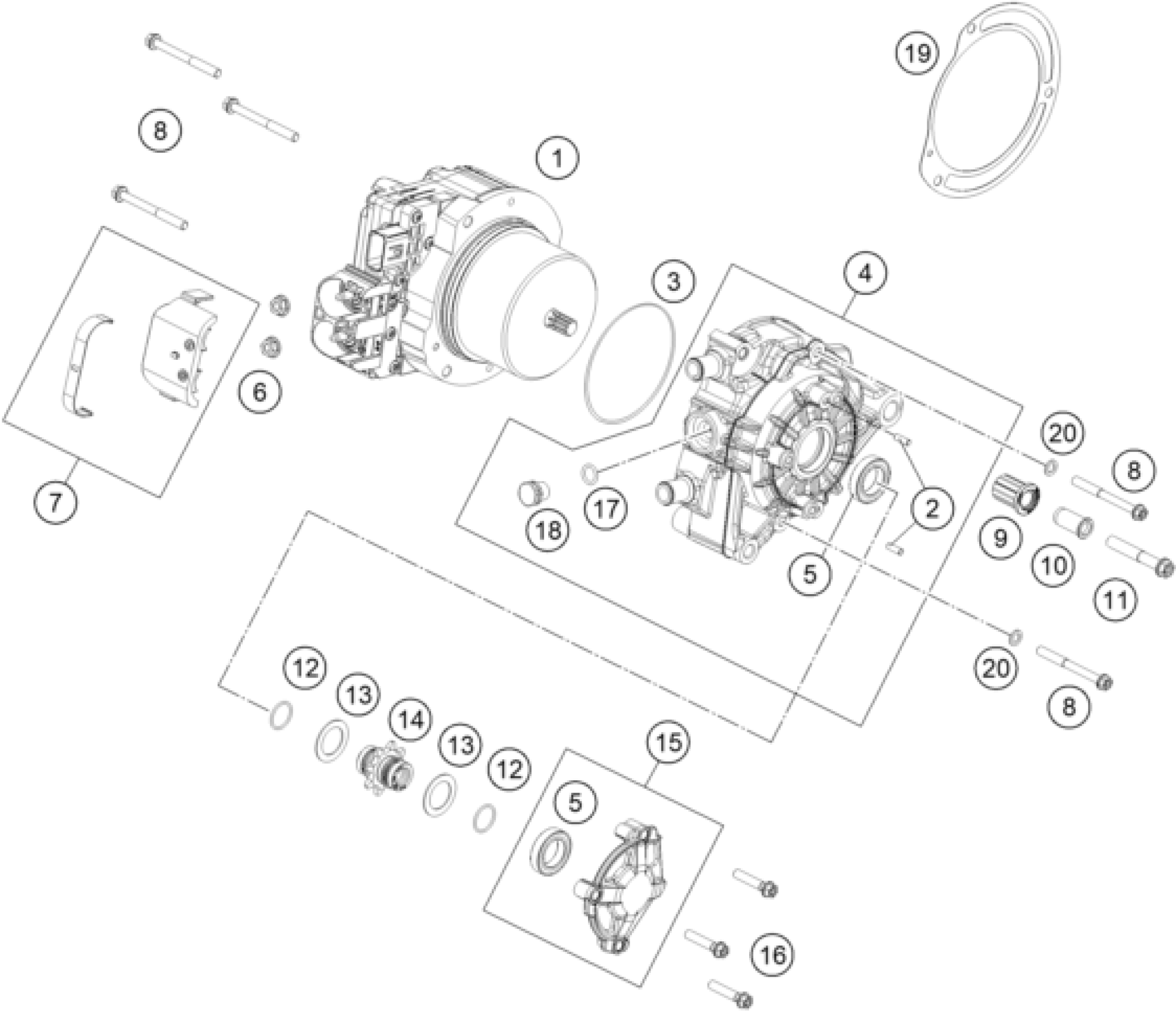

KTM SX-E 5 2025 ENGINE CASE Diagram
#
Description
Price
1
Electric motor
A20147000000
Unavailable
2
Needle bearing NRB 4X11.8
0402041180
Unavailable
3
O-ring 89 x 2.7 FKM 70
07708902701
Unavailable
4
Stator housing cmpl.
A20147001033
Unavailable
5
Grooved ball bearing 61804-2RS
0625068040
Unavailable
6
Hex.nut w.flange DIN6923-M6-10
06923060007
Unavailable
7
Protection cap, engine connect
45445050010
Unavailable
8
HH collar screw M6x60 TX30
0025060606
Unavailable
9
RUBBER SILENCER SUPPORT 05
61005013000
Unavailable
10
Sleeve silencer support
61005014000
Unavailable
11
HH COLLAR SCREW M8X45 ISA40
0025080456S
Unavailable
12
O-ring 17X1.5
0770017015
Unavailable
13
Stop disc
45445021000
Unavailable
14
Pinion shaft assy
45445018018
Unavailable
15
Adjustment bush bridge cmpl.
45445040233
Unavailable
16
HH collar screw M6x30 TX30
0025060306
Unavailable
17
o-ring 10.00x2.00 silicone
0770100020
Unavailable
18
BLEEDER VALVE M12X1,5
70045084000
Unavailable
19
Flange seal
A20147001001
Unavailable
20
CU-SEAL RING DIN7603-6X10X1
0603061001
Unavailable
