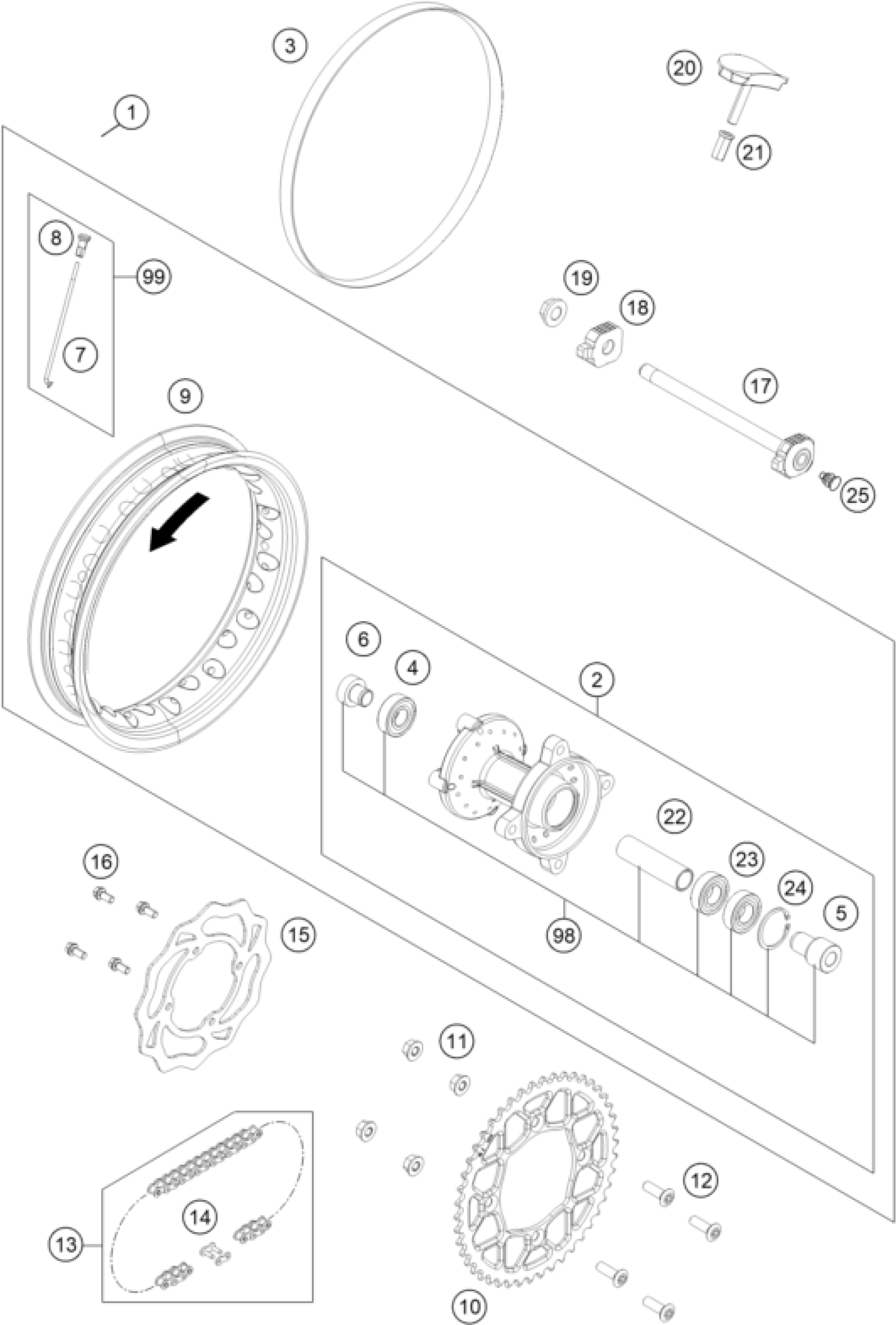

KTM SX-E 5 2021 REAR WHEEL Diagram

#

Description
Price

1

Rearwheel cpl. 50SX-Mini 2018

45310001044

Unavailable

2

REAR WHEEL HUB CPL. 50SX 2015

45210010144

Unavailable

3

RIM BAND 10'' 22MM

45009073000

Unavailable

4

BALL BEARING 6202-2RSH/C3

0625062028

Unavailable

5

SPACER BUSHING LEFT 2015

45210013100

Unavailable

6

SPACER BUSHING REAR R/S

45210014000

Unavailable

7

SPOKE 3X101 C.113°

45210071101

Unavailable

8

SPOKE NIPPLE ALU

46210072000

Unavailable

9

Rear rim 1,6x10"

4521007020033

Unavailable

10

Sprocket 45Z

45410051045

Unavailable

10

Rear sprocket 46 teeth

45410051046

Unavailable

10

Sprocket 47Z

45410051047

Unavailable

11

Self locking nut M8 10.9

54310086200

Unavailable

12

COUNTER-SUNK SCREW ISA45 M8X26

0019080266S

Unavailable

13

RACING CHAIN 1/2X3/16'' 50 SX

45110265104

Unavailable

14

CONNECTING LINK 1/2X3/16'' 90R

45110266000

Unavailable

15

BRAKE DISC FRONT JUN/SEN 09

45209060000

Unavailable

16

SPECIAL SCREW M6X16 WS=8 10.9

59009062016

Unavailable

17

Rear wheel spindle cmpl.

45410085044

Unavailable

18

Chain tension adjuster right

45410084000

Unavailable

19

Collar nut, M12x1, right

49030021100

Unavailable

20

Rim lock 2004

45110090000

Unavailable

21

NUT FOR WHEEL HOLDER

77110090050

Unavailable

22

BEARING DISTANCE TUBE 2015

45210011100

Unavailable

23

GR.BALL BEAR. 6003-2RSH/C3HMTF

0625060037

Unavailable

24

CIRCLIP DIN0472-35X1,5

0472035150

Unavailable

25

Plug SFL16

50210086000

Unavailable

98

REAR WHEEL REP. KIT 50 SX 15

45210015100

Unavailable

99

SPOKE KIT REAR 10''

00050000969

Unavailable
