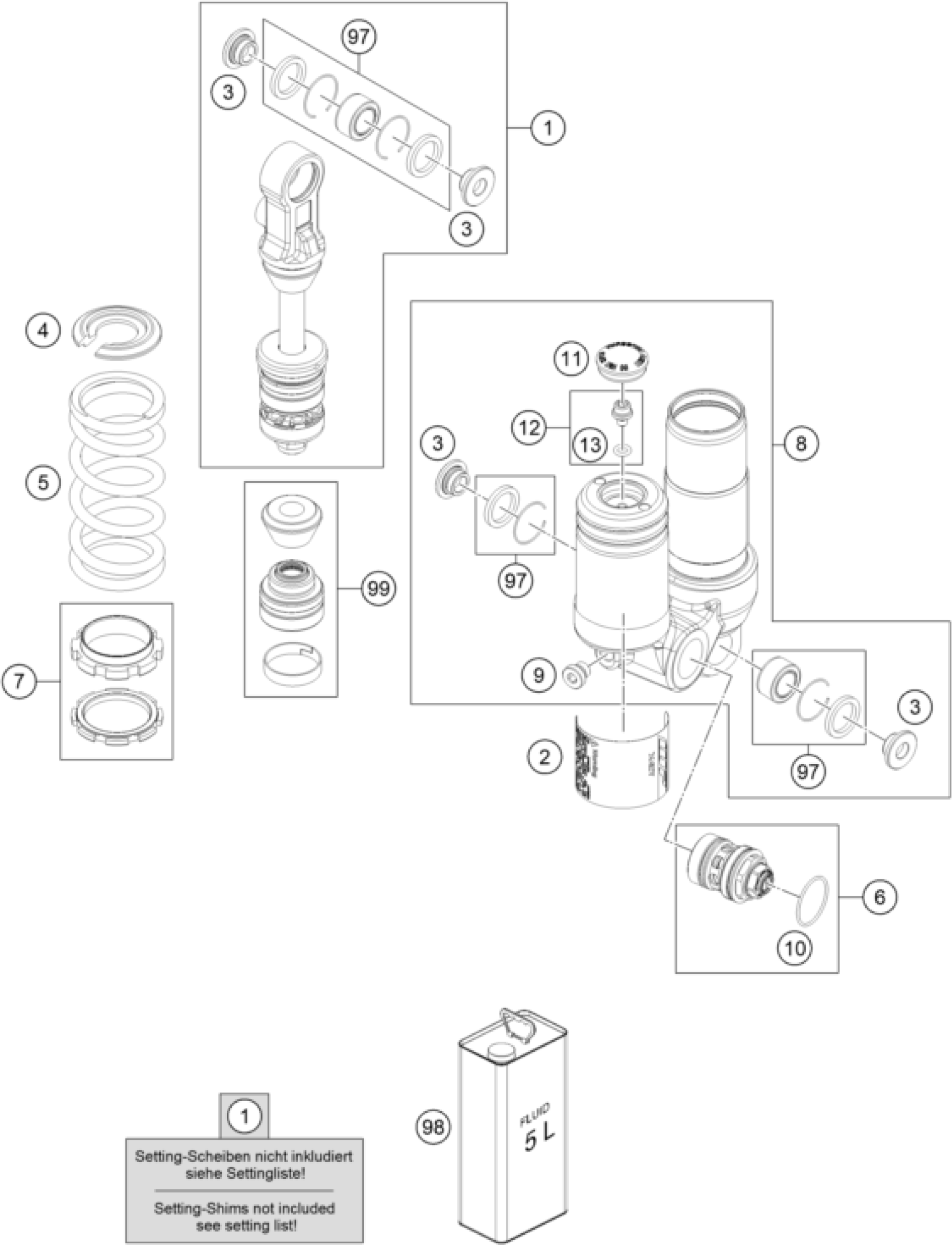

KTM SX-E 5 2020 SHOCK ABSORBER DISASSEMBLED Diagram

#

Description
Price

1

bottom part cpl.

36120781S17

Unavailable

2

sticker XACT 90x40

52000263

Unavailable

3

Distance bush 10x15/18/24,5x9,

46180009

Unavailable

4

Spring retainer 27x57x2

36120386

Unavailable

5

SHOCK SPRING 35N/MM - 130MM WH

93010217S

Unavailable

5

SHOCK SPRING 30N/MM - 130MM WH

93010218S

Unavailable

5

SHOCK SPRING 40N/MM - 130MM WH

93010219S

Unavailable

6

compression cpl.

50181101S38

Unavailable

7

ADJUSTING NUT CPL.

36120418S

Unavailable

8

Top part cmpl.

36120858S2

Unavailable

9

HS cylinder-head screw R1/8 l8

50180095

Unavailable

10

O-ring 27x1,5 Viton70 green IS

50180217

Unavailable

11

Rubber cap do not open 22x5,5

46811208

Unavailable

12

PLUG SCREW M5X6 CPL.

36120151S

Unavailable

13

O-ring 5,28x1,78 NBR70 black

46810893

Unavailable

97

Ball joint bearing kit top 12m

R12012

Unavailable

99

REP. KIT MONOSHOCK MINI 17

RP10003

Unavailable

98

SHOCK ABSORBER FLUID 5 LT

50180751S1

Unavailable
