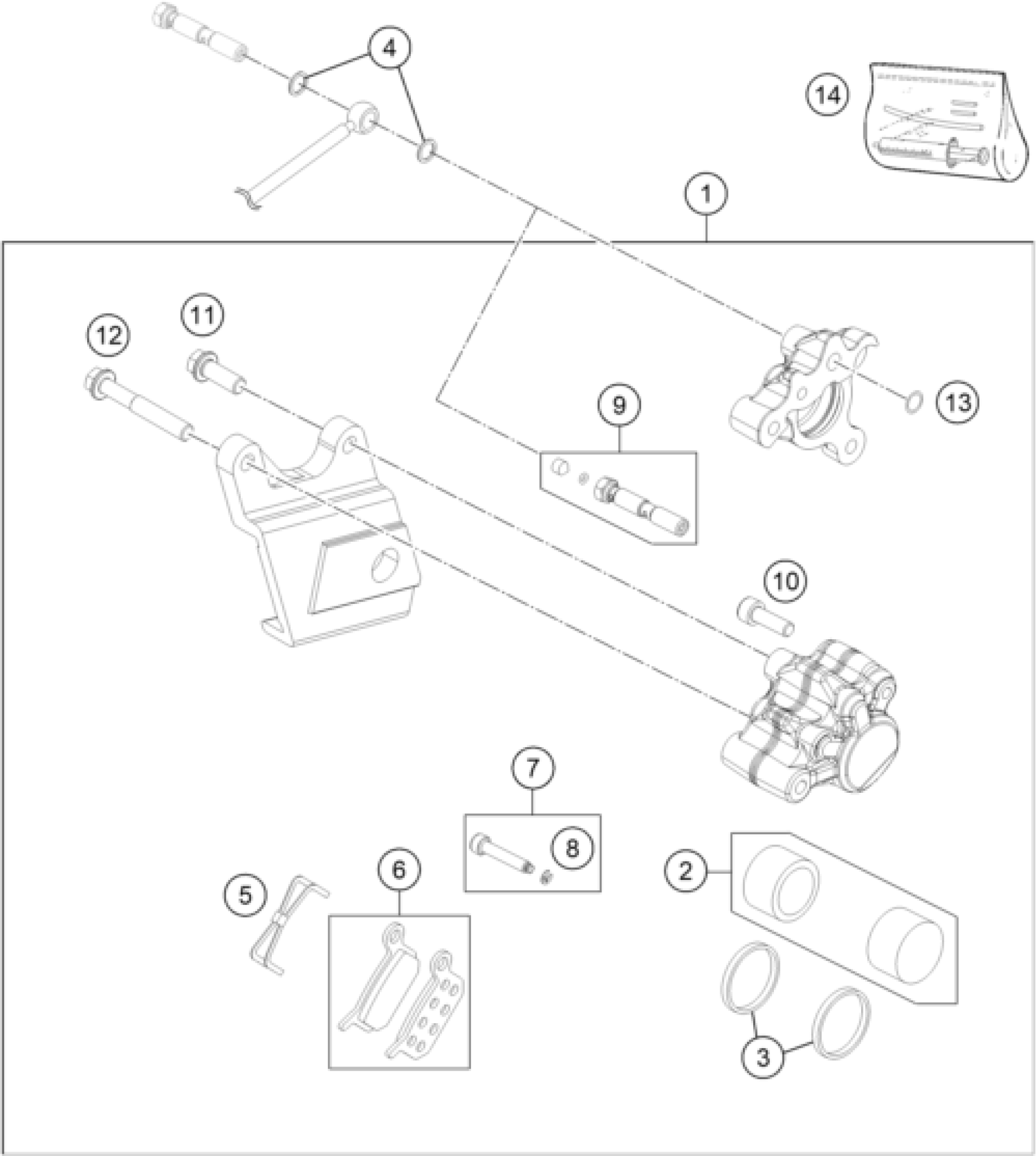

KTM SX-E 5 2020 REAR BRAKE CALIPER Diagram

#

Description
Price

1

BRAKE CALIPER REAR

45213080000

Unavailable

2

REPAIR KIT BRAKEPISTON

45113019100

Unavailable

3

O-RING 22X2X2 EPDM

0770022020

Unavailable

4

O-ring 6.00X1.00 FORMULA

0770060019

Unavailable

5

RETAINING SPRING 50 LC

45113018000

Unavailable

6

BRAKE PAD SET 50 LC 2002

45113030000

Unavailable

7

AH SCREW + CIRCLIP 50/65 04

45113225000

Unavailable

8

TAB WASHER DIN6799 RS2,5

0799025000

Unavailable

9

HOLLOW SCREW CPL.

46113225000

Unavailable

10

AH collar screw DIN 912 M5x16

0912050163

Unavailable

11

HH collar screw M6x16 TX30

0025060166

Unavailable

12

HH collar screw M6x40 TX30

0025060406

Unavailable

13

O-RING 8,00X1,00 FORMULA

0770080019

Unavailable

14

BLEEDER INJECTION-SET 50-65

45119050000

Unavailable
