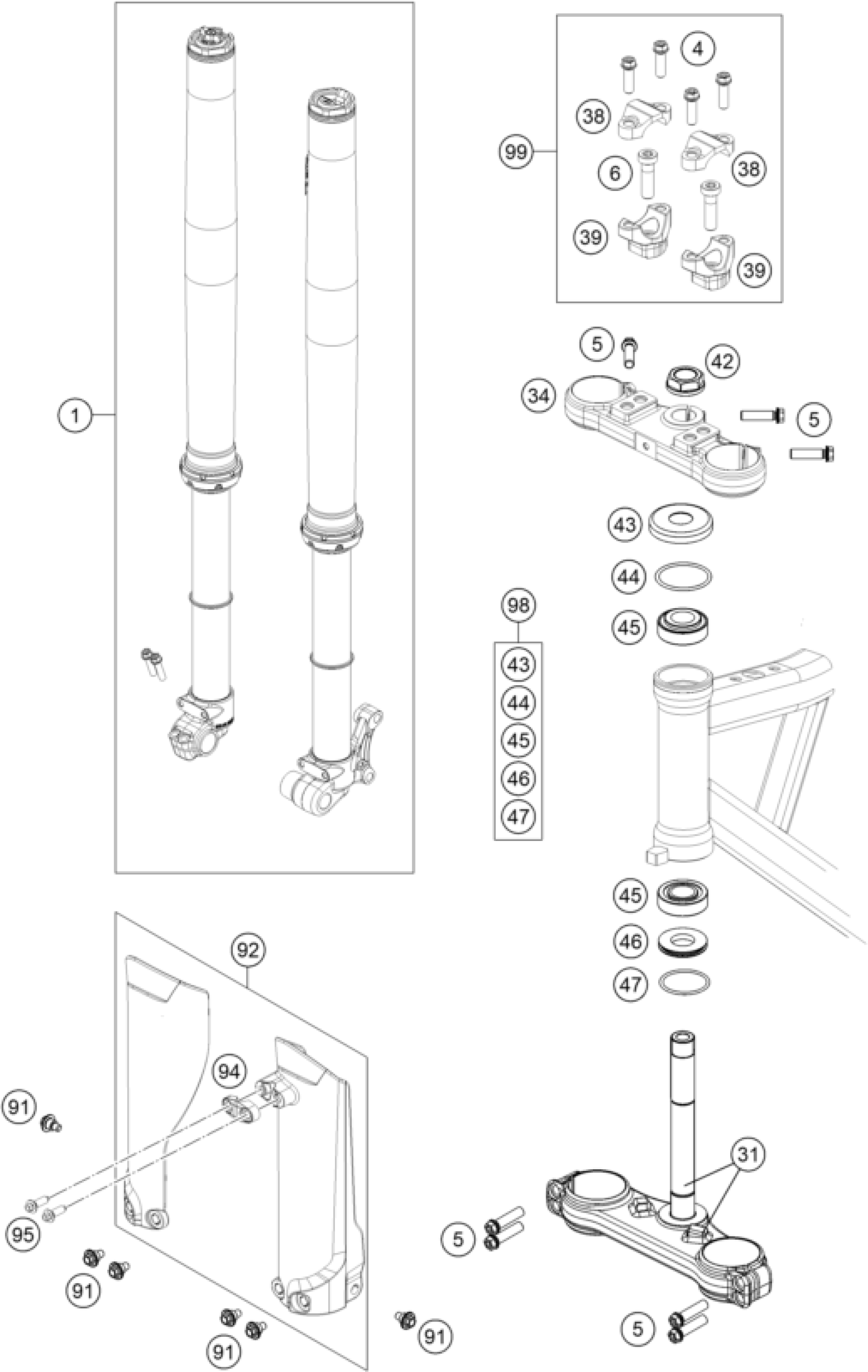

KTM SX-E 5 2020 FRONT FORK, TRIPLE CLAMP Diagram

#

Description
Price

1

Fork 50 SX/TC 20

07186T0201

Unavailable

5

HH collar screw M8x30

0025080306

Unavailable

6

AH-COLLAR SCREW M10X35 ISA45

0032100356S

Unavailable

31

BOT. TRIPLE CLAMP CPL.

45201032022

Unavailable

34

Triple clamp bottom

45201034122

Unavailable

38

HANDLEBAR CLAMP 28MM

77201038000

Unavailable

39

Handlebar mount D28mm-H37mm

59401039037

Unavailable

42

HH NUT M20X1,5 WS=27 RIGHT

59030029000

Unavailable

43

COVERING CAP

49001086000

Unavailable

44

O-ring 40.94X2.62 NBR70

0770021300

Unavailable

45

TAPERED ROLLER BEARING 32004X

49001081000

Unavailable

46

PROTECTION RING 20,1X39X5

46001086000

Unavailable

47

O-RING 36,00X3,00 NBR

0770360030

Unavailable

91

SPECIAL SCREW M6X12,5 WS=8

59001092050

Unavailable

92

Fork protection Kit SX-E

46301094000ABB

Unavailable

94

Clamp brake hose

46301085000AB

Unavailable

95

SCREW F. PLASTIC K60X20AL SW6

0017060206

Unavailable

98

STEARING HEAD REP. KIT MINI

00050000931

Unavailable

99

HANDLEBAR SUPPORT KIT D28/H37

00050000921

Unavailable

4

HH collar screw M8x25

0025080256

Unavailable

39

Handlebar mount D28mm-H32mm

59401039032

Unavailable

39

Handlebar mount D28mm-H42mm

59401039042

Unavailable

39

HANDLEB.SUPP. D=28MM H=47MM 05

59401039047

Unavailable
