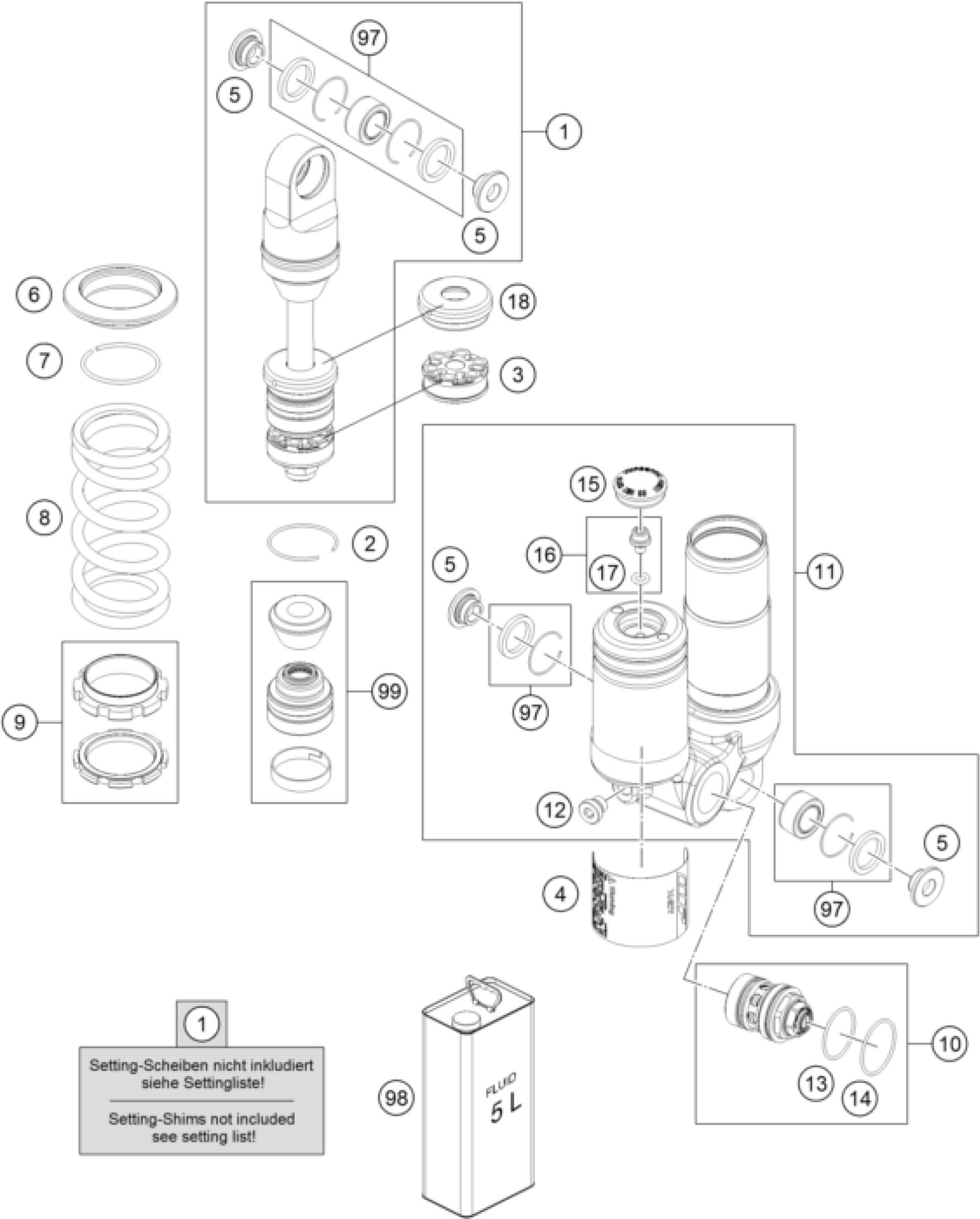

KTM SX-E 3 2025 SHOCK ABSORBER DISASSEMBLED Diagram

#

Description
Price

1

bottom part cpl.

S421400001S0101

Unavailable

4

sticker XACT 90x40

52000263

Unavailable

5

Distance bush 10x15/18/24,5x9,

46180009

Unavailable

6

Spring retainer 41,15x61,7x12.

S82900001300001

Unavailable

8

Spring (47) 25-130,0 shock whi

93010227

Unavailable

8

SHOCK SPRING 30N/MM - 130MM WH

93010218S

Unavailable

8

SHOCK SPRING 35N/MM - 130MM WH

93010217S

Unavailable

8

SHOCK SPRING 40N/MM - 130MM WH

93010219S

Unavailable

10

compression cpl.

50181101S59

Unavailable

9

ADJUSTING NUT CPL.

36120418S

Unavailable

11

Top part cmpl.

36120858S2

Unavailable

12

HS cylinder-head screw R1/8 l8

50180095

Unavailable

14

O-ring 27x1,5 Viton70 green IS

50180217

Unavailable

15

Rubber cap do not open 22x5,5

46811208

Unavailable

16

PLUG SCREW M5X6 CPL.

36120151ST

Unavailable

17

O-ring 5,28x1,78 HNBR70 red

S208600003000FB

Unavailable

97

Ball joint bearing kit top 12m

R12012T

Unavailable

99

Repair kit shock absorber 50 S

RP10056T

Unavailable

98

SHOCK ABSORBER FLUID 5 LT

50180751S1

Unavailable

7

round wire circlip 42.6x2

S23900000300000

Unavailable

13

O-ring 25x1,5 Viton70

50180218

Unavailable

2

Round-wire snap ring 38x1,5

40540015

Unavailable

3

Piston 10,5x35,6x13,65 3,5/5,5

36120071

Unavailable

18

Cover 36,12x5,5 h13 red

36140001

Unavailable
