MASK, FENDERS

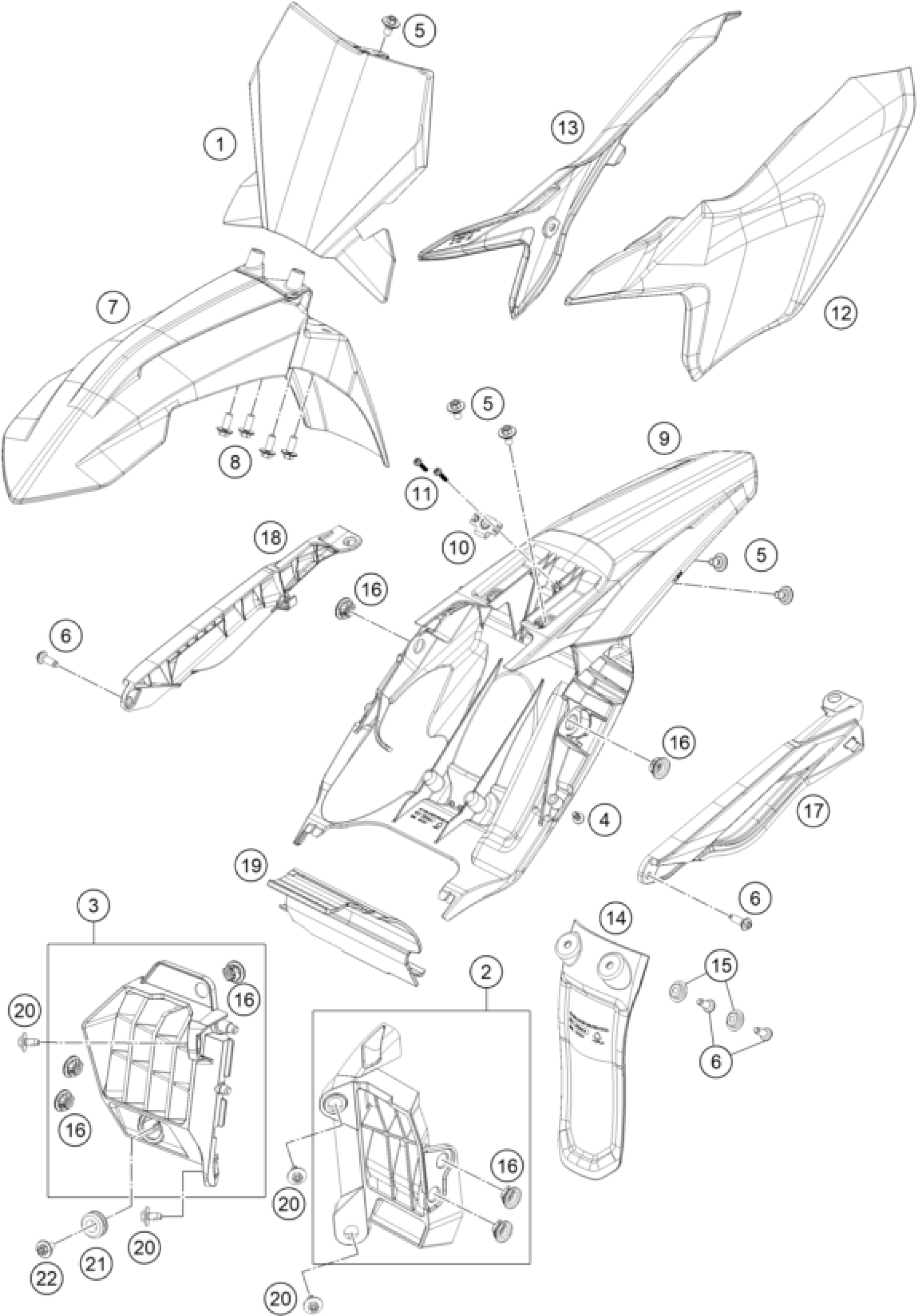

KTM SX-E 3 2025 MASK, FENDERS Diagram
#
Description
Price
1
Number plate
A40008007000EBC
Unavailable
2
radiator crash protector lhs
A20135034033
Unavailable
3
radiator crash protector rhs
A20135035033
Unavailable
4
SCREW FOR PLASTIC K50X18 T20
0081050181
Unavailable
5
special screw M6x12x3
83008000012
Unavailable
6
SCREW FOR PLASTIC K60X20 SW6
0017060205
Unavailable
7
Front fender 50 SX, orange
45308010000EB
Unavailable
8
HH collar screw M6x13 TX30
0024060136
Unavailable
9
Fender rear cmpl.
A40008113033EBA
Unavailable
10
Past mount quick lock
45007040050
Unavailable
11
EJOT Delta PT screw 35x16
0081035163
Unavailable
14
Splash protection
A40006010000
Unavailable
15
BUSH FOR CHAINSLIDER GUARD 02
46104066050
Unavailable
16
quick release rubber grommet
47106003160
Unavailable
17
Subframe cover left
A40006030000C1
Unavailable
18
Subframe cover right
A40006031000C1
Unavailable
19
Splash protection subframe
A20103002010
Unavailable
12
Air filter box cover left
A40006003000EB
Unavailable
13
Air filter box cover right
A40006004000EB
Unavailable
20
HH ISR collar screw M6x12-10.9
0900000601203
Unavailable
21
RUBBER SLEEVE D=12MM
41001052000
Unavailable
22
special screw M6x12x3
83008000012
Unavailable
