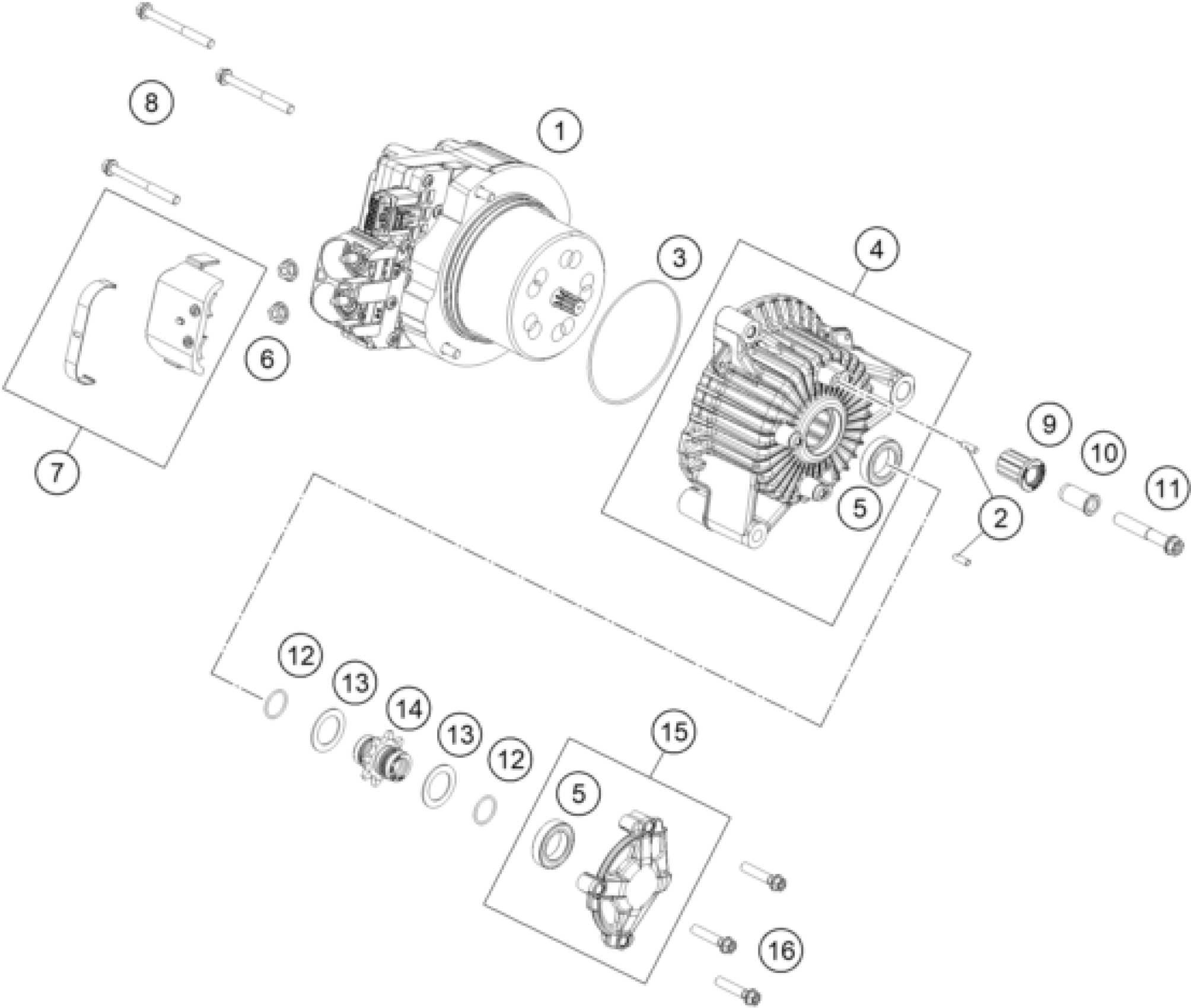

KTM SX-E 3 2023 ENGINE CASE Diagram

#

Description
Price

1

Electric motor Mini E

45445050100

Unavailable

2

Needle bearing NRB 4X11.8

0402041180

Unavailable

3

O-ring 89 x 2.7 FKM 70

07708902701

Unavailable

4

Housing cmpl.

45445003133

Unavailable

5

Grooved ball bearing 61804-2RS

0625068040

Unavailable

6

Hex.nut w.flange DIN6923-M6-10

06923060007

Unavailable

7

Protection cap, engine connect

45445050010

Unavailable

8

HH collar screw M6x60 TX30

0025060606

Unavailable

9

RUBBER SILENCER SUPPORT 05

61005013000

Unavailable

10

Sleeve silencer support

61005014000

Unavailable

11

HH collar screw M8x50 TX40

0025080506

Unavailable

12

O-ring 17X1.5

0770017015

Unavailable

13

Stop disc

45445021000

Unavailable

14

Pinion shaft assy

45445018018

Unavailable

15

Adjustment bush bridge cmpl.

45445040233

Unavailable

16

HH collar screw M6x30 TX30

0025060306

Unavailable
