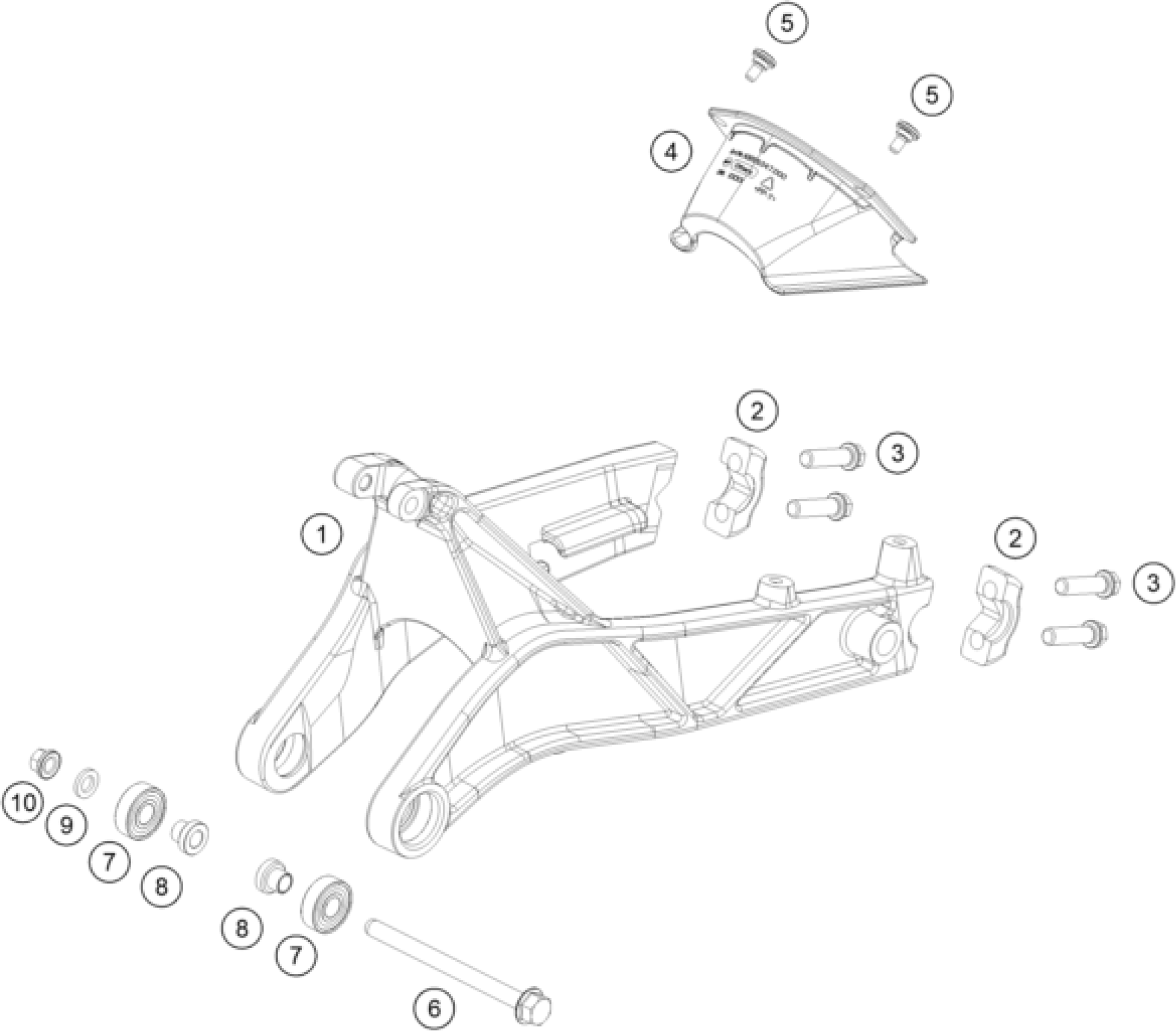

KTM SX-E 2 2024 SWING ARM Diagram

#

Description

Price

1

Swingarm

A9010403000001

Unavailable

2

Axle mount

A90104030007

Unavailable

3

HH COLLAR SCREW M8X30 TX40

0025080306S

Unavailable

4

Cable duct

A90111047000

Unavailable

5

special screw M5x12

69008021160

Unavailable

6

Hex. bolt EN 1665-M8x105-10.9

01665081056

Unavailable

7

deep groove ball bearing SKF 6

0625060002

Unavailable

8

Bushing 8.5x12x16

0800000901301

Unavailable

9

WASHER 8,3X14X2 07

61112006080

Unavailable

10

flanged nut M8 WS10

46030045000

Unavailable
