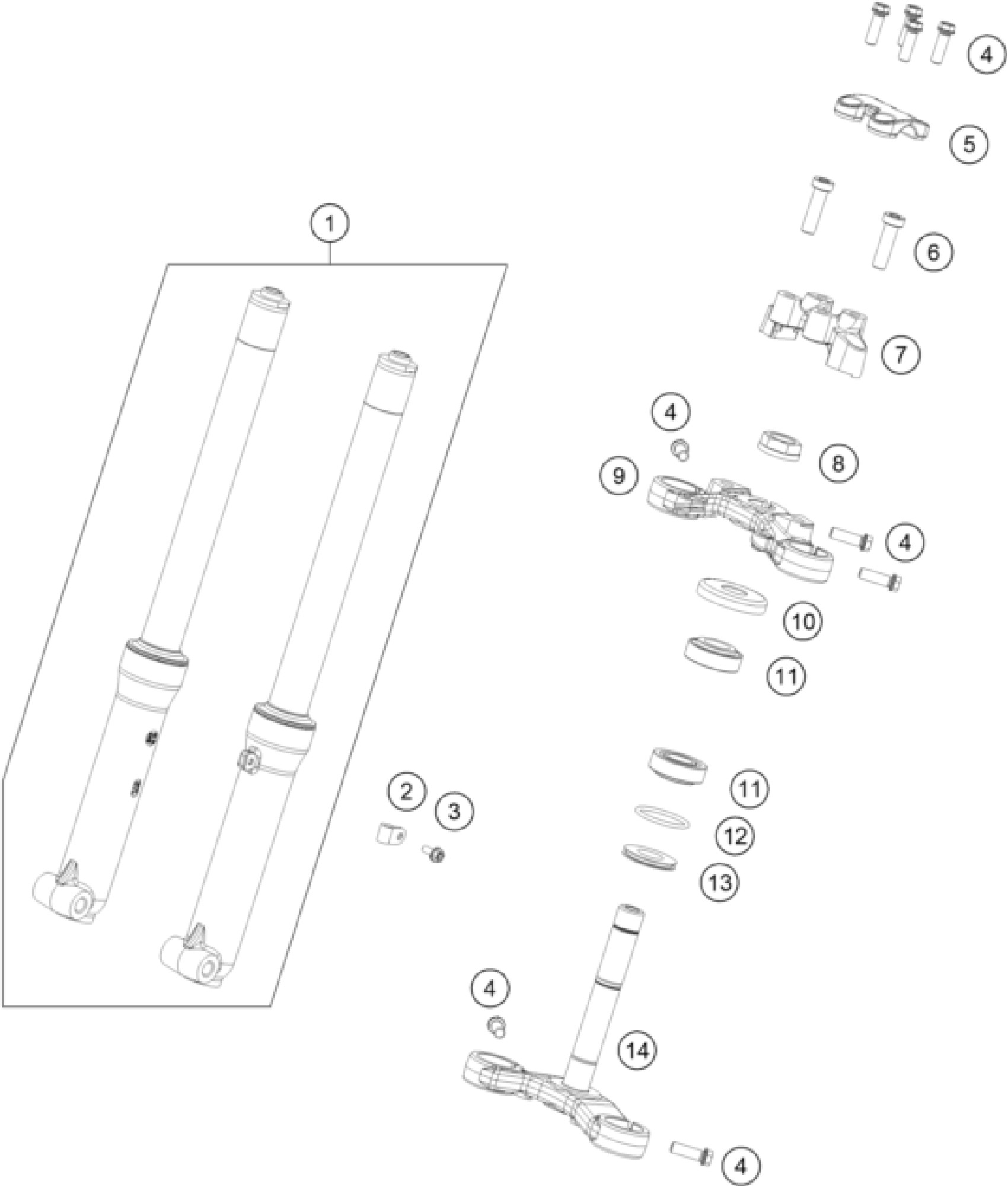

KTM SX-E 2 2024 FRONT FORK, TRIPLE CLAMP Diagram

#

Description
Price

1

Fork E2 cpl.

A90101000044

Unavailable

2

PVC-CLAMP 7,9 MM HEYCO 3355

57013070100

Unavailable

3

Hex collar screw M5x12 ISA30 S

0025050126S

Unavailable

4

HH collar screw M8x25

0025080256

Unavailable

5

Handlebar clamp D=22

A90101038000

Unavailable

6

AH-COLLAR SCREW M10X35 ISA45

0032100356S

Unavailable

7

Handlebar mount D=22

A90101039000

Unavailable

8

HH NUT M20X1,5 WS=27 RIGHT

59030029000

Unavailable

9

Top triple clamp X=15mm

A90101034015

Unavailable

10

COVERING CAP

49001086000

Unavailable

11

TAPERED ROLLER BEARING 32004X

49001081000

Unavailable

12

O-RING 36,00X3,00 NBR

0770360030

Unavailable

13

PROTECTION RING 20,1X39X5

46001086000

Unavailable

14

Bottom triple clamp cmpl. x=15

A90101032015

Unavailable
