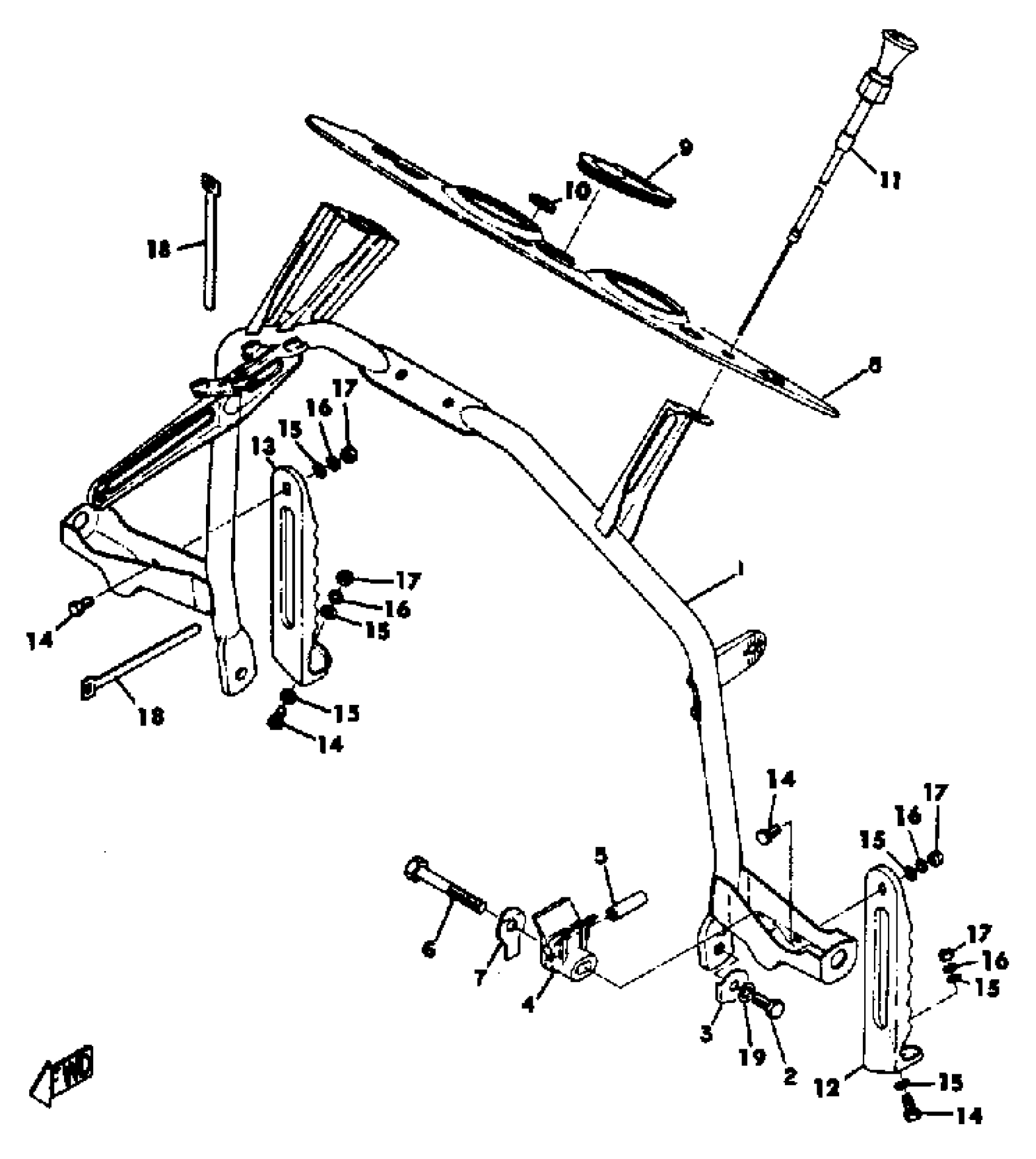

Find the part on the Steering Gate diagram for your 1971 Yamaha SW433E, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1971 Yamaha SW433E Steering Gate Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GATE, STEERING

(811-23871-00-00)

1
Out of stock

2

BOLT, HEXAGON

97027-08018-00

—

$1.62

In stock

3

WASHER, LOCK 2

(861-23895-00-00)

1
Out of stock

4

CLAMP

(90464-09005-00)

1
Out of stock

5

STOPPER

(810-77188-00-00)

1
Out of stock

6

BOLT (810-77537-00)

90101-08039-00

1
Out of stock

7

WASHER, LOCK

(90215-08039-00)

1
Out of stock

8

PANEL, INSTRUMENT

(819-77711-00-00)

1
Out of stock

9

GROMMET

(811-77746-00-00)

1
Out of stock

10

GROMMET

(102-82598-00-00)

1
Out of stock

11

CABLE, STARTER 1

811-26331-00-00

1
Out of stock

12

FOOTREST 1

(810-27411-00-00)

1
Out of stock

13

FOOTREST 2

(810-27421-00-00)

1
Out of stock

14

BOLT (661)

97013-06012-00

1

$4.71

In stock

15

YBS66-6 WASHER, PLAIN

92990-06200-00

1

$0.78

In stock

16

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

17

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

18

BAND, SWITCH CORD

437-83936-11-00

—

$3.20

In stock

19

WASHER, PLATE (1E7)

90201-08624-00

—
Out of stock
