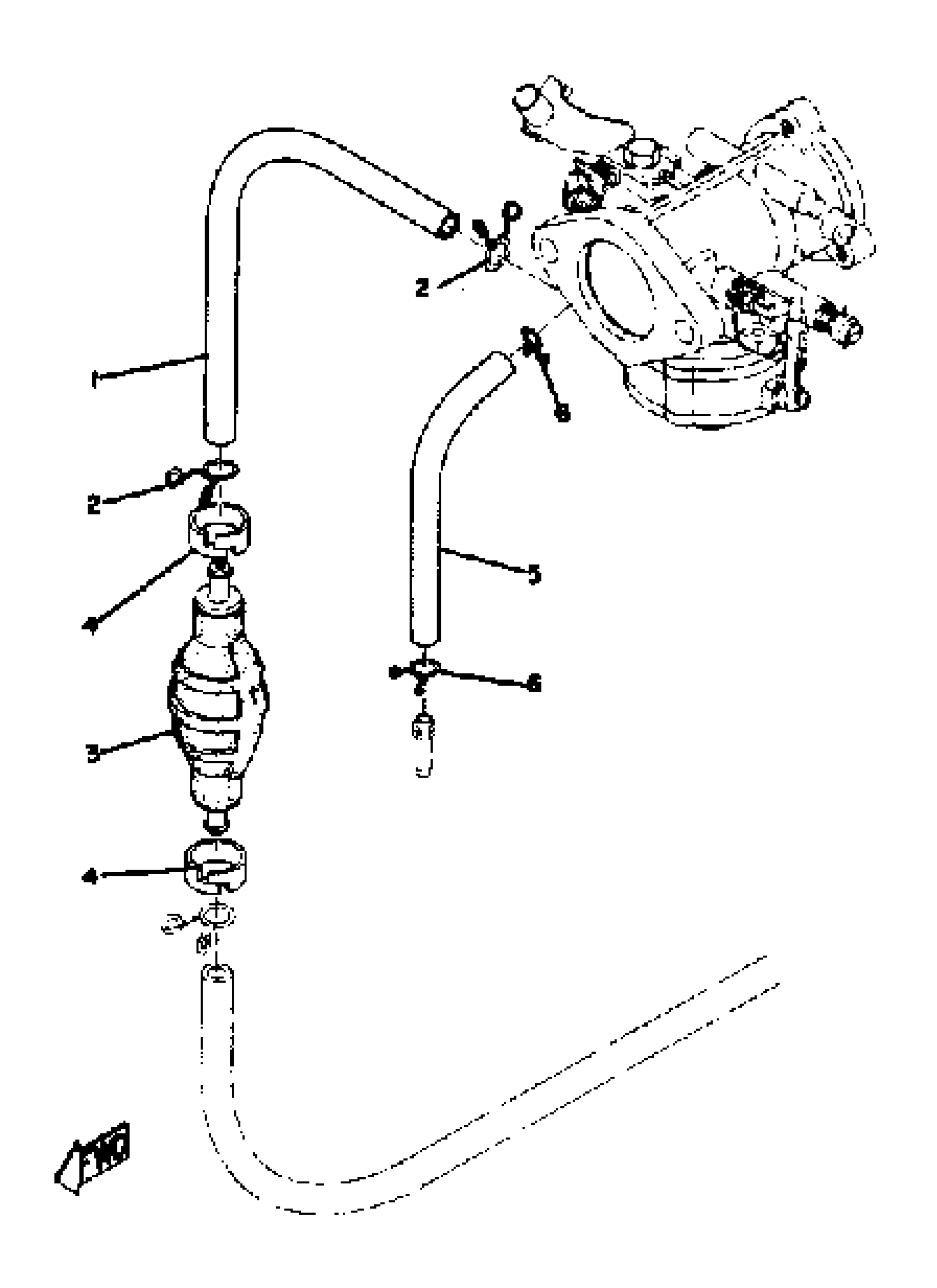

Find the part on the Piping diagram for your 1973 Yamaha SW433C, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1973 Yamaha SW433C Piping Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

AIRSHROUD, CYLINDER 1

99999-01693-00

1
Out of stock

2

AIR SHROUD, CYLINDER 2

8R4-12652-02-00

—

$62.77

In stock

3

SCREW, PAN HEAD(6B0)

97885-05016-00

1

$3.96

In stock

4

WASHER, PLAIN (646)

92990-05600-00

1
Out of stock

5

SCREW, PAN HEAD

98580-05020-00

1

$1.39

In stock

6

CLIP

90467-090A2-00

1

$2.51

In stock
