1973 Yamaha SW433C Fuel Tank Diagram

← All diagrams

Find the part on the Fuel Tank diagram for your 1973 Yamaha SW433C, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

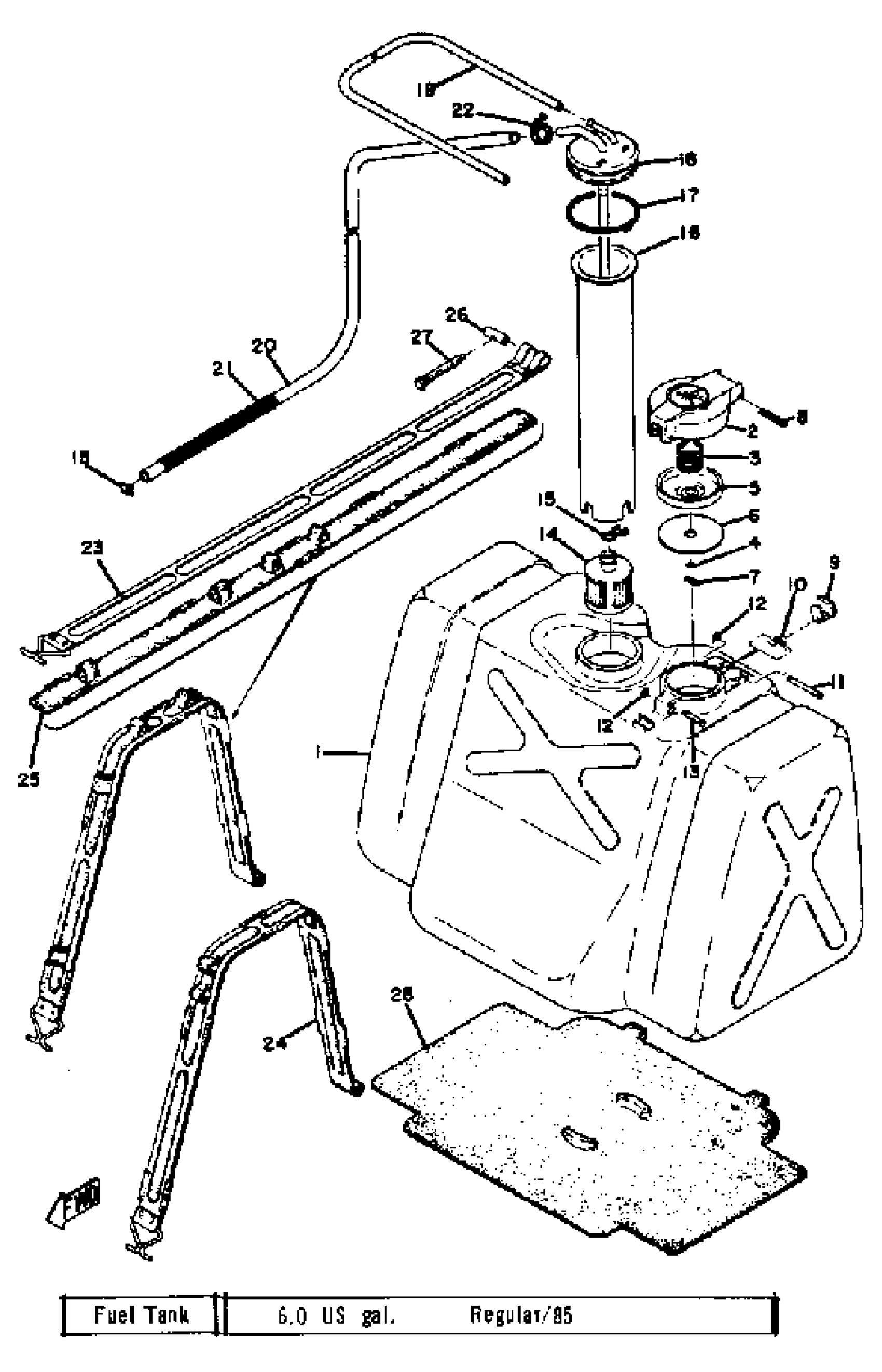

1973 Yamaha SW433C Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FUEL TANK (838-24111-01)

838-24111-02-00

1
Out of stock

2

BODY, CAP

8A5-24611-00-00

1
Out of stock

3

SPRING, CAP

90501-20130-00

1

$6.80

In stock

4

O-RING (256)

93210-04122-00

1
Out of stock

5

DISK,CAP

813-24613-01-00

1

$18.71

In stock

6

GASKET, CAP

256-24612-00-00

1
Out of stock

7

PIN, SPRING

91690-30016-00

1

$5.88

In stock

8

PIN, SPRING

91609-25032-00

1

$1.83

In stock

9

HOOK

83M-24628-00-00

1

$19.68

In stock

10

SPRING, TORSION (813-24637-00)

90508-08003-00

1
Out of stock

11

PIN (813)

90249-03017-00

1

$2.25

In stock

12

CIRCLIP (604)

93430-02001-00

1

$6.69

In stock

13

PIN, SPEC''L SHAPE

90249-03016-00

1
Out of stock

14

FILTER ASSY

8H5-24560-00-00

1

$11.47

In stock

15

CLIP (8J7)

90467-11009-00

1

$7.55

In stock

16

PIPE, SUCTION 2

838-24336-00-00

1
Out of stock

17

SPRING, TENSION (8R4)

90506-06261-00

—

$6.94

In stock

18

PIPE, SUCTION 1

838-24335-00-00

1
Out of stock

19

HOSE

90446-09015-00

1
Out of stock

20

PIPE, FUEL 1

(826-24311-00-00)

1
Out of stock

21

—

$3.98

In stock

22

CLIP(3BM)

90467-10135-00

—

$6.91

In stock

23

BAND, TNK FITTING 1

838-24173-00-00

1
Out of stock

24

DAMPER, LOCATING 3

(838-24183-00-00)

1
Out of stock

25

DAMPER, LOCATING 4

(838-24184-00-00)

1
Out of stock

26

CLAMP

806-24135-00-00

—

$3.20

In stock

27

SCREW, SPEC''L SHAPE (821-24176-00)

90149-05006-00

1
Out of stock

28

DAMPER, LOCATING 1

(838-24181-00-00)

1
Out of stock
