1972 Yamaha SW433B Engine Bracket Diagram

← All diagrams

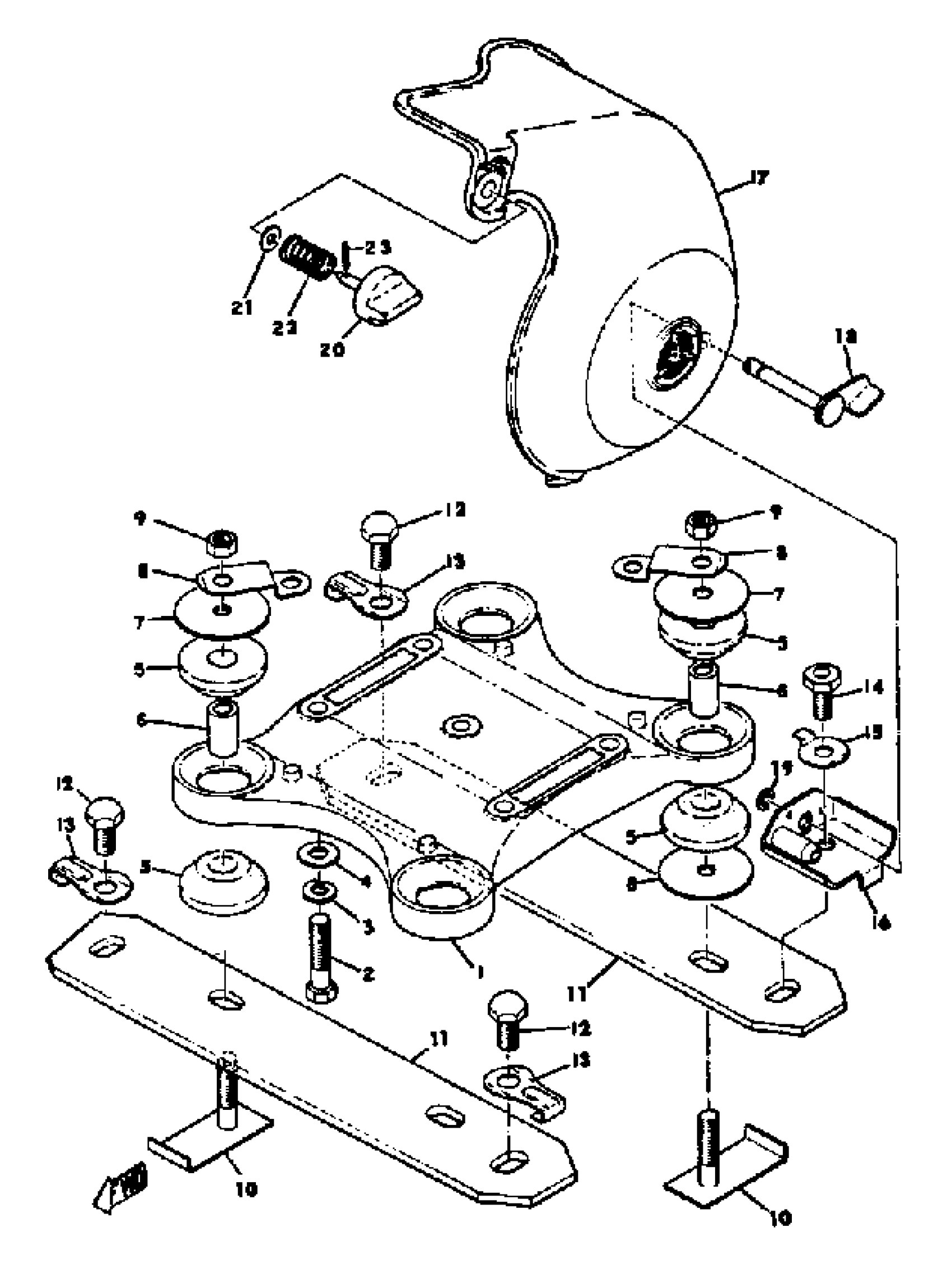

Find the part on the Engine Bracket diagram for your 1972 Yamaha SW433B, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1972 Yamaha SW433B Engine Bracket Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BRACKET, ENGINE 1

(810-21411-00-00)

1
Out of stock

2

BOLT,HEXAGON(676)

97013-10050-00

1
Out of stock

3

YBS67-10 WASHER, SPRING

92990-10100-00

1

$2.43

In stock

4

1

$3.00

In stock

5

DAMPER, ENG MOUNT 1

807-15316-00-00

1
Out of stock

6

SPACER

90560-10020-00

1
Out of stock

7

WASHER, LOCK

(807-21491-00-00)

1
Out of stock

8

GASKET, BLIND PLG 2

(810-15176-00-00)

1
Out of stock

9

NUT (682)

95380-10700-00

1

$5.78

In stock

10

BOLT, ENG MNTNG 2

821-21482-00-00

1
Out of stock

11

BRACKET, ENGINE 2

(826-21419-00-00)

1
Out of stock

12

BOLT, DOME HEAD

(90106-10015-00)

1
Out of stock

13

WASHER, CONICAL SPR

90208-10013-00

1
Out of stock

14

BOLT

(90101-10057-00)

1
Out of stock

15

WASHER 823214910000

90208-10012-00

1

$13.20

In stock

15

WASHER, LOCK

90215-10073-00

1
Out of stock

16

BRACKET 1

(821-77315-00-00)

1
Out of stock

17

GUARD, DRIVE

(810-77311-01-00)

1
Out of stock

18

ARM, FITTING

806-77314-00-00

1
Out of stock

19

CIRCLIP(53L)

99001-06600-00

—

$0.70

In stock

20

KNOB

(806-77324-00-00)

1
Out of stock

21

WASHER, PLATE

90201-06095-00

—

$6.31

In stock

22

SPRING 1

806-77325-00-00

1
Out of stock

23

PIN, SPRING

91690-25016-00

—
Out of stock
