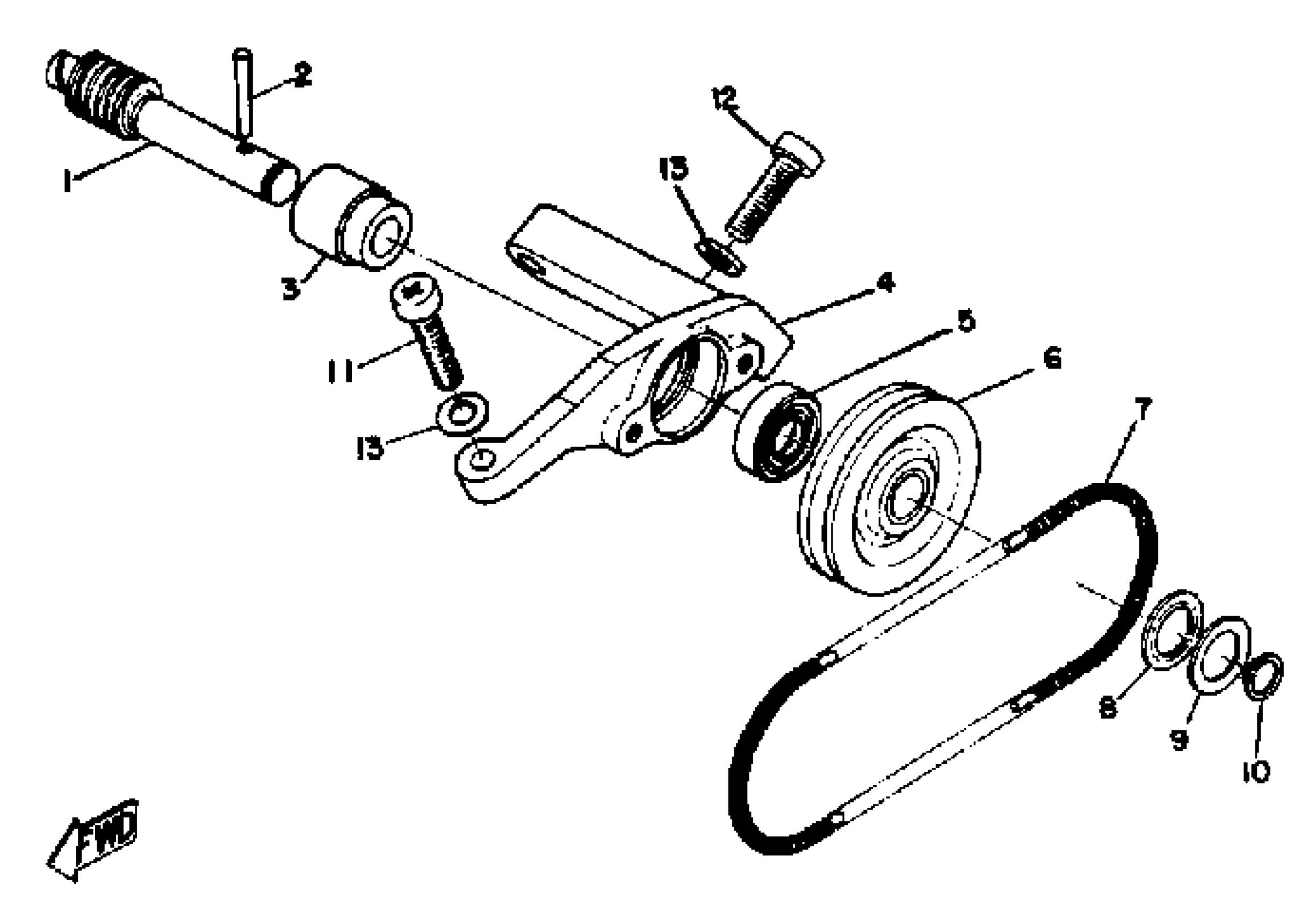

Find the part on the Pump Gear Unit diagram for your 1970 Yamaha SW396, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1970 Yamaha SW396 Pump Gear Unit Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHAFT, WORM

(802-13175-00-00)

1
Out of stock

2

PIN,DOWEL (137)

93603-22028-00

1
Out of stock

3

METAL, WORM SHAFT OUTER

137-13176-00-00

—
Out of stock

4

BRACKET, PUMP

(807-13199-00-00)

1
Out of stock

5

OIL SEAL (10X22X7-137)

93101-10002-00

1

$6.68

In stock

6

GEAR, PUMP DRIVE

(810-13178-00-00)

1
Out of stock

7

BELT (810-13189-00)

808-13189-00-00

1
Out of stock

8

WASHER, WAVE (137)

90206-11016-00

—

$12.72

In stock

9

PLATE, CAM THRUST

137-13148-00-00

—

$3.28

In stock

10

CIRCLIP(10W)

99009-10400-00

1

$3.91

In stock

11

SCREW PAN HEAD

98580-06020-00

1

$5.10

In stock

12

SCREW, PAN HEAD (76T)

98517-06025-00

1

$3.12

In stock

13

WASHER, SPRING

92995-06100-00

1

$2.99

In stock
