1970 Yamaha SW396 Piping Diagram

← All diagrams

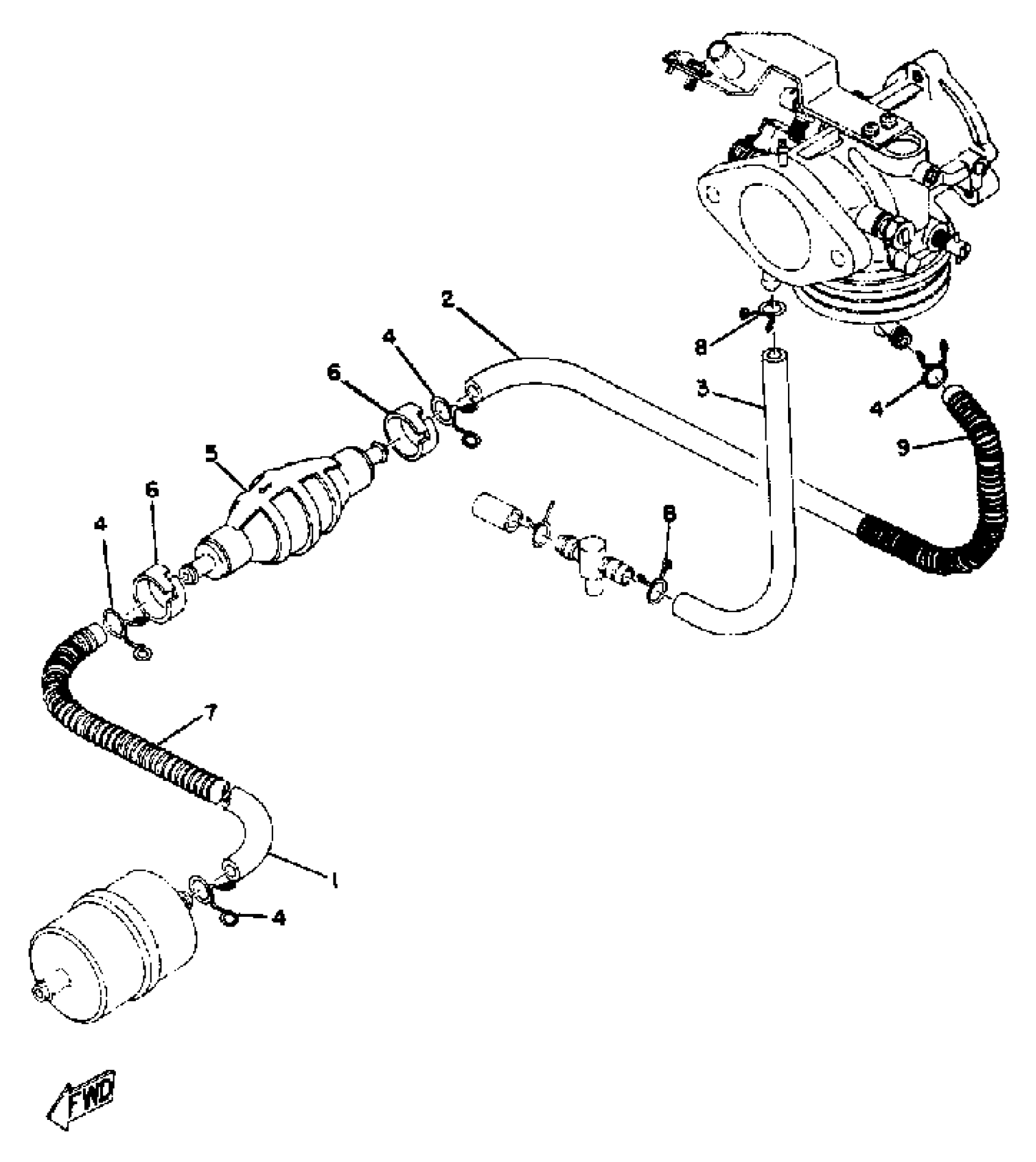

Find the part on the Piping diagram for your 1970 Yamaha SW396, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1970 Yamaha SW396 Piping Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TUBE, FLEXIBLE VINYL(86X)

91A20-07100-00

1

$19.82

In stock

2

HOSE

(90446-11039-00)

1
Out of stock

3

HOSE (L450)

90445-10144-00

1

$4.52

In stock

4

CLIP (8J7)

90467-11009-00

1

$7.55

In stock

5

PRIMER PUMP ASSEMBLY

810-24360-00-00

1
Out of stock

6

BAND

(601-24353-00-00)

1
Out of stock

7

PROTECTOR, PIPE

(810-24328-00-00)

1
Out of stock

8

CLIP

90467-090A2-00

1

$2.51

In stock

9

PIPE 11

(811-24322-00-00)

1
Out of stock
