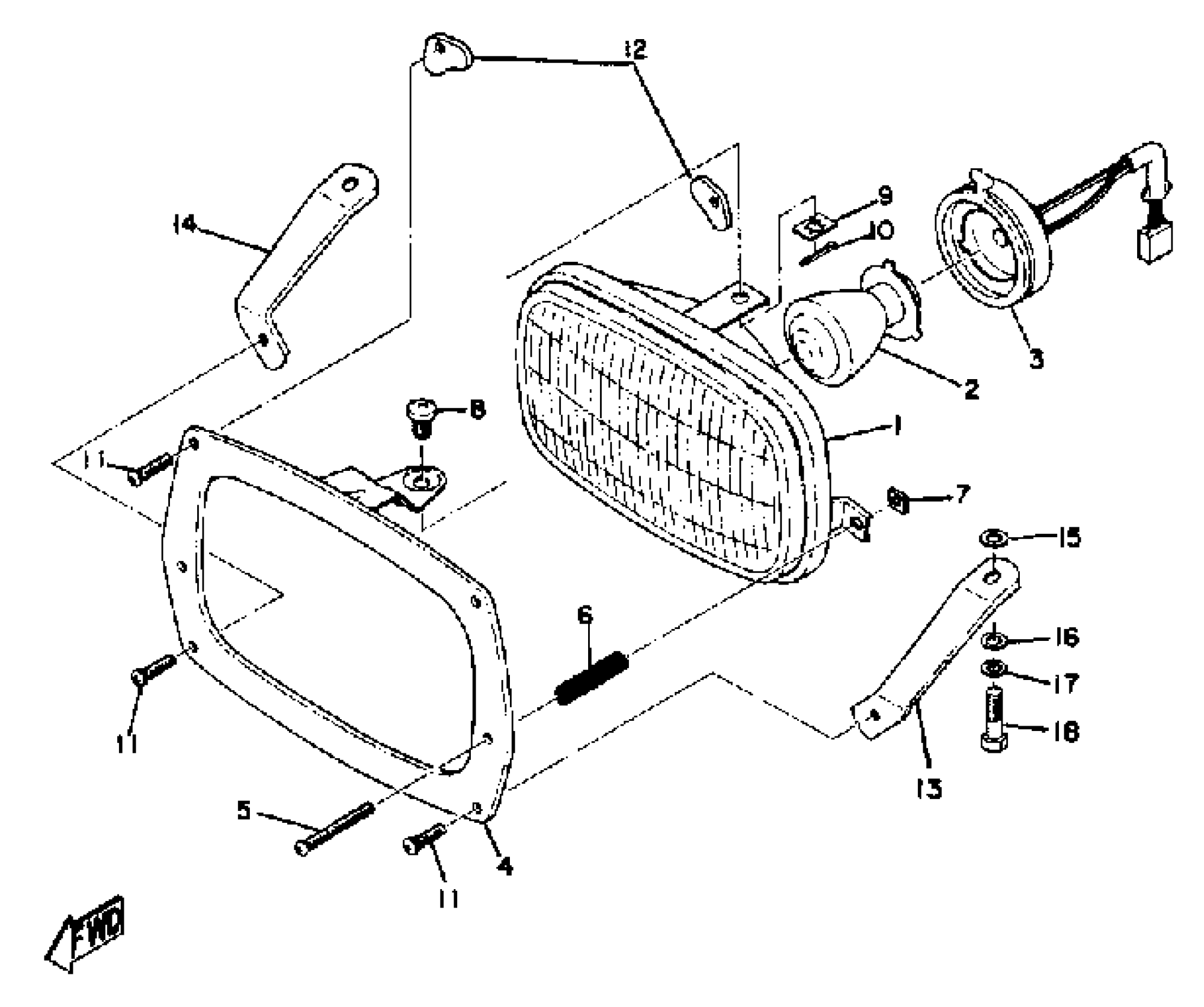

Find the part on the Head Lamp diagram for your 1970 Yamaha SW396, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1970 Yamaha SW396 Head Lamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LENS ASSEMBLY

(811-84320-00-00)

1
Out of stock

2

. BULB, HL12V35/35W

183-84314-60-00

1
Out of stock

3

SOCKET

(811-84312-00-00)

1
Out of stock

4

RIM, HEADLIGHT

(811-84315-00-00)

1
Out of stock

5

SCREW, RIM ADJUSTING

(807-84331-00-00)

1
Out of stock

6

SPRING, SCREW

(807-84332-00-00)

1
Out of stock

7

NUT, ADJUSTING

(807-84334-00-00)

1
Out of stock

8

COLLAR, BODY FTNG

(811-84338-00-00)

1
Out of stock

9

NUT

(807-84326-00-00)

1
Out of stock

10

CLAMP, CORD

(807-84351-00-00)

1
Out of stock

11

SCREW, OVAL HEAD

98603-04015-00

1
Out of stock

12

NUT, BODY FITTING

(811-84316-00-00)

1
Out of stock

13

STAY, HEADLIGHT 1

(807-84318-00-00)

1
Out of stock

14

STAY, HEADLIGHT 2

(807-84319-00-00)

1
Out of stock

15

WASHER, PLAIN

(807-84344-00-00)

1
Out of stock

16

WASHER, PLAIN LARGE

92907-05200-00

—
Out of stock

17

WASHER(3SX)

92907-05100-00

—

$6.18

In stock

18

BOLT(3JK)

97027-05020-00

—

$2.48

In stock
