1970 Yamaha SW396 Fuel Tank Diagram

← All diagrams

Find the part on the Fuel Tank diagram for your 1970 Yamaha SW396, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

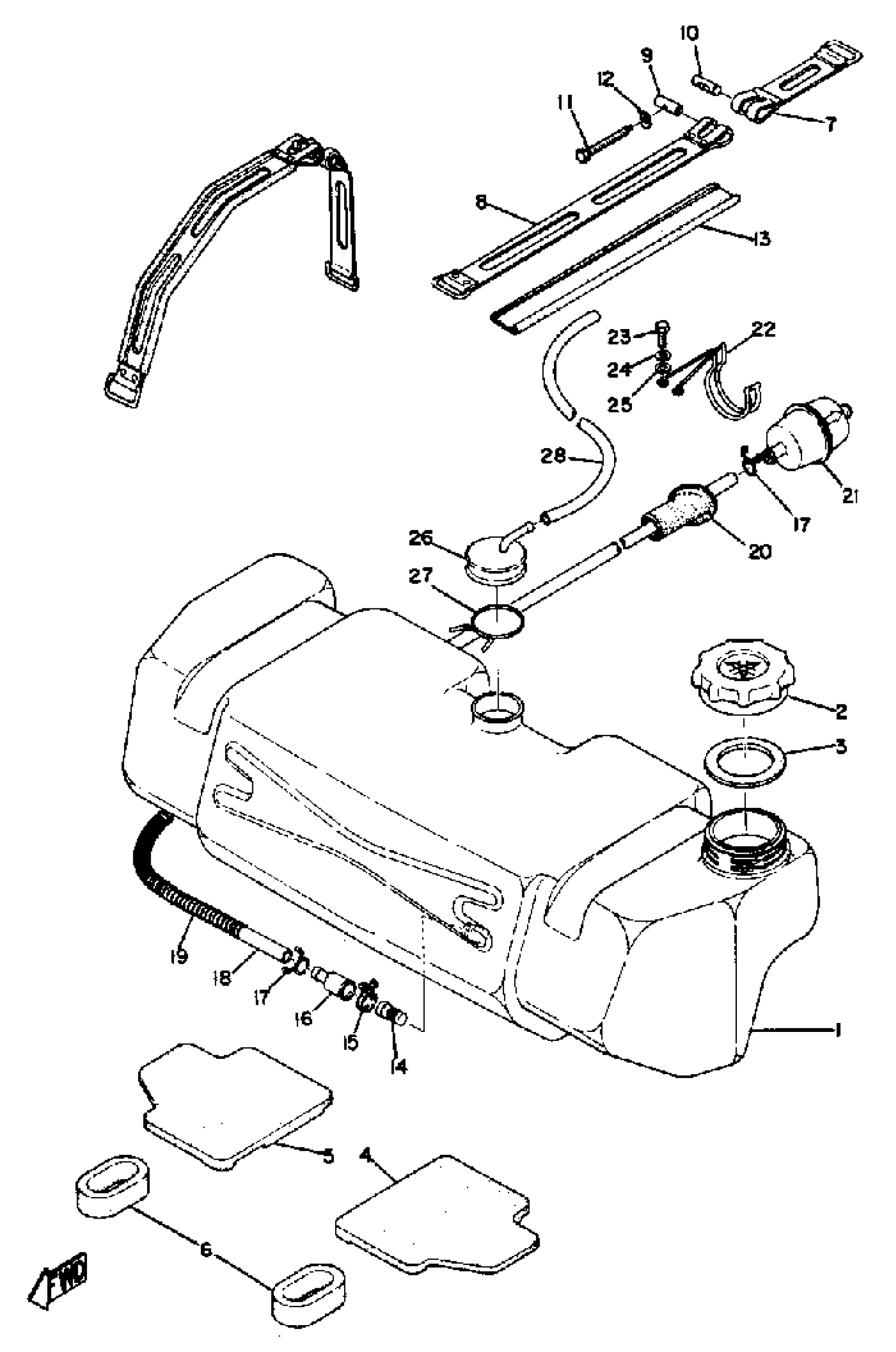

1970 Yamaha SW396 Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FUEL TANK

(811-24111-00-00)

1
Out of stock

1

CLIP (8L2)

90467-08017-00

1

$7.51

In stock

2

BODY, CAP

J10-24611-00-00

1
Out of stock

3

GASKET, CAP

(806-24612-00-00)

1
Out of stock

4

DAMPER, LOCATING 1

(811-24181-00-00)

1
Out of stock

5

DAMPER, LOCATING 2

(811-24182-00-00)

1
Out of stock

6

DAMPER, LOCATING 4

(807-24184-00-00)

1
Out of stock

7

BAND, TNK FITTING 1

810-24173-00-00

1
Out of stock

8

BAND, TNK FITTING 2

(811-24199-00-00)

1
Out of stock

9

CLAMP

806-24135-00-00

—

$3.20

In stock

10

NUT, SPEC''L SHAPE (806-24146-00)

90179-05030-00

1
Out of stock

11

SCREW, HEXAGON

(90153-05002-00)

1
Out of stock

12

WASHER, LOCK

(90215-05058-00)

1
Out of stock

13

DAMPER, LOCATING 3

(807-24183-00-00)

1
Out of stock

14

NET, FILTER 1

(810-24514-00-00)

1
Out of stock

15

CLIP, PIPE 4

810-24359-00-00

1
Out of stock

16

PIPE, SUCTION 1

807-24335-00-00

1
Out of stock

17

CLIP (8J7)

90467-11009-00

—

$7.55

In stock

18

PIPE 4

(806-24314-00-00)

1
Out of stock

19

PROTECTOR, PIPE

(810-24326-00-00)

1
Out of stock

20

PROTECTOR, PIPE

(810-24327-00-00)

1
Out of stock

21

FILTER ASSY

1FK-24560-10-00

—

$28.51

In stock

22

HOLDER, FILTER

(811-24558-00-00)

1
Out of stock

23

BOLT, HEXAGON

97013-05010-00

—

$0.85

In stock

24

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

25

. WASHER, PLAIN

92990-05200-00

1

$5.08

In stock

26

BODY, CAP

810-24644-00-00

1
Out of stock

27

CLIP, PIPE 3

(810-24358-00-00)

1
Out of stock

28

HOSE

90446-09015-00

1
Out of stock
