1970 Yamaha SW396 Bumper Diagram

← All diagrams

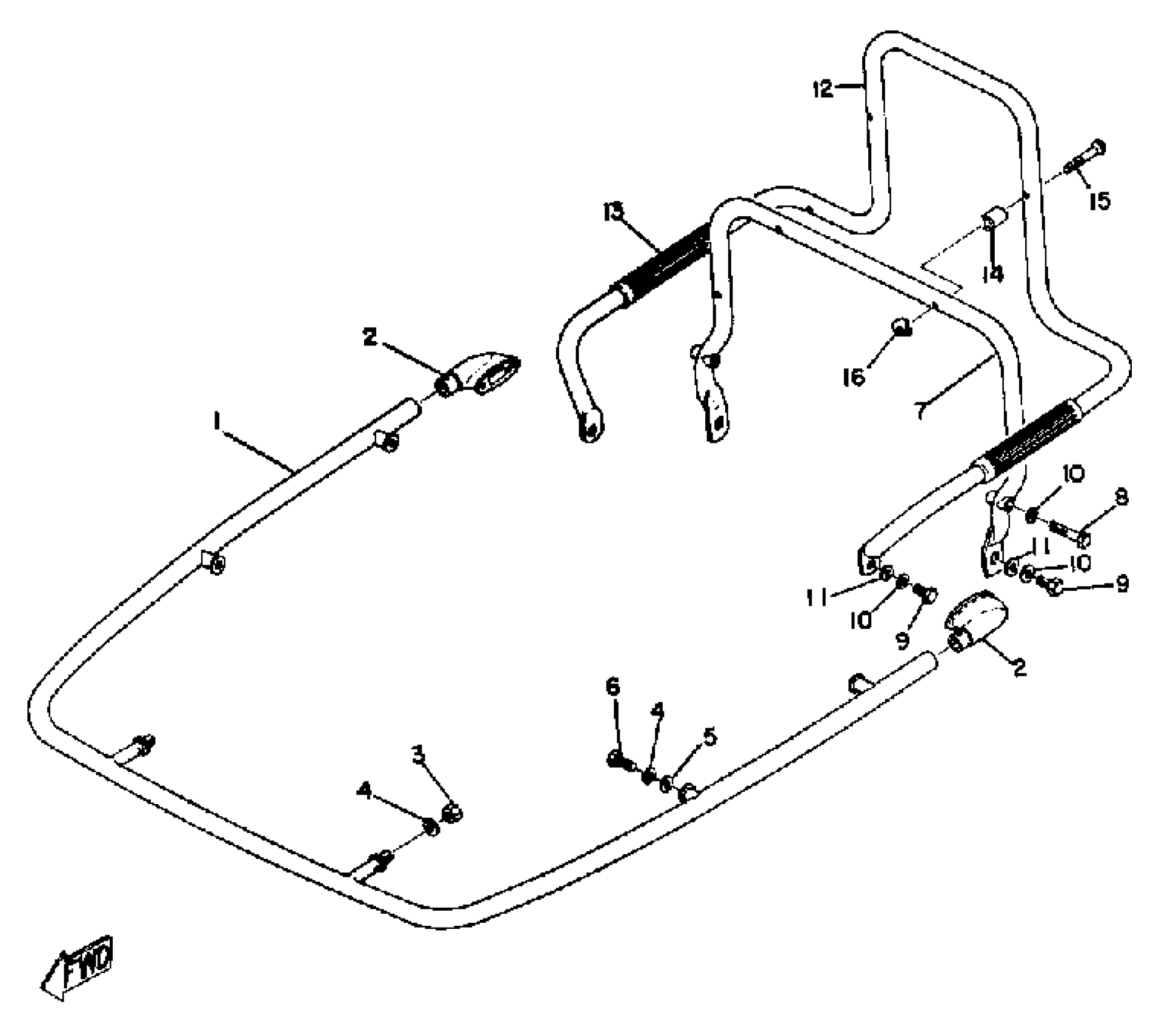

Find the part on the Bumper diagram for your 1970 Yamaha SW396, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1970 Yamaha SW396 Bumper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT BUMPER

(807-77510-00-00)

1
Out of stock

2

END, BUMPER

(806-77523-00-00)

1
Out of stock

3

NUT(6L2)

95333-08600-00

1

$3.20

In stock

4

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

5

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

6

BOLT(JA9)

90101-08691-00

1

$4.65

In stock

7

BUMPER, REAR 1

(807-77541-00-00)

1
Out of stock

8

BOLT

97013-08045-00

—
Out of stock

9

BOLT(JA9)

90101-08691-00

1

$4.65

In stock

10

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

11

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

12

GRIP, ASSIST 1

(807-77571-00-00)

1
Out of stock

13

COVER, ASSIST GRIP

(807-77575-00-00)

1
Out of stock

14

BUSH, RUBBER 1

(806-77515-00-00)

1
Out of stock

15

SCREW

92601-06050-00

1
Out of stock

16

NUT, SPECIAL

806-77573-00-00

1
Out of stock
