1990 Yamaha Snoscoot (SV80P) Electrical 1 Diagram

← All diagrams

Find the part on the Electrical 1 diagram for your 1990 Yamaha Snoscoot (SV80P), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

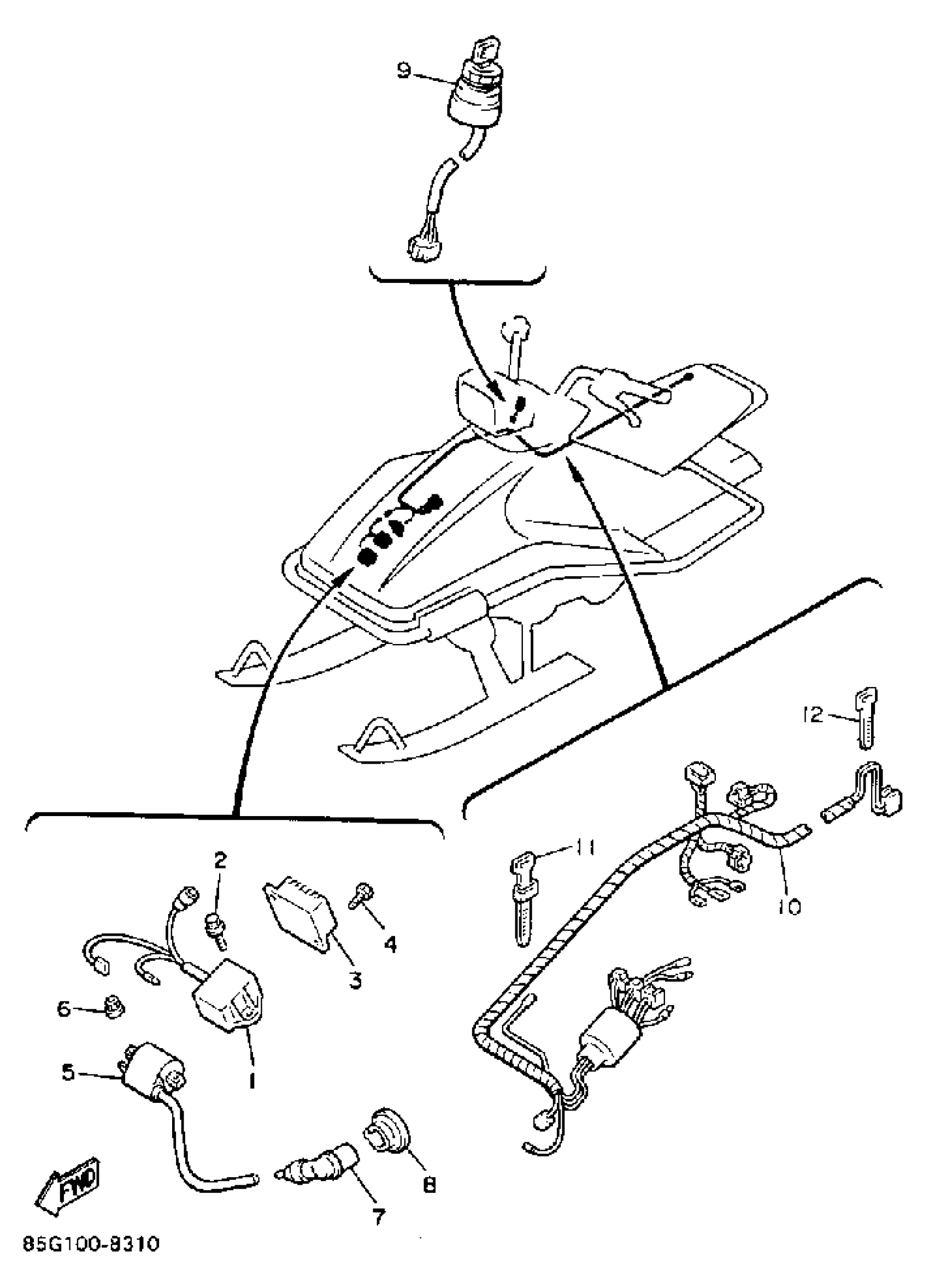

1990 Yamaha Snoscoot (SV80P) Electrical 1 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CDI UNIT ASSEMBLY

85G-85540-M0-00

1
Out of stock

2

BOLT, FLANGE

95817-06016-00

1

$1.49

In stock

3

RECT/REG ASSEMBLY

85G-81960-60-00

1
Out of stock

4

BOLT(4GV)

97017-05012-00

1

$6.17

In stock

5

IGNITION COIL ASSY

3KJ-82310-13-00

1
Out of stock

6

NUT, FLANGE(7NB)

95780-06500-00

1

$1.91

In stock

7

PLUG CAP ASSY

85G-82370-20-00

1

$28.09

In stock

8

SEAL, PLUG CAP

5G3-82372-00-00

—

$6.32

In stock

9

MAIN SWITCH ASSY

8K4-82510-20-00

1
Out of stock

10

WIRE HARNESS ASSEMBLY

85G-82590-20-00

1
Out of stock

11

BAND, SWITCH CORD

437-83936-11-00

1

$3.20

In stock

12

BAND, SWITCH CORD

437-83936-01-00

1

$4.63

In stock
← Steering Electrical 2 →
