1988 Yamaha Snoscoot (SV80M) Taillight Diagram

← All diagrams

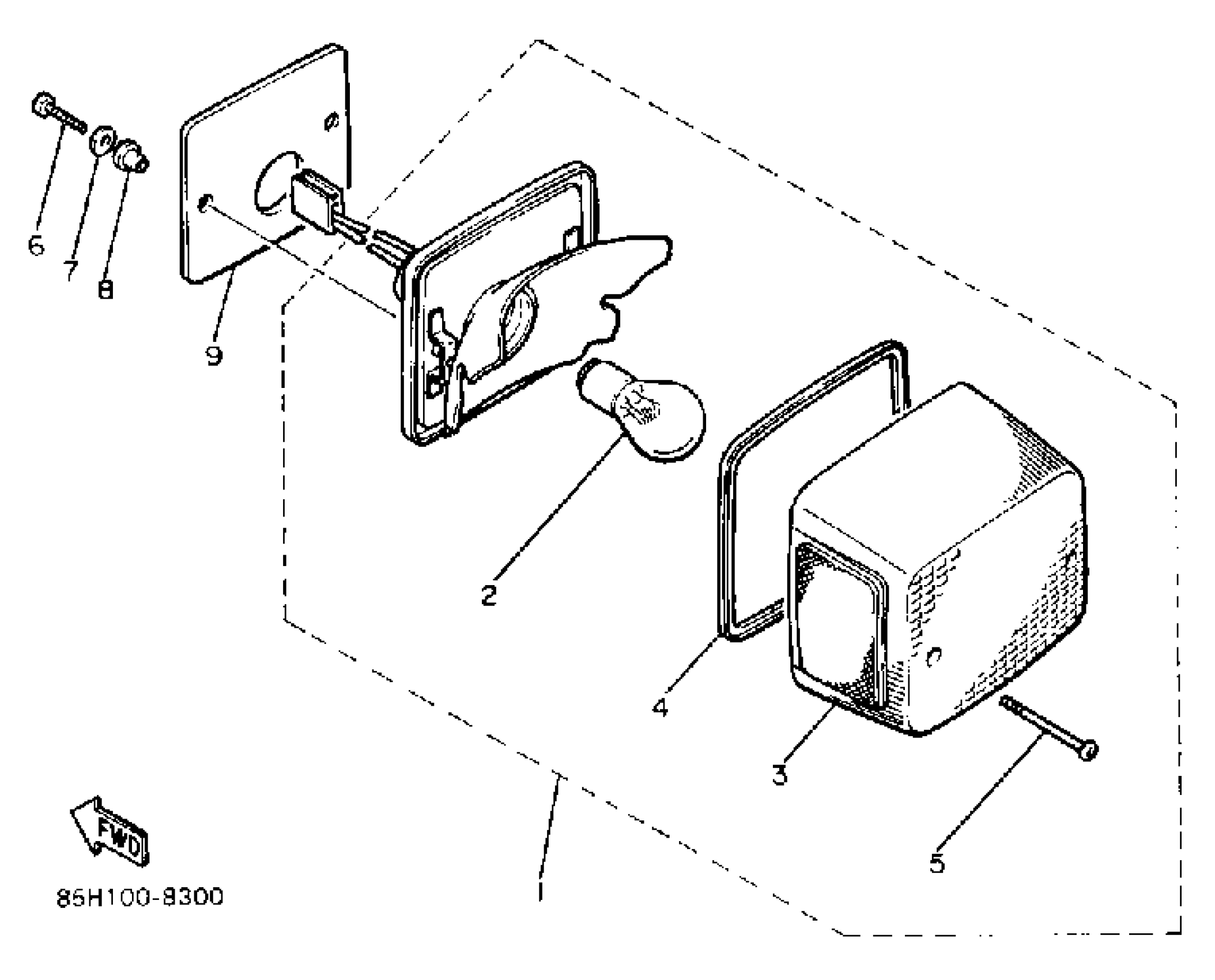

Find the part on the Taillight diagram for your 1988 Yamaha Snoscoot (SV80M), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1988 Yamaha Snoscoot (SV80M) Taillight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TAILLIGHT UNIT ASSY

85G-84710-00-00

—
Out of stock

2

BULB(12V32/3CP)1157

137-84714-61-XX

1
Out of stock

3

TAILLIGHT UNIT ASSY

85G-84710-00-00

—
Out of stock

4

GASKET, TAIL LENS

1M1-84523-60-00

1
Out of stock

5

SCREW, ADJUSTING

5BF-8433E-00-00

1
Out of stock

6

BOLT 337847520000

90109-06005-00

1
Out of stock

7

WASHER 6154275100

90201-08103-00

—
Out of stock

8

DAMPER

1M1-84527-60-00

1
Out of stock

9

SEAT, BASE

1M1-84512-60-00

—
Out of stock
