1988 Yamaha Snoscoot (SV80M) Engine Bracket Diagram

← All diagrams

Find the part on the Engine Bracket diagram for your 1988 Yamaha Snoscoot (SV80M), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

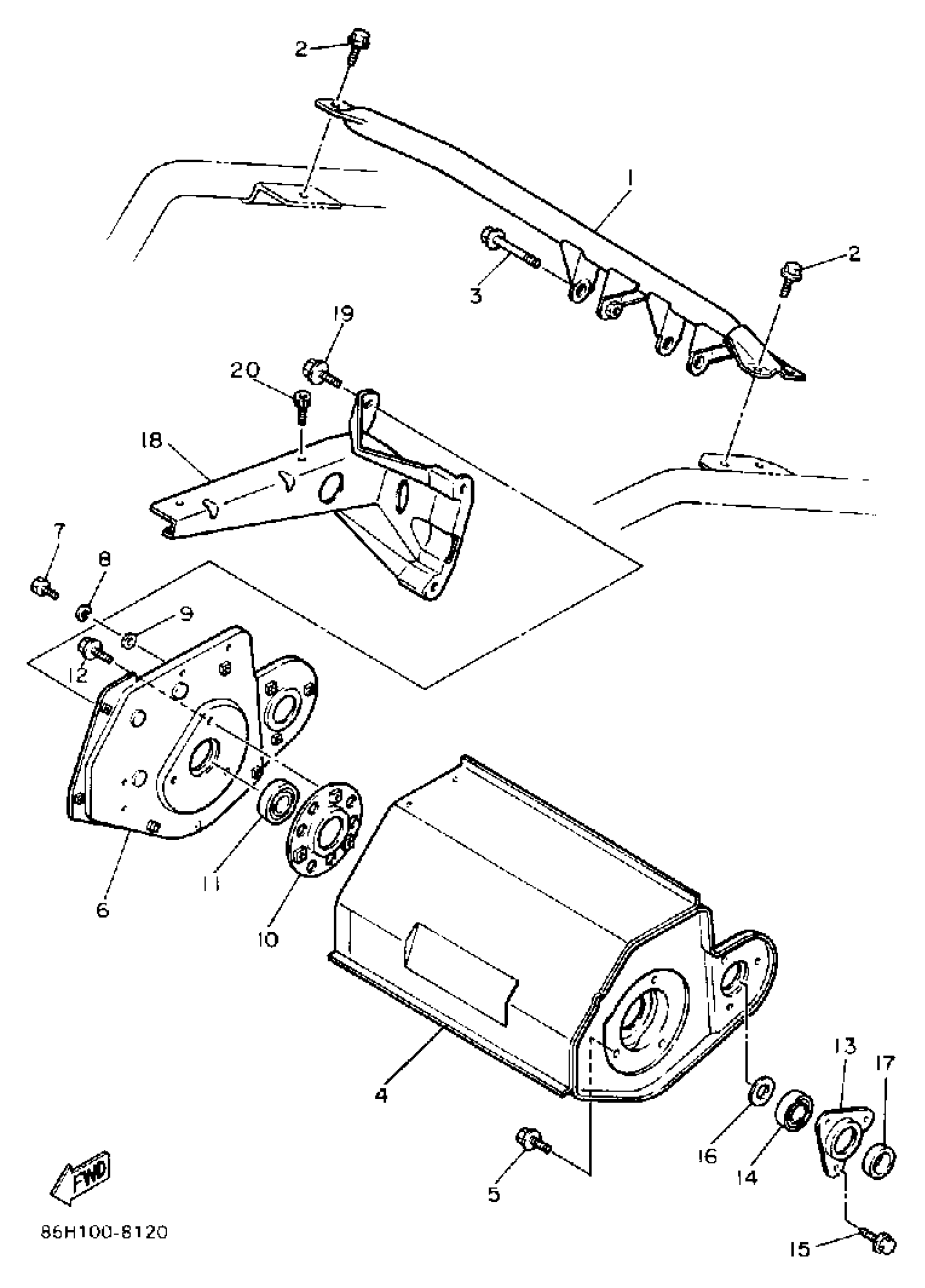

1988 Yamaha Snoscoot (SV80M) Engine Bracket Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BRACKET, ENGINE 1

85G-21411-00-00

1
Out of stock

2

BOLT, FLANGE

95817-08012-00

1

$3.98

In stock

3

BOLT, FLANGE

95817-08055-00

1

$2.82

In stock

4

BRACKET, ENGINE 2

85G-21419-00-00

1
Out of stock

5

BOLT, FLANGE

95817-08012-00

1

$3.98

In stock

6

BRACKET, ENGINE 3

85G-21429-00-00

1
Out of stock

7

BOLT, HEXAGON

97017-06012-00

1

$2.62

In stock

8

WASHER, SPRING

92907-06100-00

1
Out of stock

9

WASHER(6TA)

92907-06600-00

1

$0.78

In stock

10

HOUSING, FRONT AXLE

85G-47551-00-00

1
Out of stock

11

BEARING(8AB)

93306-00444-00

1

$35.70

In stock

12

BOLT, FLANGE

95817-08012-00

1

$3.98

In stock

13

HOUSING, SEC SHAFT

85G-47561-00-00

1
Out of stock

14

BEARING(85G)

93306-00316-00

1

$33.19

In stock

15

BOLT, FLANGE

95817-08012-00

1

$3.98

In stock

16

WASHER

90201-17256-00

1
Out of stock

17

COLLAR

90387-17009-00

—
Out of stock

18

BRACKET, MUFFLER 1

85G-21435-01-00

1
Out of stock

19

BOLT, FLANGE(JN5)

95817-08016-00

—

$4.12

In stock

20

BOLT, SOCKET

91317-08016-00

—

$6.17

In stock
