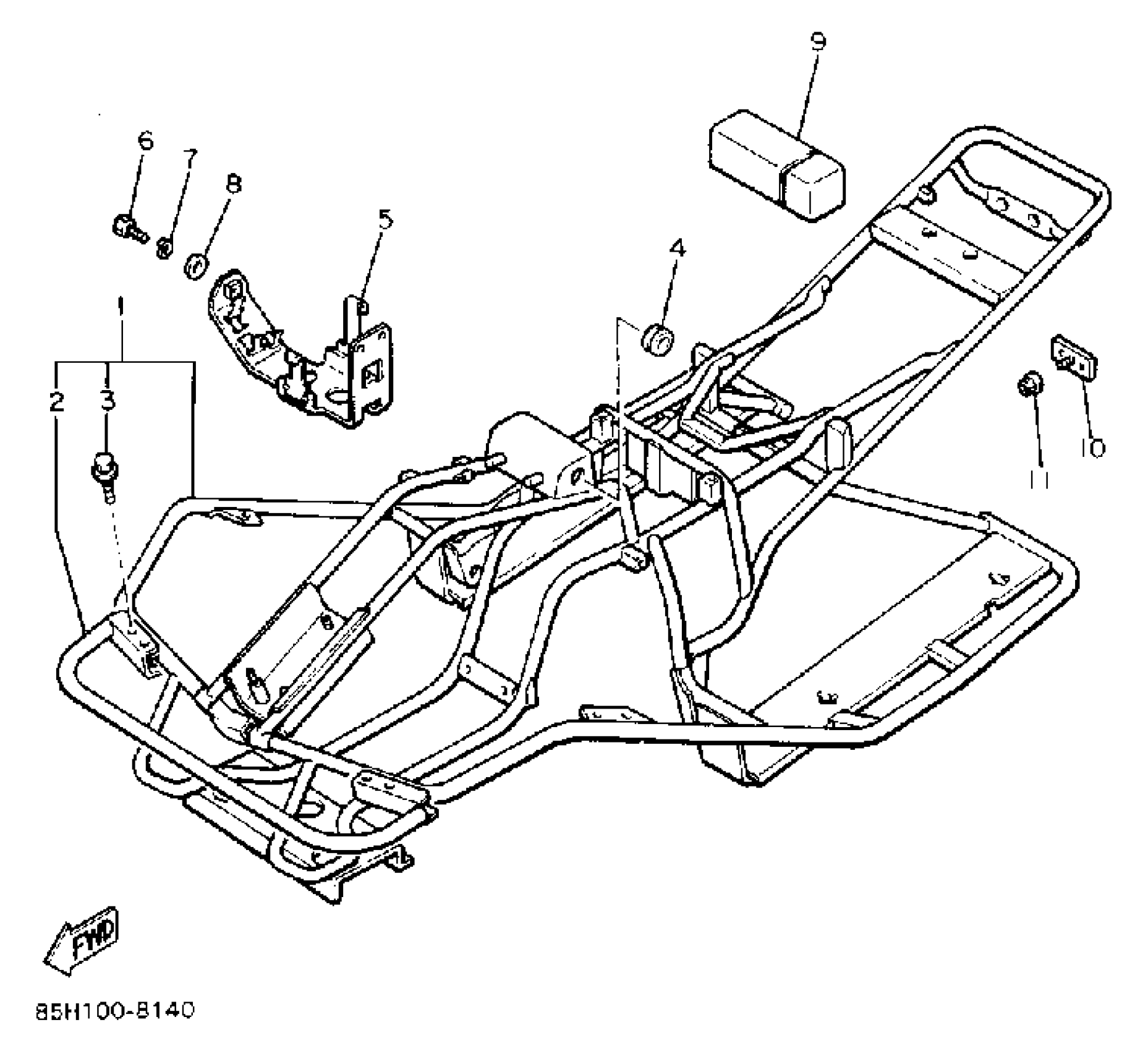

Yamaha SV80EM (SNOSCOOT (ELEC START)) 1988 FRAME Diagram

#

Description
Price

1

FRAME

85H-21910-01-00

Unavailable

2

. BUMPER, FRONT 1

85G-77511-09-00

Unavailable

3

BOLT

97014-08040-00

$4.90

4

GROMMET (1E5)

90480-13163-00

$5.55

5

BRACKET, BATTERY

85H-2199G-00-00

Unavailable

6

BOLT, HEXAGON

97017-06016-00

$5.76

7

WASHER, SPRING

92907-06100-00

$0.98

8

WASHER(6TA)

92907-06600-00

$0.73

9

TOOL KIT

85G-28100-00-00

Unavailable

10

REAR REFLECTOR ASSY

3Y6-85130-02-00

$21.21

11

NUT, FLANGE(3GM)

95707-05500-00

$5.76
