2026 Suzuki SV650AM6(E33) Rear Combination Lamp Diagram

← All diagrams

Find the part on the Rear Combination Lamp diagram for your 2026 Suzuki SV650AM6(E33), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

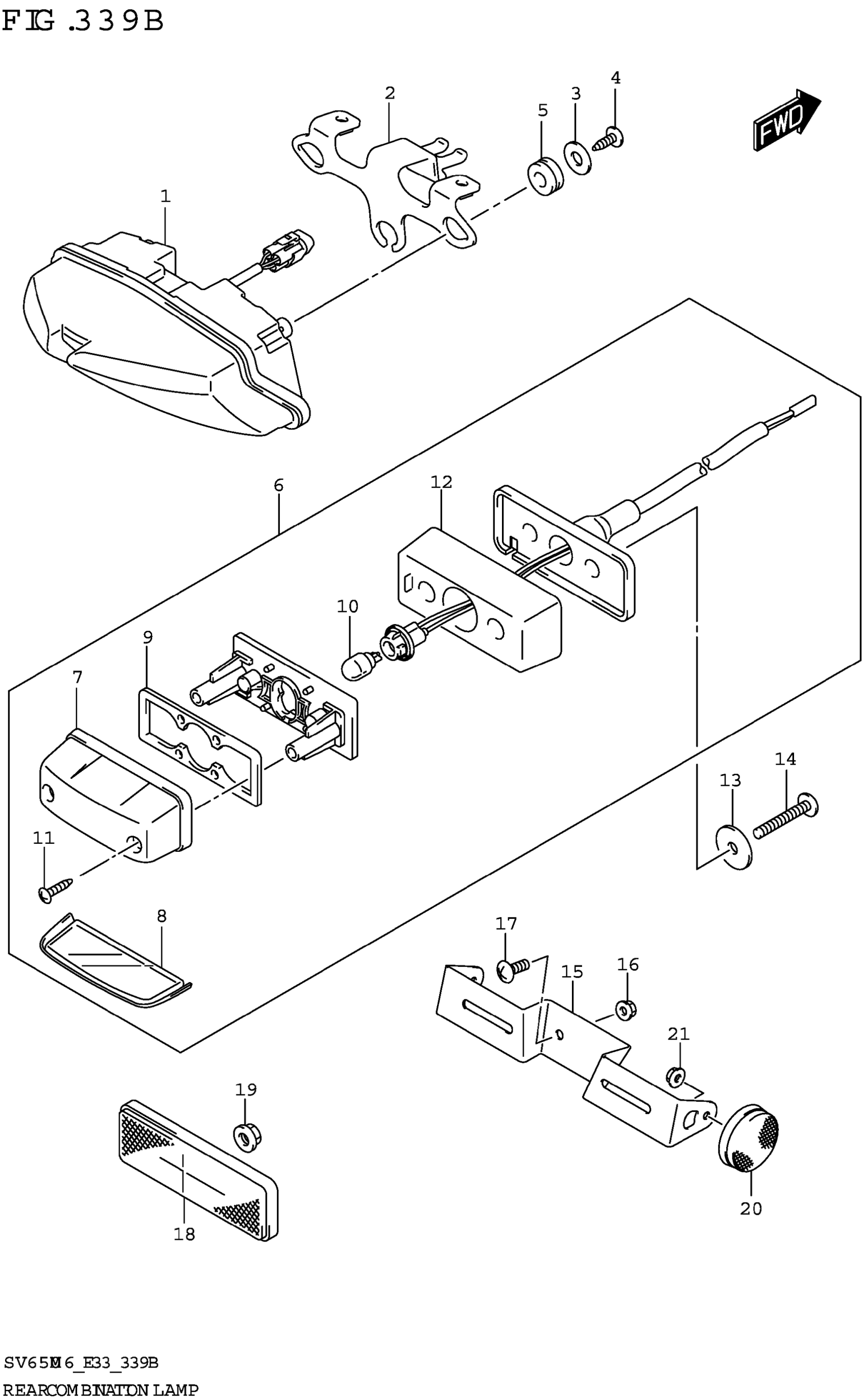

2026 Suzuki SV650AM6(E33) Rear Combination Lamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LAMP ASSY,REAR COMB

35710-14JD0

1

$224.98

In stock

2

1

$18.78

In stock

3

WASHER (5.5X20X1.2)

09160-05501

3

$2.02

In stock

4

SCREW

03541-0516A

3
Out of stock

5

3

$1.85

In stock

6

LAMP ASSY,LICENSE

35910-16G31

1

$99.58

In stock

7

.COVER

35917-16G00

1
Out of stock

8

.LENS

35912-16G01

1
Out of stock

9

.GASKET

35913-16G00

1
Out of stock

10

.BULB (12V5W)

09471-12216

1
Out of stock

11

.SCREW

03211-0416A

2

$1.54

In stock

12

.SPACER

35978-16G30

1
Out of stock

13

WASHER (5.5X20X1.2)

09160-05501

2

$2.02

In stock

14

SCREW

03541-0540A

2
Out of stock

15

BRACKET,LICENSE PLATE

35927-44H30

1
Out of stock

16

NUT (M6)

09159-06096

2
Out of stock

17

SCREW

02142-0616A

2
Out of stock

18

REFLECTOR ASSY,RR

35970-07F01

1
Out of stock

19

NUT

08319-3105A

1

$2.47

In stock

20

REFLECTOR ASSY, RR SIDE

35970-14A20

2
Out of stock

21

NUT

08319-3105A

2

$2.47

In stock
