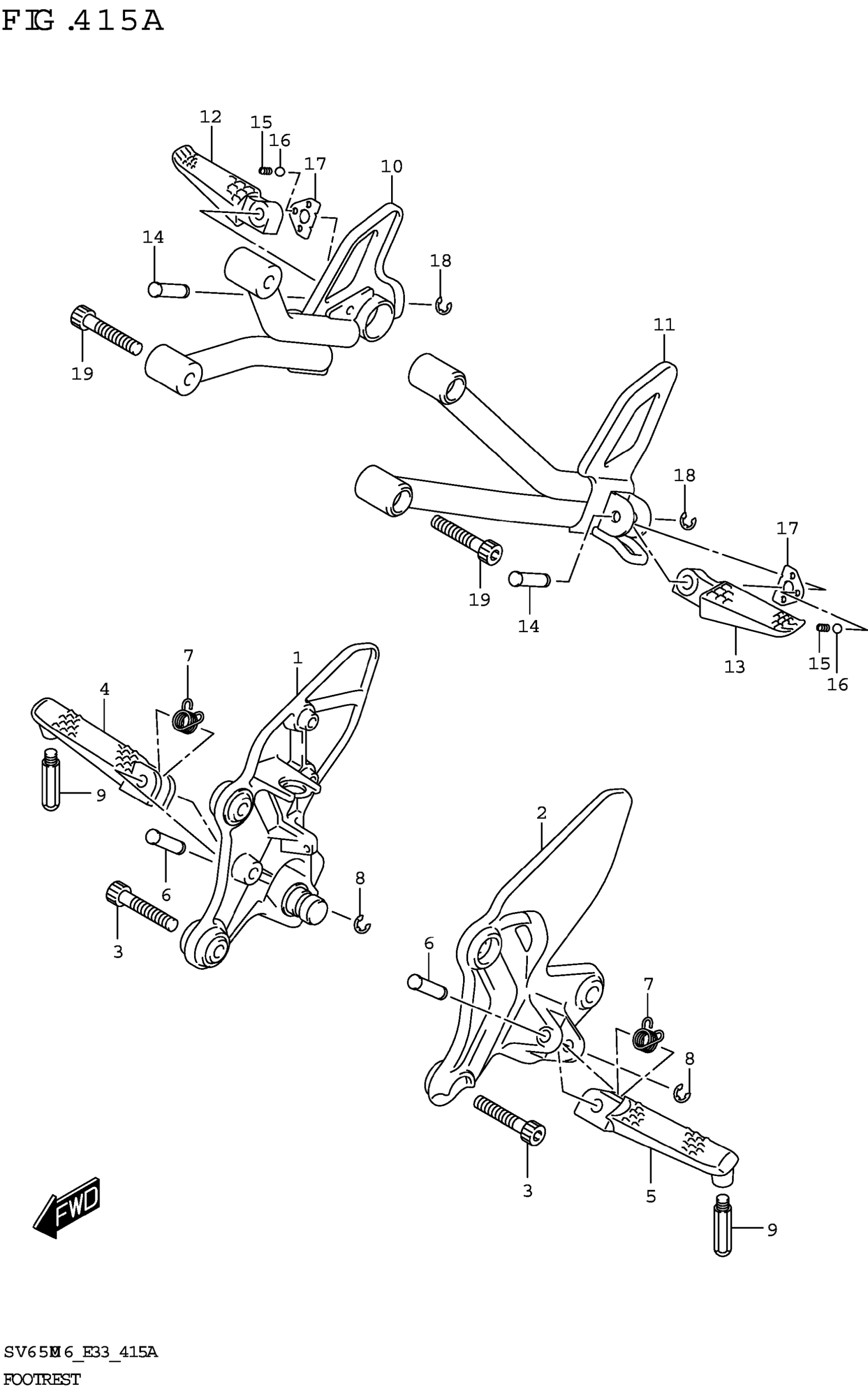

Suzuki SV650AM6(E33) (2026) FOOTREST Diagram

#

Description
Price

1

BRACKET,FOOTREST RH

43510-18K00

$184.07

2

BRACKET,FOOTREST LH

43521-18K00

$182.07

3

BOLT (8X23)

09106-08186

$3.08

4

BAR,FRONT FOOTREST,R

43516-18K20

$26.66

5

BAR,FRONT FOOTREST,L

43526-18K20

$26.66

6

PIN

09208-08019

$2.77

7

SPRING

09448-14046

$3.77

8

E-RING

08332-1106A

$1.43

9

BOLT,BANK SENSOR

43576-48B20

$11.77

10

BRACKET,PILLION FTRST RH

43810-18K00

$185.50

11

BRACKET,PILLION FTRST LH

43820-18K00

$166.97

12

BAR,PILLION FOOTREST,R

43611-37H20

$50.40

13

BAR,PILLION FOOTREST,L

43621-37H20

$48.75

14

PIN

09208-08017

$3.67

15

SPRING

09440-05005

$1.45

16

BALL

06111-07004

$1.22

17

PLATE,PILLION FOOTREST

43816-01H10

$8.87

18

E-RING

08332-1106A

$1.43

19

BOLT (8X40)

09106-08074

$3.52
