2026 Suzuki SV650AM6(E33) 2ND AIR Diagram

← All diagrams

Find the part on the 2ND AIR diagram for your 2026 Suzuki SV650AM6(E33), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

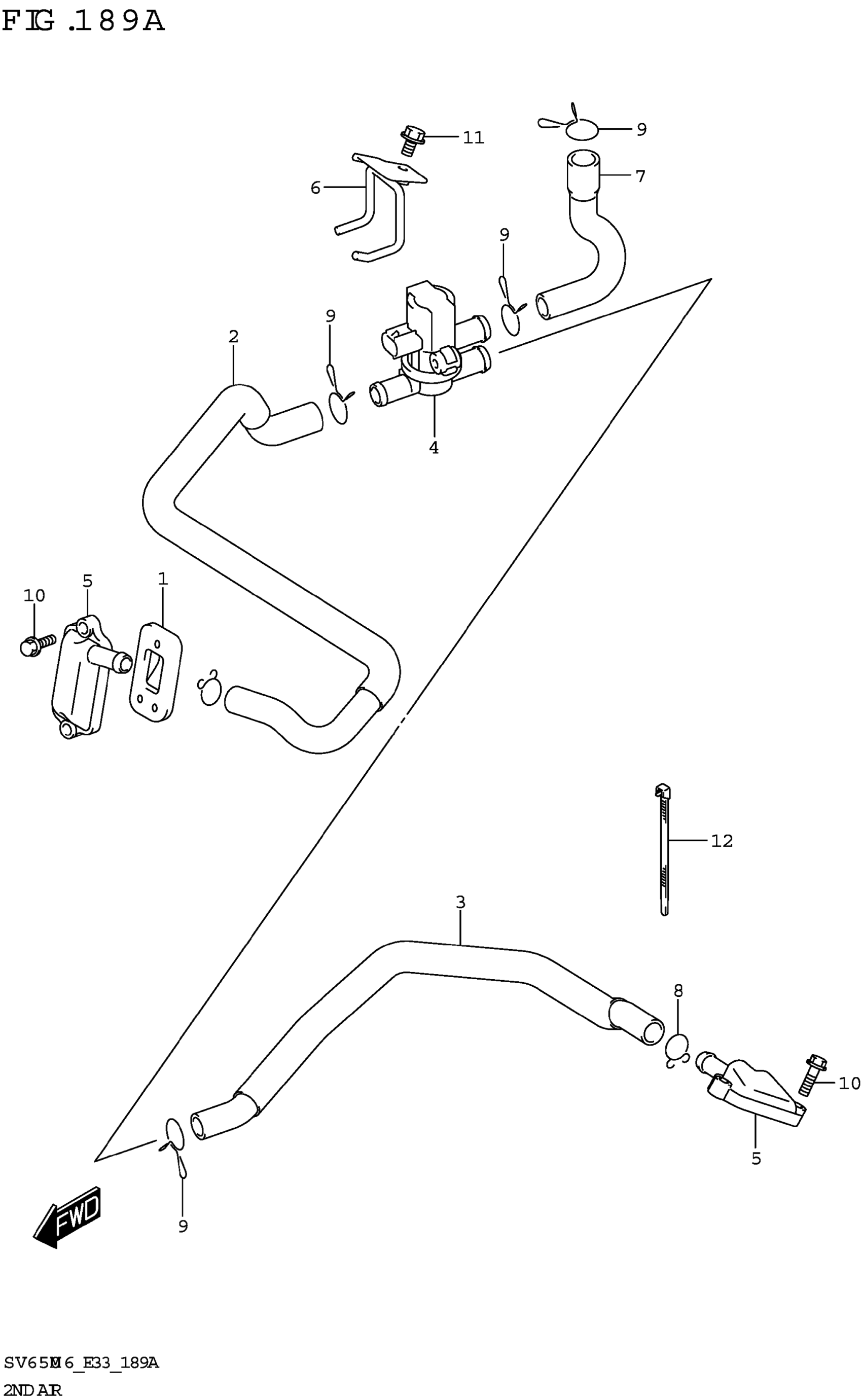

2026 Suzuki SV650AM6(E33) 2ND AIR Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

VALVE ASSY,OIL REED

13150-28H10

2

$46.95

In stock

2

HOSE,2ND AIR VALVE FR

18461-18K00

—
Out of stock

3

HOSE,2ND AIR VALVE RR

18471-18K00

—
Out of stock

4

VALVE ASSY,AIR CUT

18510-29G31

1
Out of stock

5

COVER,2ND AIR REED VALVE

18531-06G20

—
Out of stock

6

BRACKET,2ND AIR VALVE

18610-18K00

—
Out of stock

7

HOSE,2ND AIR CLNR

18711-18K00

—
Out of stock

8

CLIP (ID:15.5)

09401-15101

2
Out of stock

9

CLIP

09401-17201

3
Out of stock

10

BOLT (6X20)

09103-06527

4
Out of stock

11

BOLT

01550-0610A

1
Out of stock

12

CLAMP (L:145)

09407-14407

1
Out of stock
