2025 Suzuki SV650AM5(E28) Water Pump Diagram

← All diagrams

Find the part on the Water Pump diagram for your 2025 Suzuki SV650AM5(E28), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

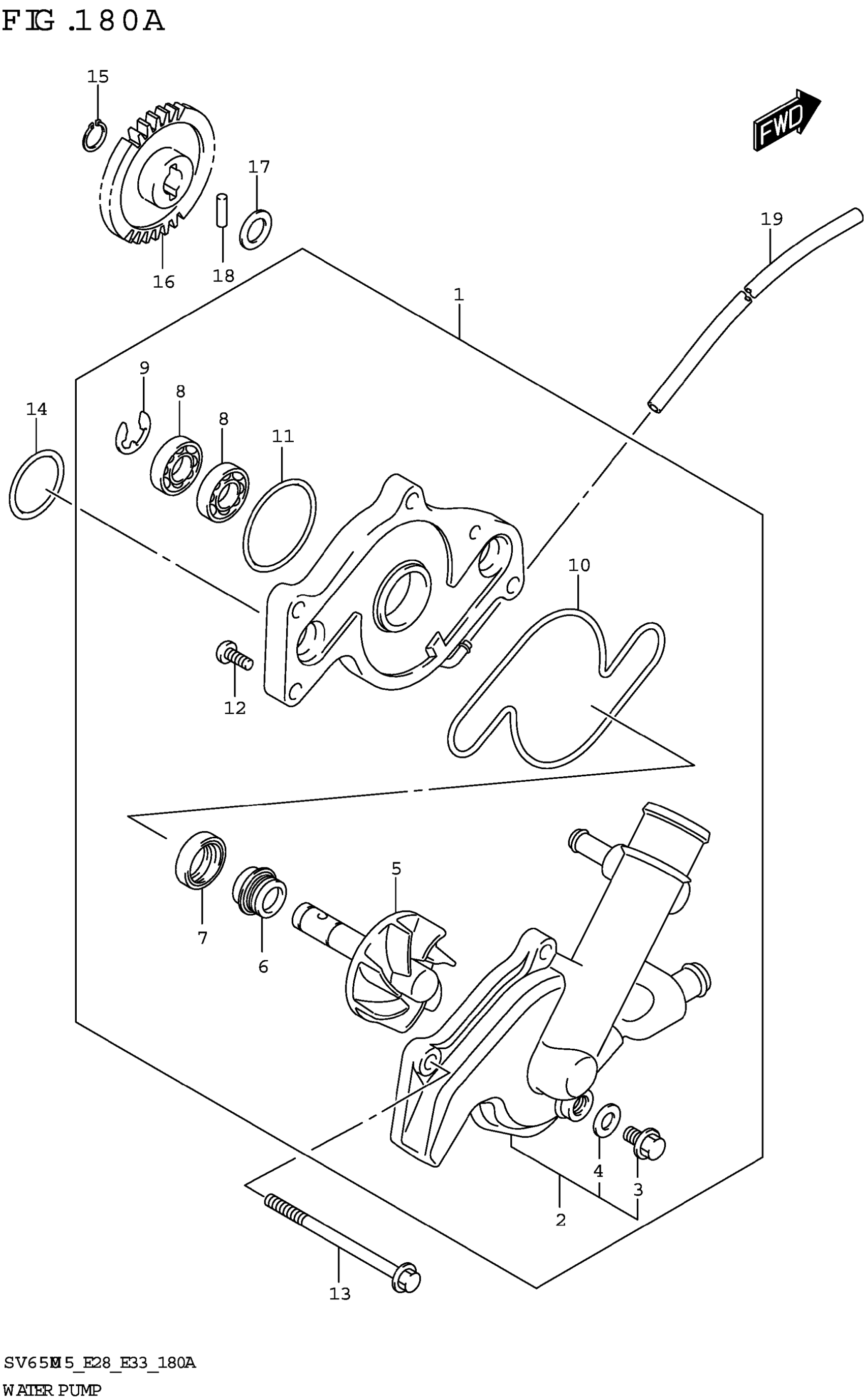

2025 Suzuki SV650AM5(E28) Water Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PUMP ASSY,WATER

17400-18K01

1
Out of stock

2

.CASE,WATER PUMP

17411-18K00

1
Out of stock

3

..BOLT

17415-14300

1
Out of stock

4

GASKET (8.2X14X1) This part replaces 09168-08008.

09168-08016

1
Out of stock

5

.IMPELLER/SHAFT

17491-19F40

1
Out of stock

6

.SEAL,MECHANICAL

17470-02F11

1
Out of stock

7

.SEAL,OIL (10X21X5)

17461-48G00

1
Out of stock

8

.BEARING (10X26X8)

09262-10014

2
Out of stock

9

.E-RING

08332-1108A

1
Out of stock

10

.O-RING

17418-19F00

1
Out of stock

11

.O-RING

17435-33400

1
Out of stock

12

SCREW

02112-0510A

2
Out of stock

13

BOLT (6X70)

09103-06537

3
Out of stock

14

.O-RING (D:2.4,ID:21.8)

09280-22001

2
Out of stock

15

CIRCLIP

08331-31109

1
Out of stock

16

GEAR,WATER PUMP DRIVEN (NT:34

17461-44H00

1
Out of stock

17

SHIM (10X18X0.5)

09181-10158

1
Out of stock

18

ROLLER (4X13.8)

09261-04002

1
Out of stock

19

HOSE (3.5X6.5X320)

09352-35654-320

1
Out of stock
