2025 Suzuki SV650AM5(E28) Stand ) Diagram

← All diagrams

Find the part on the Stand ) diagram for your 2025 Suzuki SV650AM5(E28), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

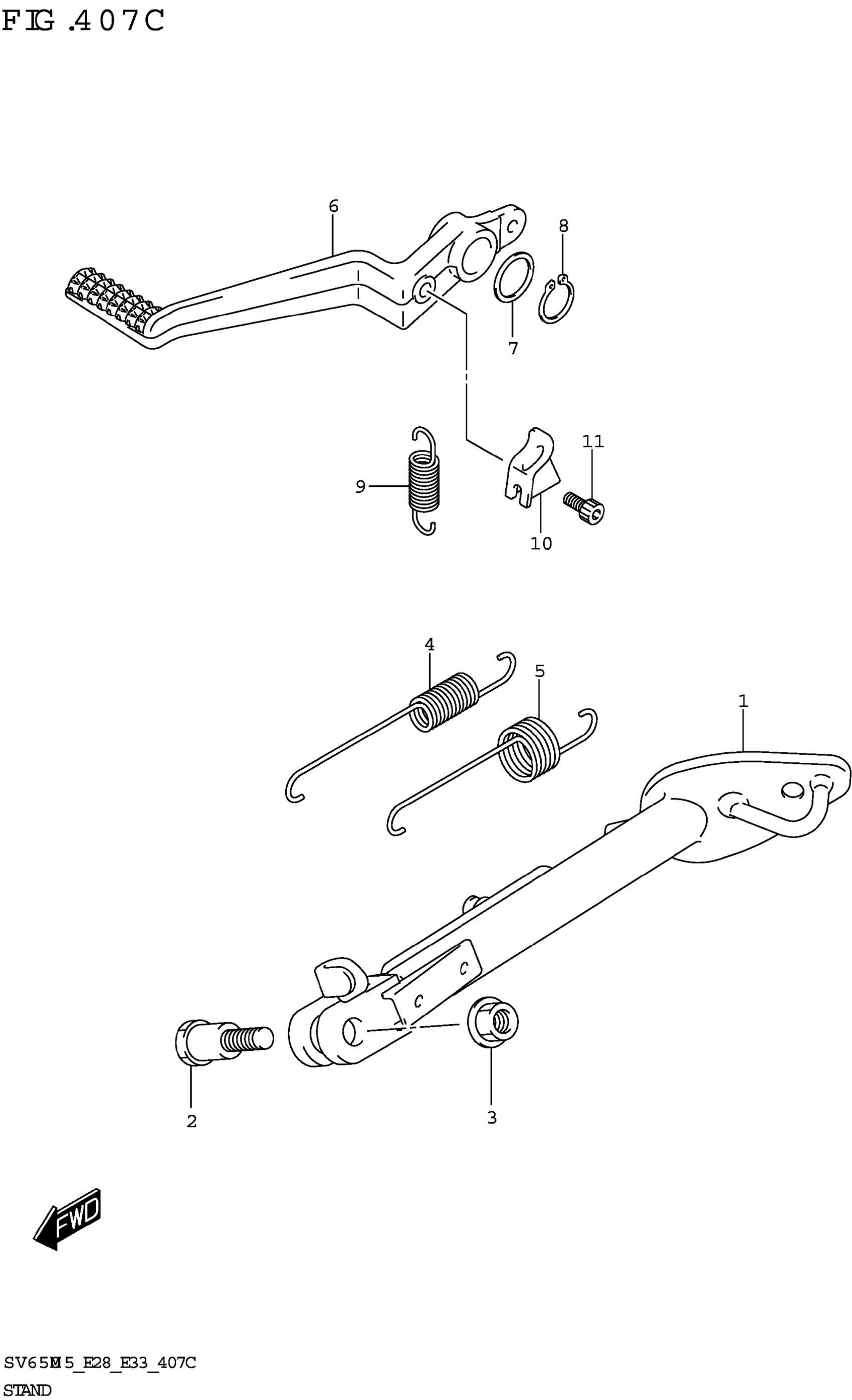

2025 Suzuki SV650AM5(E28) Stand ) Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STAND,PROP

42310-18K00

1
Out of stock

2

BOLT (10X21)

09111-10059

1
Out of stock

3

NUT

08319-3110A

1
Out of stock

4

SPRING

09443-15046

1
Out of stock

5

SPRING

09443-22017

1
Out of stock

6

PEDAL,BRAKE

43111-44G20

1
Out of stock

7

WASHER (18X24X1.0)

09160-18022

1
Out of stock

8

CIRCLIP

08331-3118A

1
Out of stock

9

SPRING

09443-11030

1
Out of stock

10

BRACKET,RETURN SPRING

43561-44G00

1
Out of stock

11

BOLT

07130-0610B

1
Out of stock
