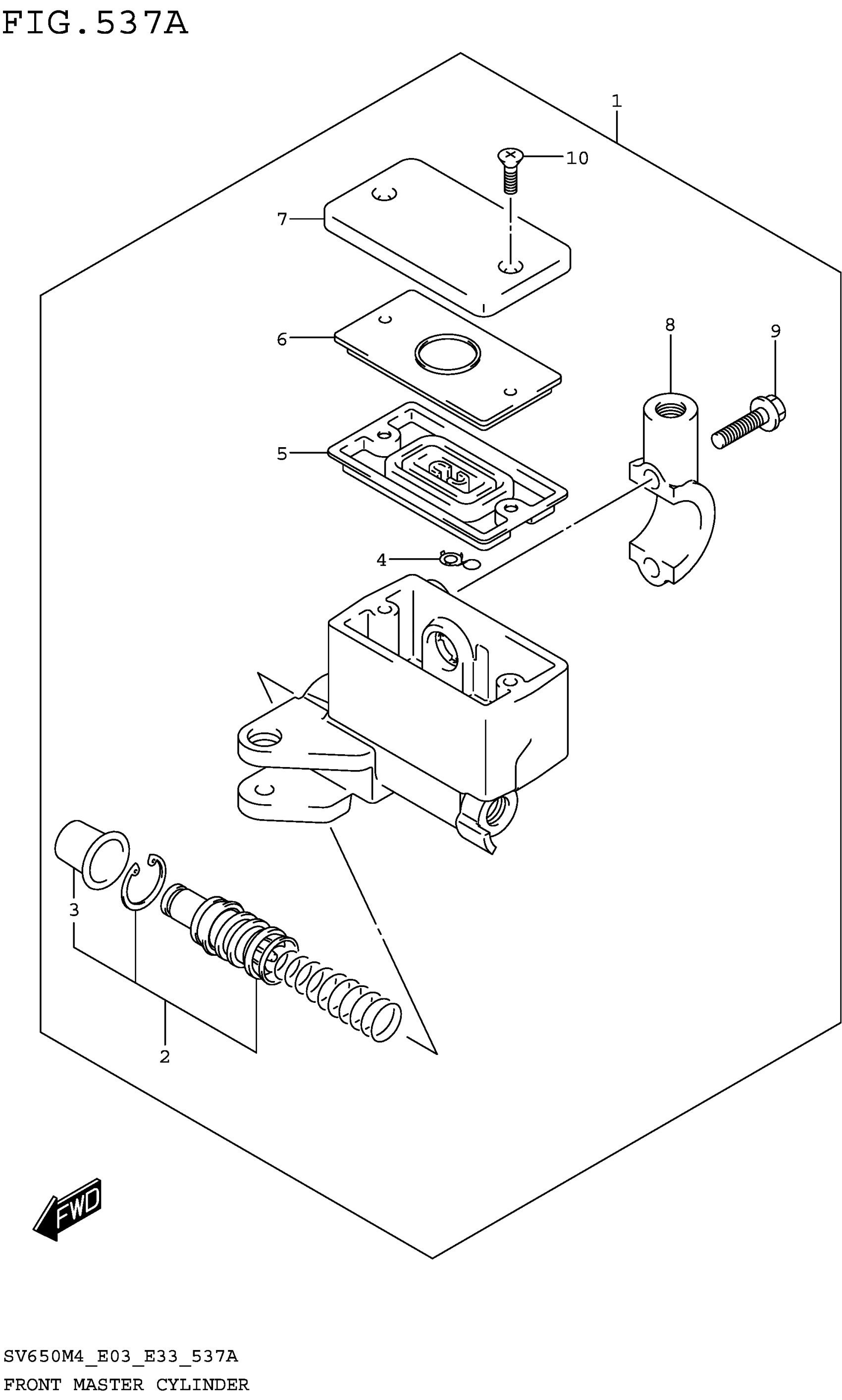

Suzuki SV650AM4(E28) (2024) FRONT MASTER CYLINDER (SV650M4 E03) Diagram

#

Description

Price

1

CYLINDER ASSY,FRONT MASTER

59600-10G50

$308.75

2

.PISTON & CUP SET

59600-45870

$59.52

3

..BOOT

59666-44300

$5.54

4

.PROTECTOR

59664-32F00

$13.20

5

.DIAPHRAGM

59667-49460

$9.36

6

.PLATE,DIAPHRAGM

59668-41C00

$8.92

7

.CAP

59669-10G20

$64.72

8

.HOLDER

59671-32F00

$18.68

9

.BOLT (6X22)

59675-02FA0

$3.66

10

.SCREW

69689-49300

$1.81

11

COLOR:KEL=YVB(BLACK)/YSF(BLUE) | FIG.537B(2-D-13) FRONT MASTER CYLINDER (SV650M4 E33) FIG.537C(2-D-14) FRONT MASTER CYLINDER (SV650AM4 E28) FIG.537D(2-E-2 ) FRONT MASTER CYLINDER (SV650AM4 E33) FIG.537E(2-E-3 ) FRONT MASTER CYLINDER (SV650XAM4 E28)

SPECIAL NOTE

Unavailable
