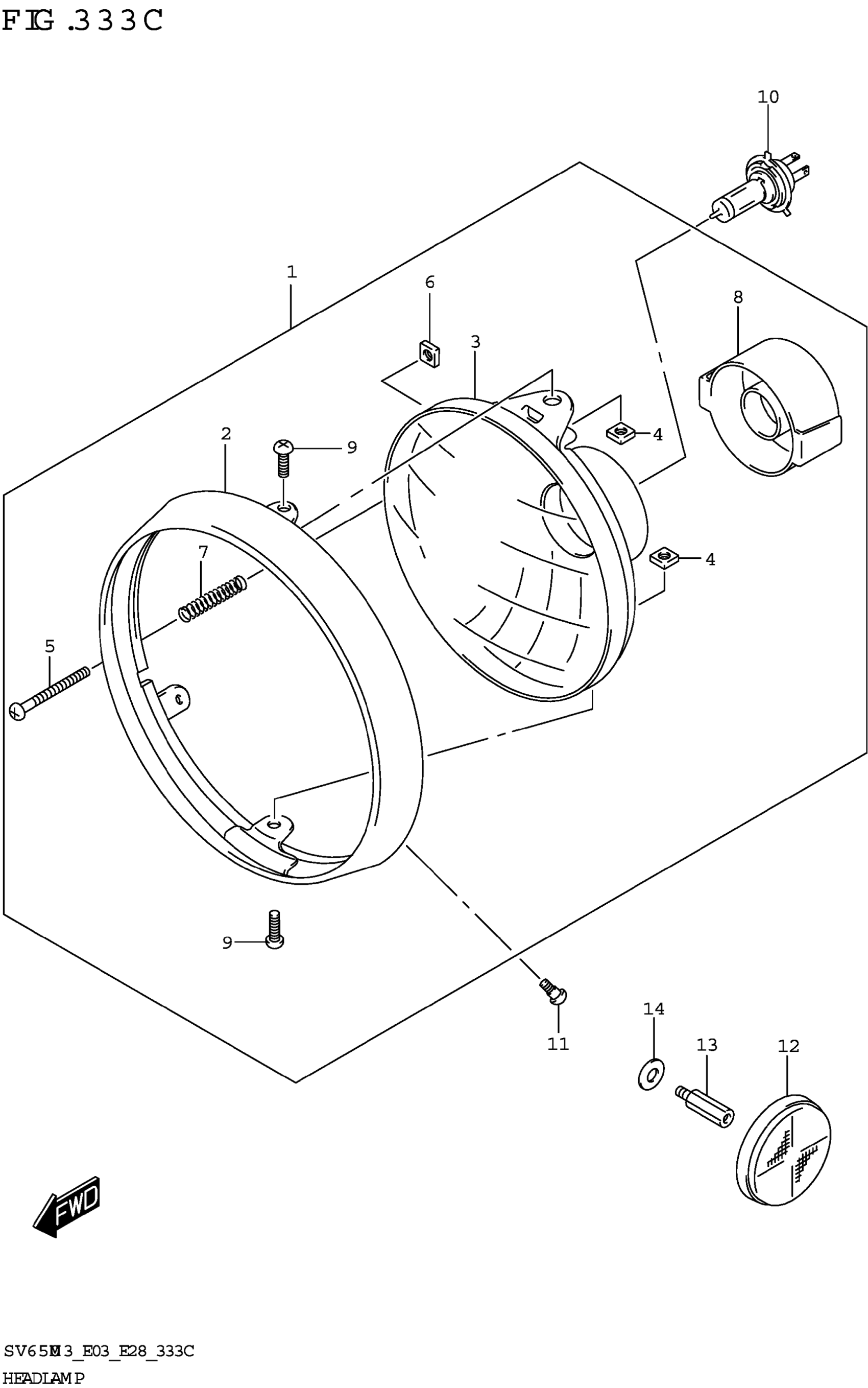

Suzuki SV650AM3 (2023) HEADLAMP Diagram

#

Description
Price

1

HEADLAMP ASSY This part replaces 35100-19F00-999.

35100-19F01-999

$249.60

2

.RIM

35111-19F00

$115.37

3

.LAMP UNIT

35121-19F00

$170.28

4

.NUT

35135-45900

$3.67

5

.SCREW,ADJUSTING (4X52)

35151-19F00

$5.10

6

.NUT

35152-45600

$3.92

7

.SPRING

35154-13F00

$5.43

8

.COVER,SOCKET

35174-19F00

$34.12

9

.SCREW (5X16)

35181-19F00

$3.67

10

BULB (12V,60/55W) This part replaces 09471-12185.

09471-12060

$22.69

11

SCREW (5X15.3)

09139-05038

$2.15

12

REFLEX REFLECTOR ASSY,FR SIDE

35950-13K01

$11.41

13

BOLT (5X10)

09119-05023

$13.80

14

WASHER

08322-0105B

$2.24
