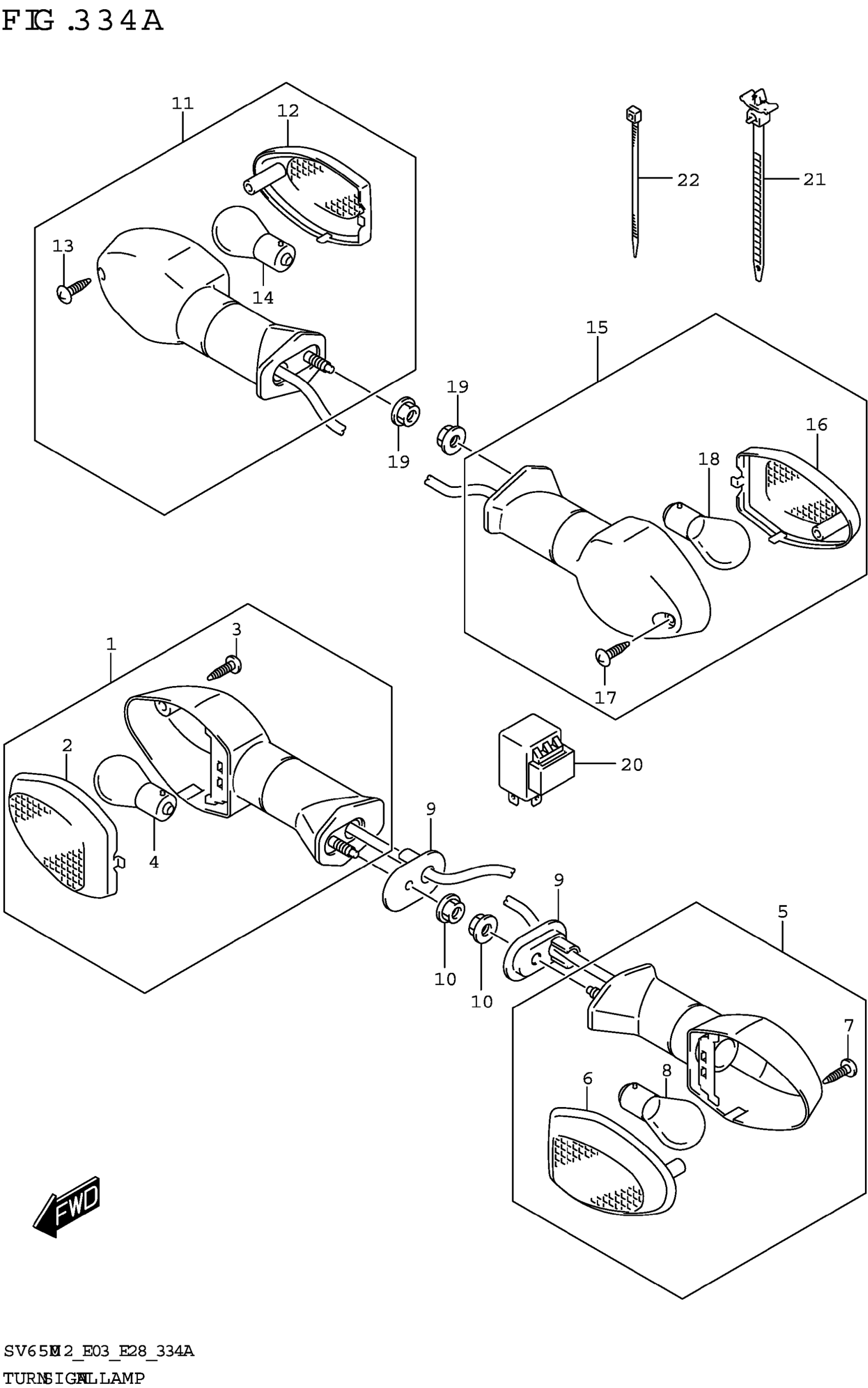

Suzuki SV650AM2 (2022) TURNSIGNAL LAMP Diagram

#

Description
Price

1

LAMP ASSY,FRONT TURNSIGNAL,R

35601-08JB0

$98.88

2

.LENS

35612-08JA0

$14.07

3

.SCREW

03211-0414B

$1.93

4

.BULB (12V21W)

09471-12186

$16.18

5

LAMP ASSY,FRONT TURNSIGNAL,L

35602-08JB0

$98.88

6

.LENS

35632-08JA0

$14.07

7

.SCREW

03211-0414B

$1.93

8

.BULB (12V21W)

09471-12186

$16.18

9

PLATE,TURNSIGNAL LAMP

35629-31F40

$4.14

10

NUT

08316-1005A

$2.19

11

LAMP ASSY,RR TURNSIGNAL,R

35603-08JB0

$107.93

12

.LENS

35632-08JA0

$14.07

13

.SCREW

03211-0414B

$1.93

14

.BULB (12V21W)

09471-12186

$16.18

15

LAMP ASSY,RR TURNSIGNAL,L

35604-08JB0

$104.47

16

.LENS

35612-08JA0

$14.07

17

.SCREW

03211-0414B

$1.93

18

.BULB (12V21W)

09471-12186

$16.18

19

NUT

08316-1005A

$2.19

20

RELAY ASSY,TURNSIGNAL LAMP

38610-06F01

$92.75

21

CLAMP (L:125)

09407-14403

$2.24

22

CLAMP (L:165)

09407-18402

$2.21
