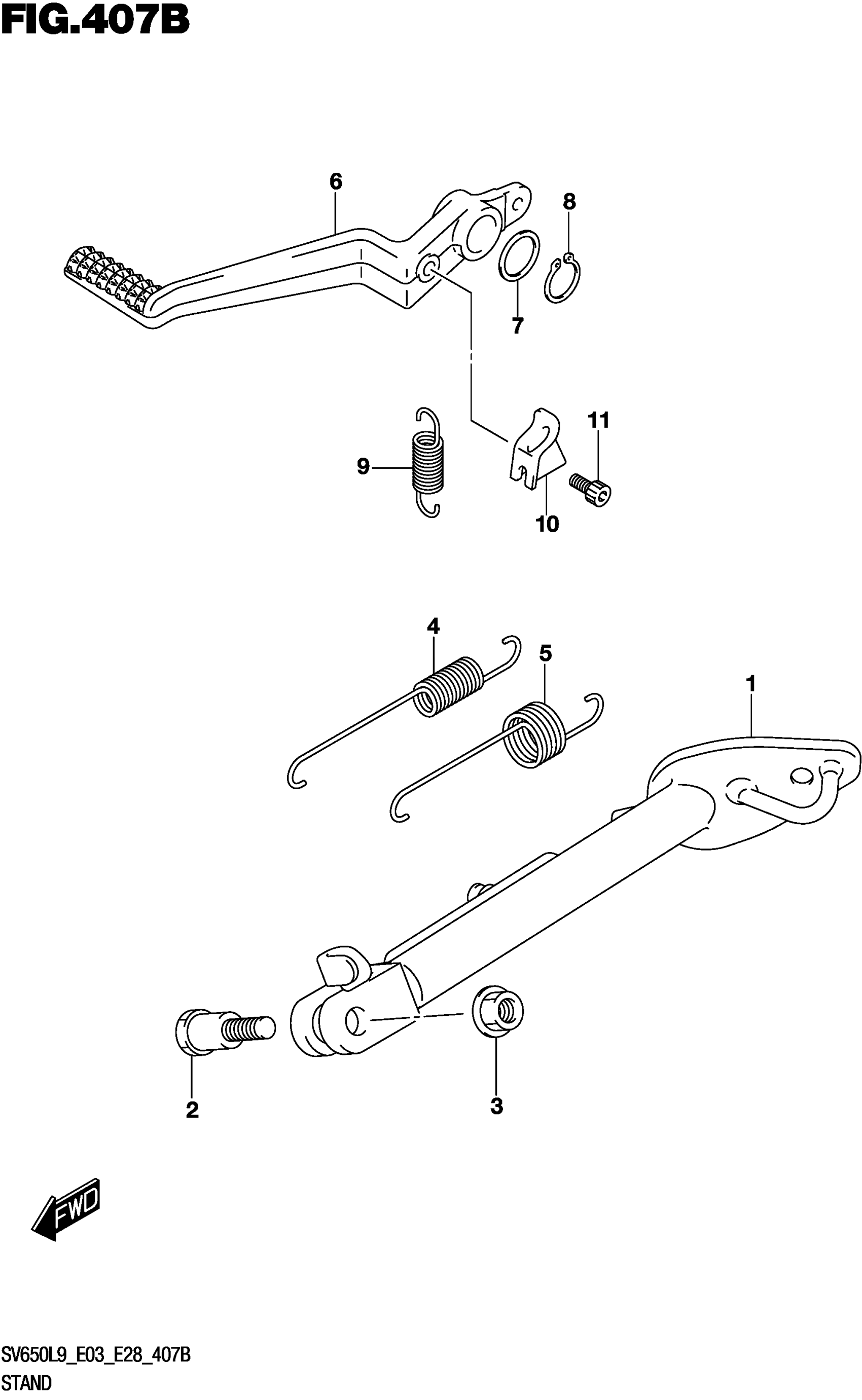

Suzuki SV650AL9 (2019) STAND (SV650L9 E33) Diagram

#

Description
Price

1

STAND,PROP

42310-18K00

$138.27

2

BOLT (10X21)

09111-10059

$6.45

3

NUT

08319-3110A

$2.80

4

SPRING

09443-15046

$7.85

5

SPRING

09443-22017

$7.19

6

PEDAL,BRAKE

43111-44G10

$105.27

7

WASHER (18X24X1.0)

09160-18022

$2.80

8

CIRCLIP

08331-3118A

$2.30

9

SPRING

09443-11030

$3.45

10

BRACKET,RETURN SPRING

43561-44G00

$13.70

11

BOLT

07130-0610B

$1.23
