2019 Suzuki SV650AL9 Electrical Diagram

← All diagrams

Find the part on the Electrical diagram for your 2019 Suzuki SV650AL9, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

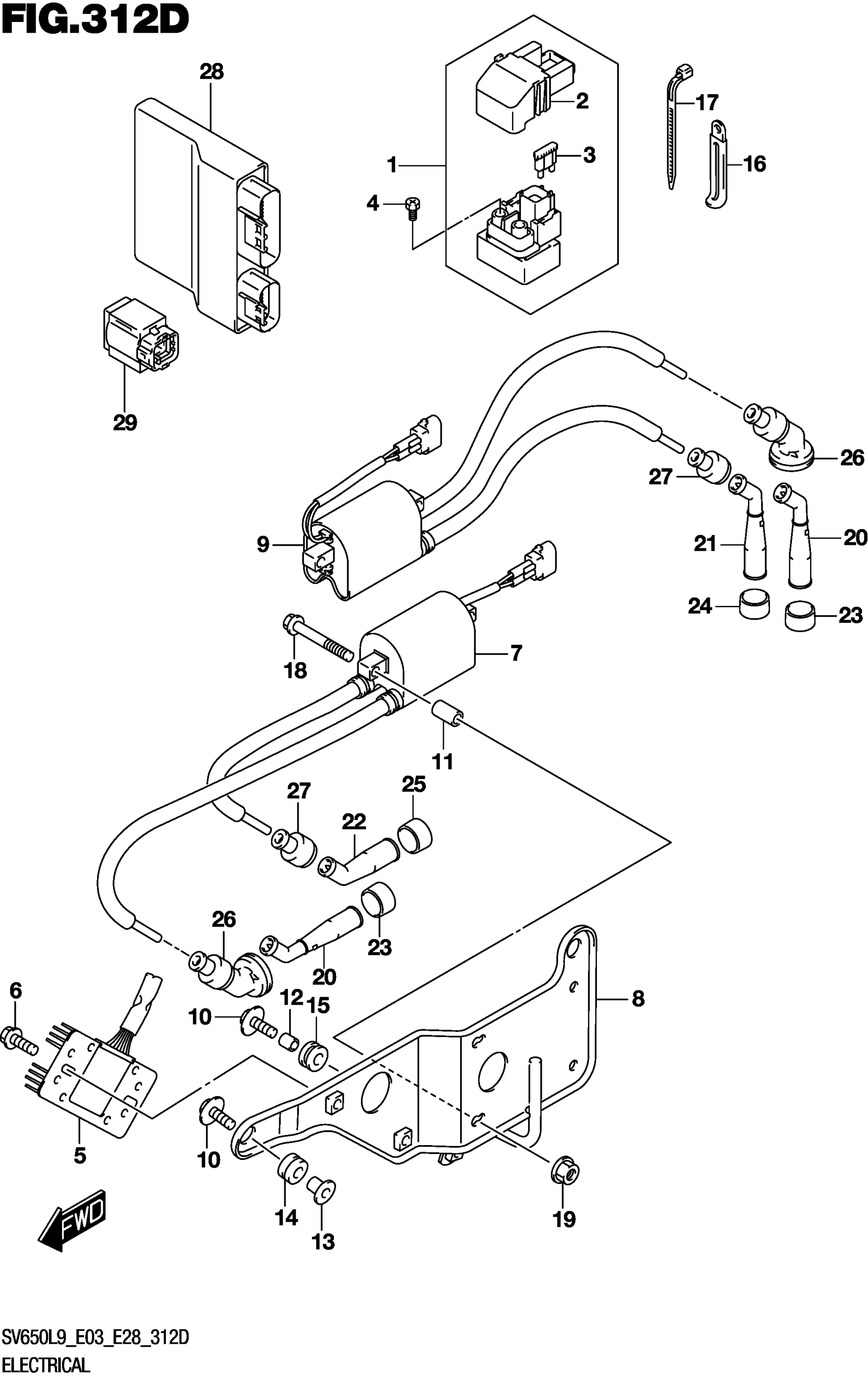

2019 Suzuki SV650AL9 Electrical Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

RELAY ASSY,STARTING MOTOR This part replaces 31800-06G00.

31800-06G02

1
Out of stock

2

.COVER

31861-47E00

1
Out of stock

3

.FUSE (30A)

09481-30101

2

$2.45

In stock

4

SCREW (6X8)

09128-06013

2
Out of stock

5

RECTIFIER ASSY

32800-47H00

1

$261.08

In stock

6

2

$2.22

In stock

7

1

$148.83

In stock

8

BRACKET,IGN COIL REAR

33414-44H01

1
Out of stock

9

1

$148.83

In stock

10

BOLT (6X20)

09116-06188

3
Out of stock

11

SPACER (6.4X10X18)

09180-06195

4
Out of stock

12

SPACER (6.5X9X9)

09180-06263

1
Out of stock

13

SPACER (6.2X8.4X10.9)

09180-06331

2
Out of stock

14

CUSHION (8X18X10)

09320-08501

2
Out of stock

15

CUSHION (9X18X9.5)

09320-09016

1
Out of stock

16

1

$1.89

In stock

17

CLAMP (L:165)

09407-18402

1
Out of stock

18

BOLT (6X40)

09103-06531

4

$2.58

In stock

19

NUT (6X12)

08316-1006A

4
Out of stock

20

CAP ASSY,SPARK PLUG

33510-17G00

2

$33.35

In stock

21

CAP ASSY,SPARK PLUG

33510-17G00

1

$33.35

In stock

22

CAP ASSY,SPARK PLUG

33510-20E00

1
Out of stock

23

SEAL,SPARK PLUG

33541-23E10

2
Out of stock

24

SEAL,SPARK PLUG

33541-23E10

1
Out of stock

25

SEAL,SPARK PLUG

33541-47D00

1
Out of stock

26

2

$9.17

In stock

27

SEAL,HIGH TENSION CORD (SIDE)

33542-38B00

2
Out of stock

28

CONTROL UNIT,FI

32920-18K11

1

$1,013.23

In stock

29

SENSOR ASSY,FUEL CUT

33960-06G10

1
Out of stock
