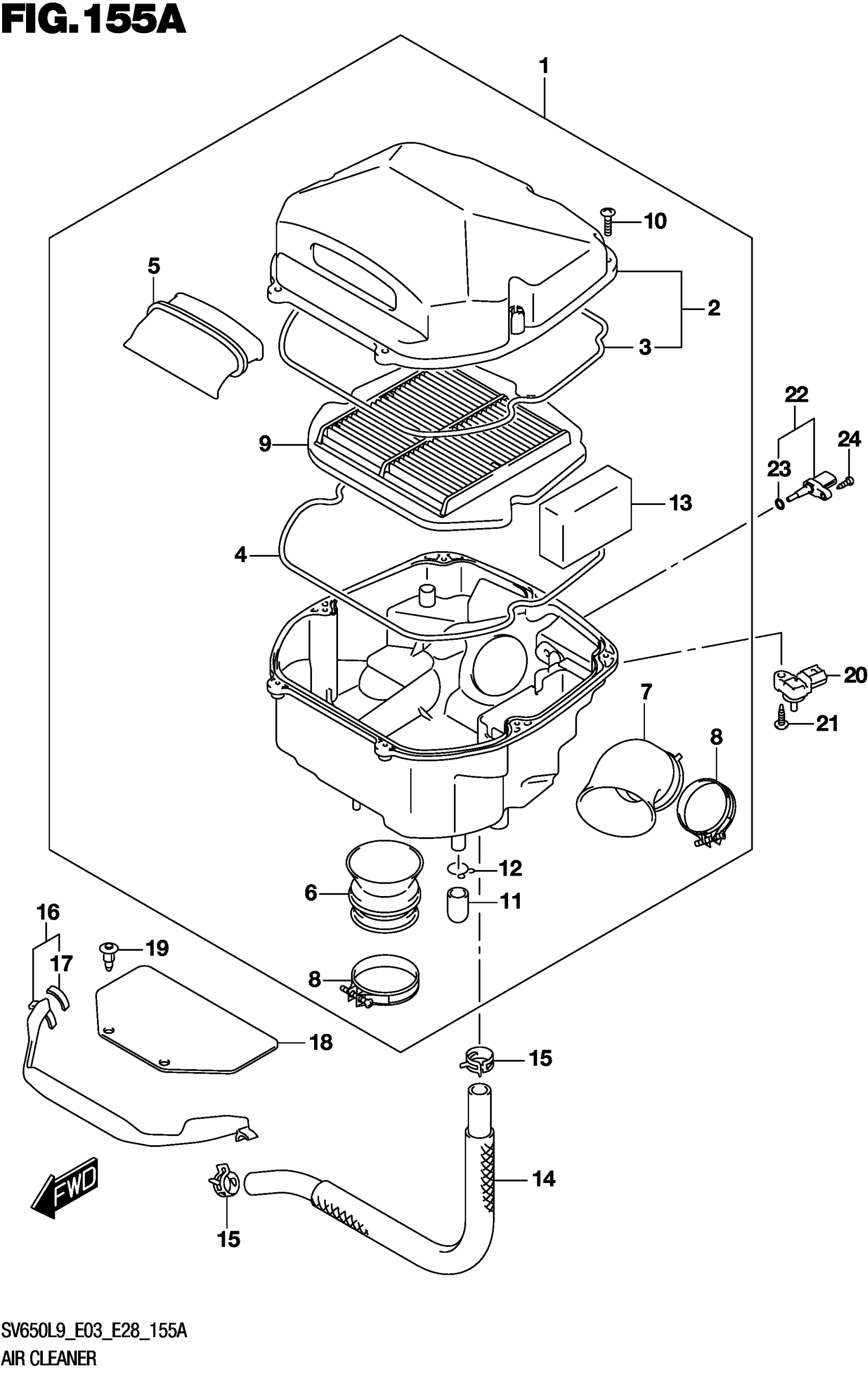

Suzuki SV650AL9 (2019) AIR CLEANER Diagram

#

Description
Price

1

CLEANER ASSY,AIR This part replaces 13700-18K00.

13700-18K01

$290.82

2

.CAP,AIR CLEANER

13740-44H00

$66.18

3

..GASKET

13746-44H00

$9.17

4

..GASKET

13746-44H00

$9.17

5

.TUBE,INLET This part replaces 13891-18K00.

13891-18K01

$42.00

6

.TUBE,OUTLET A This part replaces 13881-18K00.

13881-18K01

$29.10

7

.TUBE,OUTLET B This part replaces 13882-18K00.

13882-18K01

$29.03

8

.CLAMP,OUTLET TUBE

13826-44H01

Unavailable

9

.FILTER,AIR CLEANER

13780-44H00

$35.71

10

SCREW

03541-0520A

$1.81

11

.PLUG

13859-41B10

$6.94

12

.CLIP (ID:14.5)

09401-14101

$2.37

13

.FILTER,BREATHER

13788-44H00

$13.82

14

TUBE,BREATHER This part replaces 13850-18K00.

13850-18K01

$41.37

15

CLIP

09401-20405

$4.43

16

COVER,CLEANER INLET

13840-44H00

Unavailable

17

CUSHION (10X30X2)

44894-24A00

$1.78

18

SHEET,CLEANER INLET

13841-44H00

Unavailable

19

CLIP (7.6X25.7,BLACK)

09409-08308-5ES

$1.97

20

SENSOR,BOOST

18590-18K00

$350.62

21

SCREW

03541-0520A

$1.81

22

SENSOR,AIR TEMP

13650-41F10

$71.40

23

O-RING

13655-41F10

Unavailable

24

SCREW

03511-0516A

$1.88
