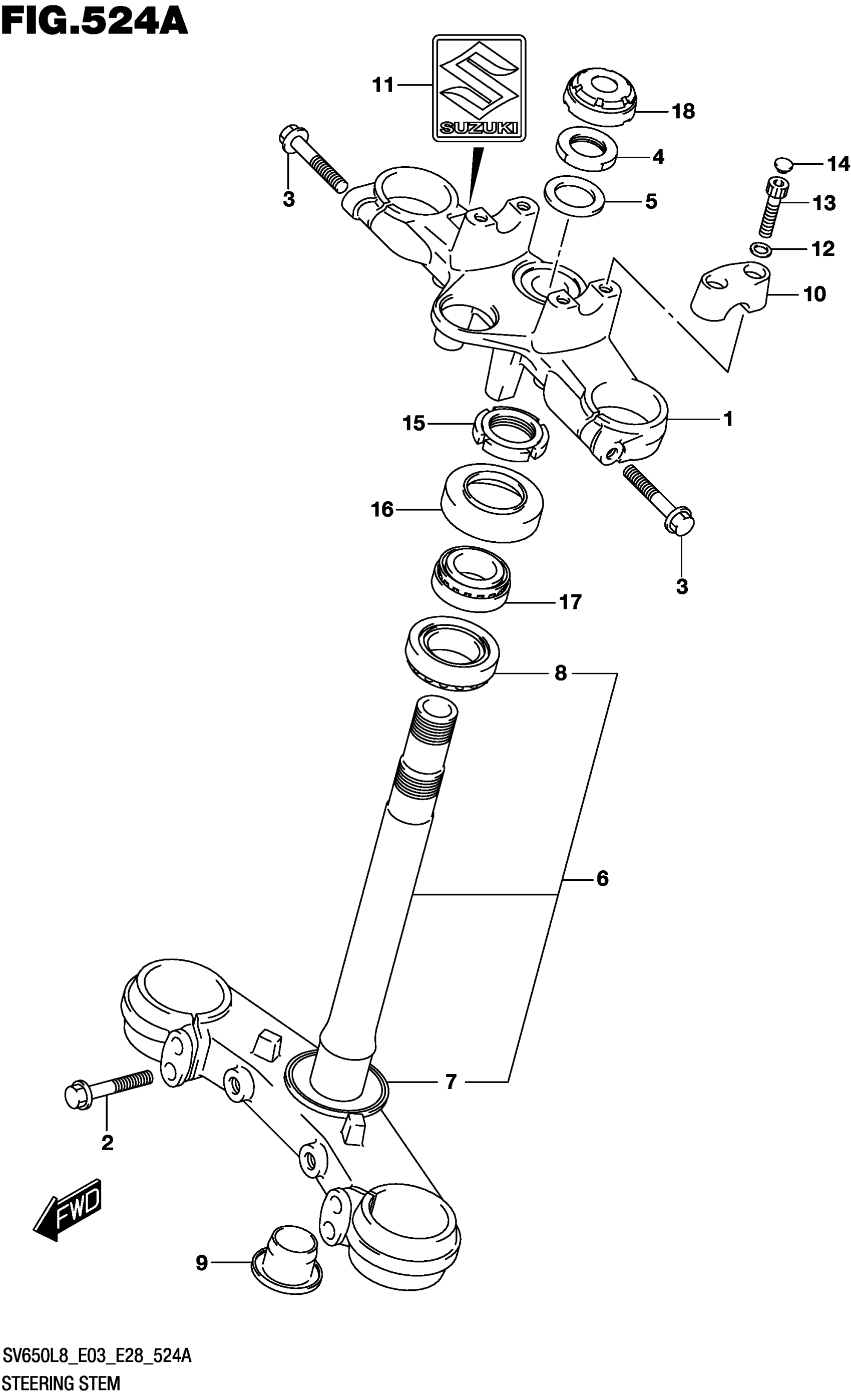

Suzuki SV650AL8 (2018) STEERING STEM Diagram

#

Description
Price

1

HEAD,STEERING STEM (BLACK)

51311-44H00-291

$317.55

2

BOLT

51328-44H00

$6.35

3

BOLT

51328-44H00

$6.35

4

NUT

51353-13K00

$12.03

5

WASHER

51356-13K00

$2.80

6

BRACKET,UNDER (BLACK)

51410-44HD0-291

$464.88

7

.SEAL,STEERING LWR (30.1X56X4

51644-12C00

$8.65

8

.BEARING (30X55X17)

09265-30020

$40.65

9

CAP

51482-44H00

$11.08

10

HOLDER,HANDLE (BLACK)

56211-44H00-291

$34.38

11

EMBLEM,S

68281-47HA0

$7.11

12

WASHER

09164-08015

$2.90

13

BOLT,HOLDER,HANDLE

51321-10F10

$2.00

14

CAP This part replaces 09250-06008.

09250-06016

$1.94

15

NUT,STEERING STEM

51631-31F10

$18.07

16

SEAL,DUST This part replaces 51643-40502.

51643-40503

$5.79

17

BEARING (25X47X15)

09265-25038

$41.11

18

CAP,STEERING STEM

51344-13K00

$13.30
