2018 Suzuki SV650AL8 Rear Caliper Diagram

← All diagrams

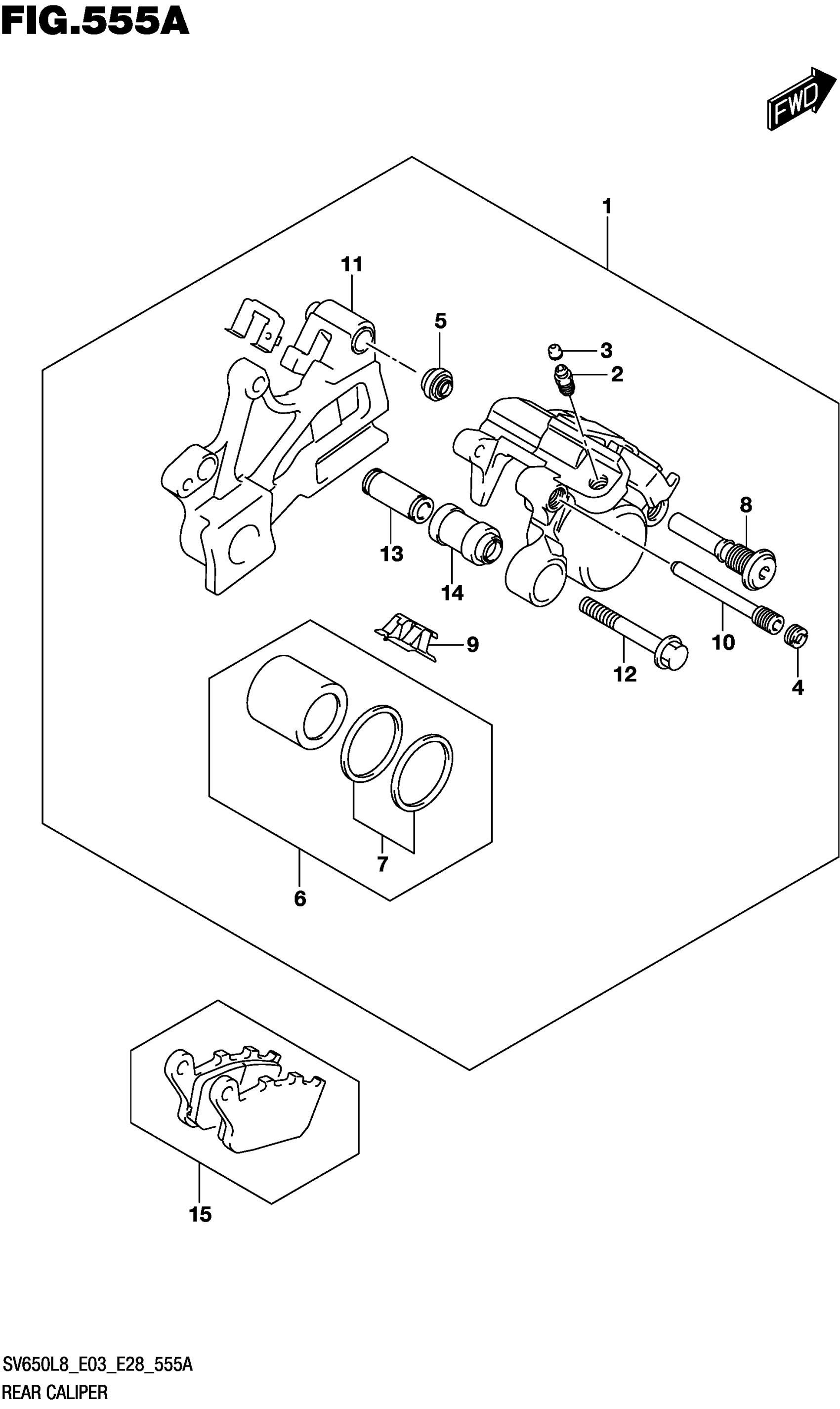

Find the part on the Rear Caliper diagram for your 2018 Suzuki SV650AL8, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2018 Suzuki SV650AL8 Rear Caliper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CALIPER ASSY,REAR

69100-18K00-999

1

$427.45

In stock

2

.BLEEDER

59121-01A00

1
Out of stock

3

.CAP,BLEEDER

59122-46H00

1

$4.54

In stock

4

.PLUG,PIN

59146-21E10

1
Out of stock

5

.BOOT

59303-14500

1
Out of stock

6

.PISTON SET

69101-44860

1

$68.15

In stock

7

..SEAL SET,PISTON

69100-04820

1

$9.00

In stock

8

.PIN,BOLT

59305-36E00

1
Out of stock

9

.SPRING,PAD

69115-06G00

1

$13.85

In stock

10

.PIN,PAD

69141-40F00

1

$30.23

In stock

11

.BRACKET

69150-18K00

1

$138.65

In stock

12

.BOLT

69182-04F00

1

$9.31

In stock

13

.SLEEVE

69185-04F00

1

$20.88

In stock

14

.BOOT,SLEEVE

69186-04F00

1

$13.55

In stock

15

.PAD SET

69101-44850

1

$61.98

In stock
