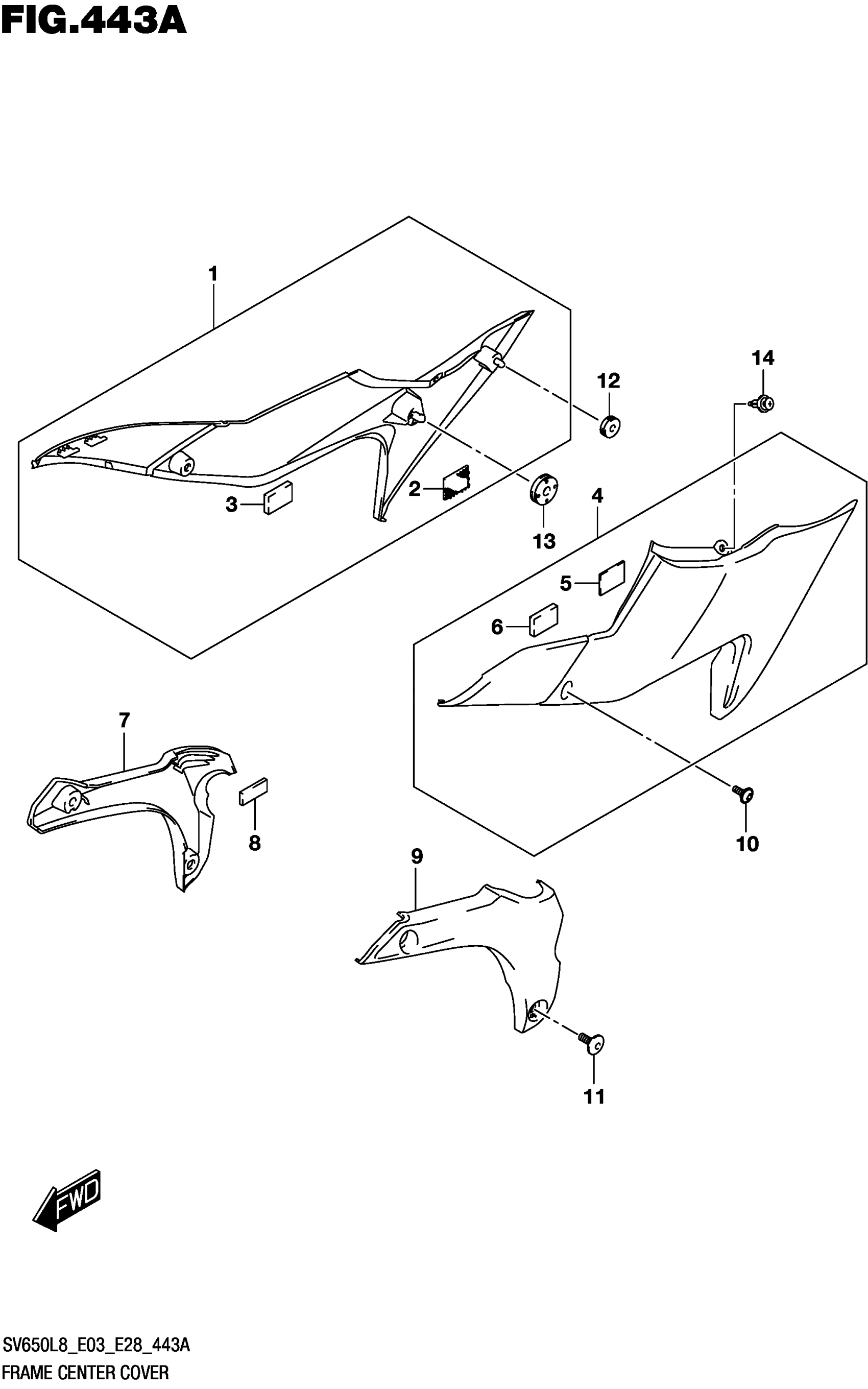

Suzuki SV650AL8 (2018) FRAME CENTER COVER Diagram

#

Description
Price

1

COVER,FRAME FRONT,R

47110-18K00

$127.10

2

FASTENER (33X25X2.6)

44572-13G00

$10.13

3

CUSHION This part replaces 63411-35B00.

51827-01A00

$6.95

4

COVER,FRAME,L

47210-18K00

$127.10

5

FASTENER (33X25X2.6)

44572-13G00

$10.13

6

CUSHION This part replaces 63411-35B00.

51827-01A00

$6.95

7

COVER,FRAME LOWER,R (BLACK)

47611-18K00-YKV

$148.33

8

CUSHION (18X43X5)

47613-44H00

$7.67

9

COVER,FRAME LOWER,L (BLACK)

47711-18K00-YKV

$148.33

10

BOLT (5X13)

09139-05074

$2.58

11

SCREW (6X16)

47915-31J00

$2.80

12

CUSHION (6X18X6)

09320-06504

$4.47

13

CUSHION (8X26X7)

09320-08028

$2.80

14

CLIP This part replaces 09409-06322.

09409-06322-5PK

$2.84
