Description

Price

1

HANDLEBAR (BLACK)

56111-44H12-YAP

$138.91

2

BALANCER SET,HANDLEBAR This part replaces 56200-41830.

56200-41831

$35.70

3

.SCREW

02122-0670B

$4.03

4

.EXPANDER,HANDLE BALANCER

56272-42F00

$6.15

5

.SPACER (6.5X16X15)

09180-06161

$7.10

6

.EXPANDER,HANDLE BALANCER This part replaces 56272-10G00.

56272-10G01

$4.64

7

.NUT

56273-10G10

$8.27

8

MIRROR ASSY,REAR VIEW,R This part replaces 56500-08J11.

56500-08J12

$130.48

9

MIRROR ASSY,REAR VIEW,L This part replaces 56600-08J11.

56600-08J12

$125.58

10

CABLE ASSY, CLUTCH

58200-44H00

$58.29

11

CLAMP (L:165)

09407-18402

$2.29

12

STOPPER,CLUTCH CABLE

58634-44H00

$17.40

13

CABLE ASSY,THRO This part replaces 58300-44H00.

58300-44H01

$54.12

14

CABLE ASSY,THRO This part replaces 58300-44H10.

58300-44H11

$47.55

15

SCREW (5X10)

09125-05042

$2.04

16

TAPE, HEAD PIPE

87873-56K50

$11.18

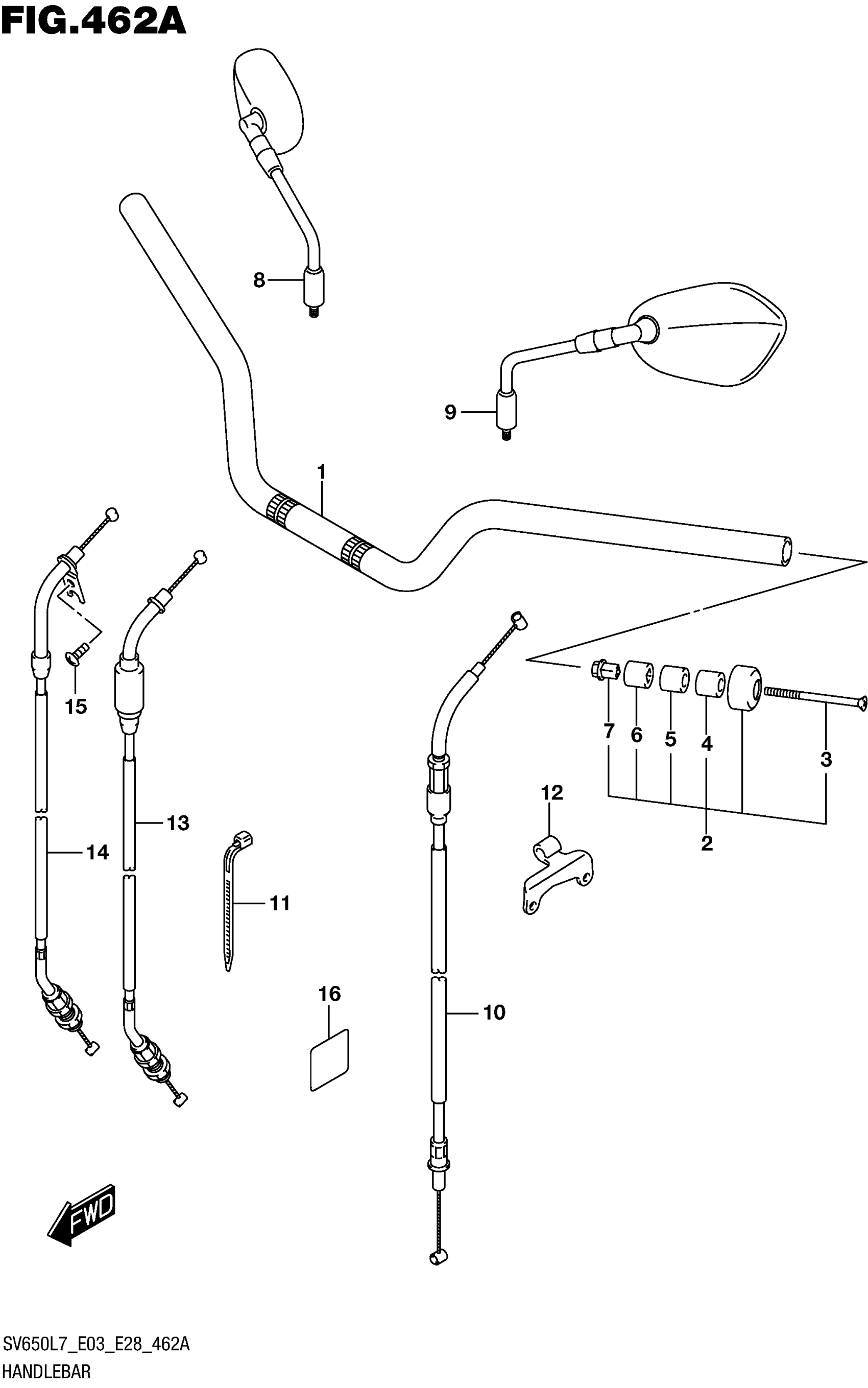

Suzuki SV650AL7 (2017) HANDLEBAR Diagram
