Description

Price

1-1

WHEEL,FRONT (BLUE) | FOR YWW This part replaces 54111-18K00-YLY.

54111-18K10-YLY

$649.53

1-1

WHEEL,FRONT (BLUE) This part replaces 54111-18K00-YLY.

54111-18K10-YLY

$649.53

1-2

WHEEL,FRONT | FOR YKV,YSF,YVZ This part replaces 54111-18K00-019.

54111-18K10-019

$597.40

1-2

WHEEL,FRONT This part replaces 54111-18K00-019.

54111-18K10-019

$597.40

2

SPACER,FR HUB BEARING

54731-44H00

$28.05

3-1

BALANCER, WHEEL NO.1 | 10G

55411-22H00

$9.70

3-2

BALANCER, WHEEL NO.2 | 20G

55412-22H00

$11.37

3-3

BALANCER, WHEEL NO.3 | 30G

55413-22H00

$12.93

4

OIL SEAL (22X40X7)

09285-22004

$5.51

5

BEARING This part replaces 08133-62037.

08133-6203B

$15.88

6

VALVE ASSY, WHEEL RIM (TR412)

43130-24A00

$8.10

7

TIRE,FRONT | Qualifier J This part replaces 55110-44H01.

55110-44H03

$268.26

7

TIRE,FRONT | DUNLOP This part replaces 55110-44H01.

55110-44H03

$268.26

8

AXLE,FR

54711-08F00

$117.03

9

SPACER,FR AXLE,L

54751-44H00

$19.23

10

DISC,FR BRAKE

59210-38G10

$472.48

11

BOLT (8X21)

09106-08160

$3.22

12

RING, SPEED SENSOR

54162-44H00

$26.80

13

BOLT

07130-0512A

$2.19

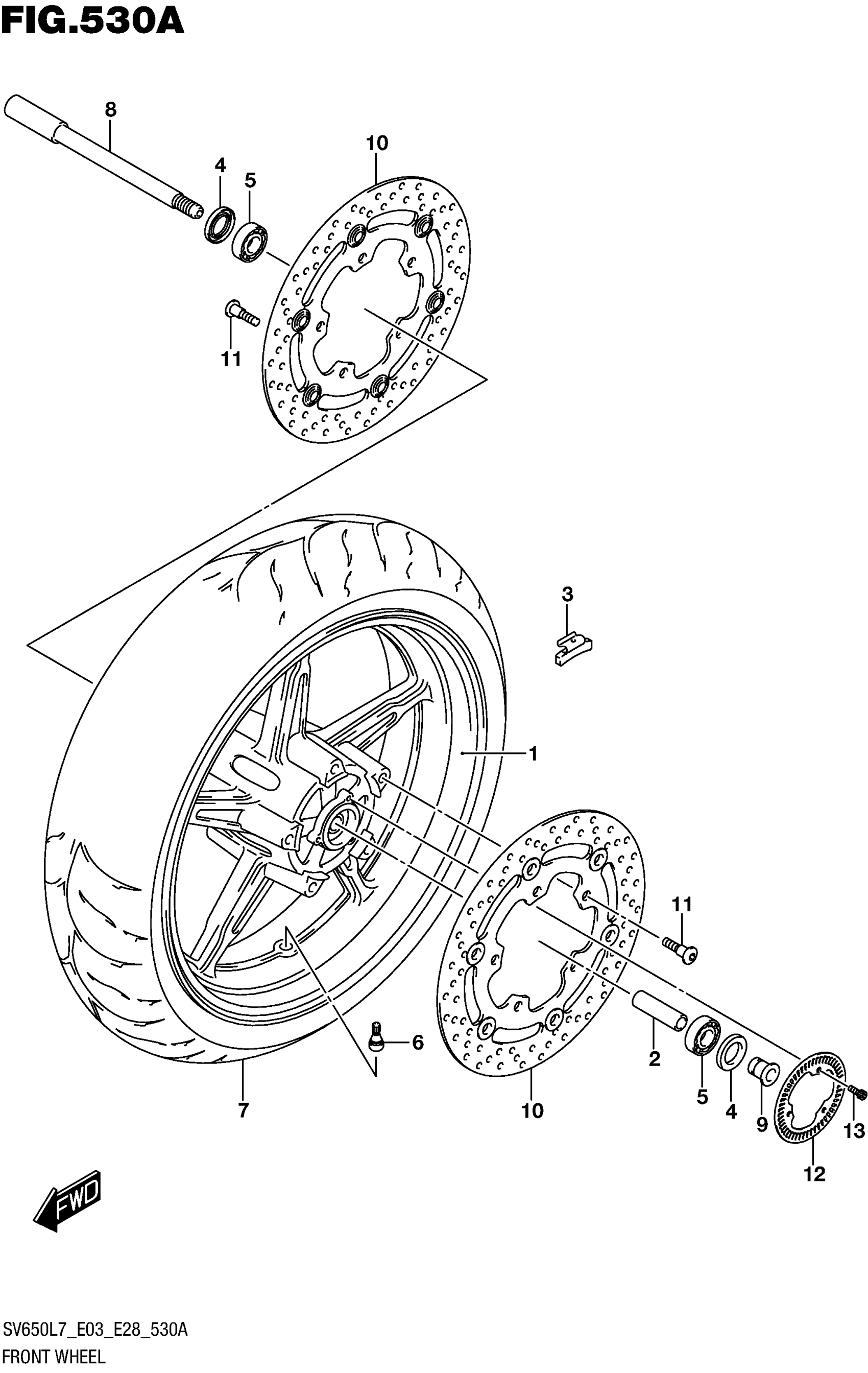

Suzuki SV650AL7 (2017) FRONT WHEEL Diagram
