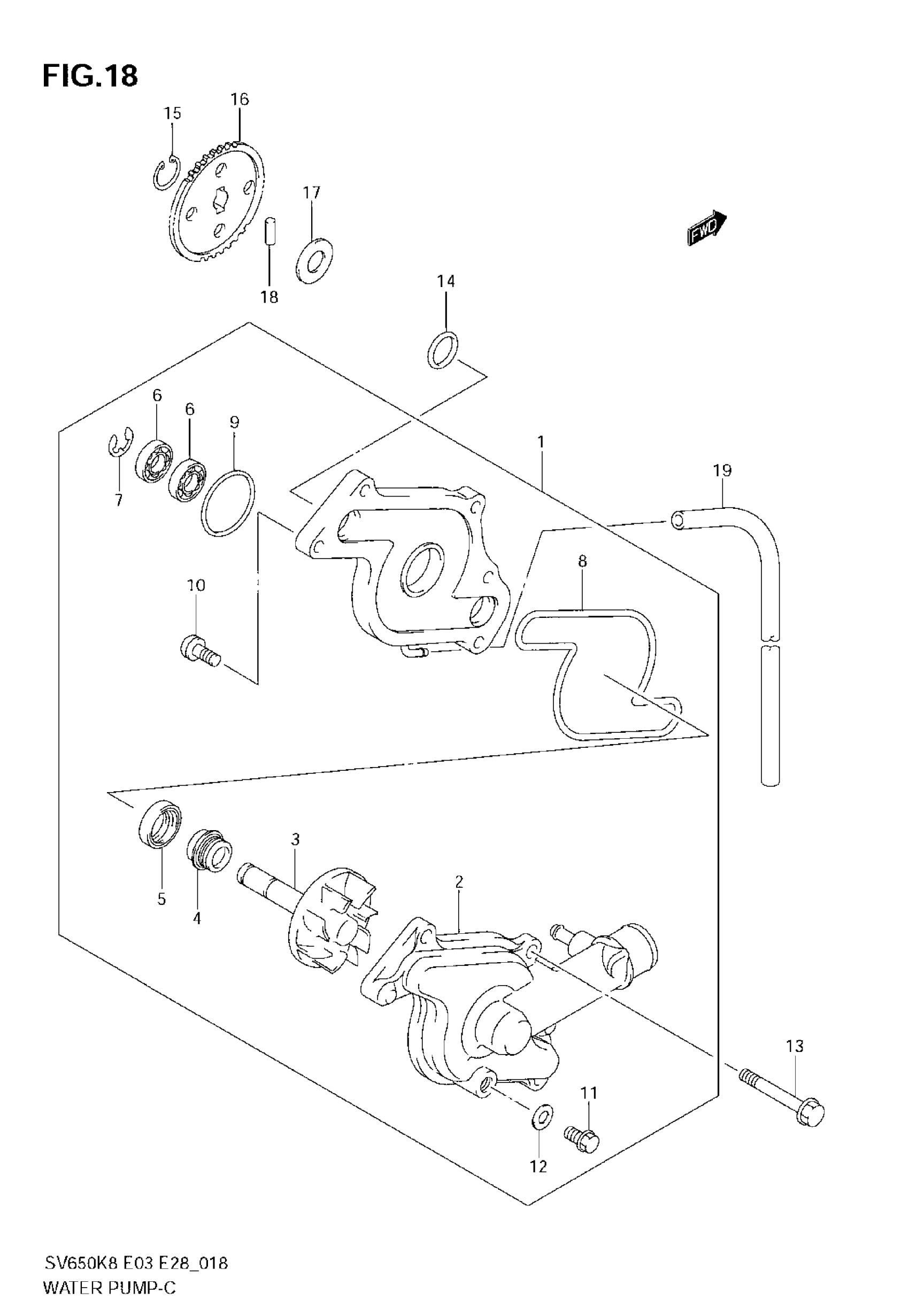

Suzuki SV650 (2008) WATER PUMP Diagram

#

Description
Price

1

PUMP ASSY,WATER | Includes Item(s) 2 - 12 This part replaces 17400-19F50.

17400-19F51

$345.90

2

CASE, WATER PUMP

17411-19F50

$158.90

3

IMPELLER/SHAFT

17491-19F40

$76.85

4

.SEAL,MECHANICAL This part replaces 17470-02F10.

17470-02F11

$26.75

5

.SEAL OIL (10X21X5)

09283-10004

$4.47

6

BEARING

08110-69000

$17.60

7

.E-RING This part replaces 08332-11086.

08332-1108A

$1.77

8

.O-RING

17418-19F00

$5.30

9

.O-RING

17435-33400

$13.99

10

SCREW This part replaces 02112-06163.

02112-0616A

$1.43

11

.BOLT,DRAIN

17415-20920

$6.75

12

GASKET (8.2X14X1)

09168-08016

$1.64

13

BOLT

09103-06216

$2.80

14

.O-RING (D:2.4,ID:21.8)

09280-22001

$1.48

15

CIRCLIP This part replaces 08331-31106.

08331-31109

$1.77

16

GEAR, WATER PUMP DRIVEN

17461-19F00

$50.26

17

SHIM

09181-10158

$1.97

18

ROLLER (4X13.8)

09261-04002

$1.87

19

HOSE(3.5X6.5X60 | L:600!320 This part replaces 09352-35653-600.

09352-35654-600

$11.65
