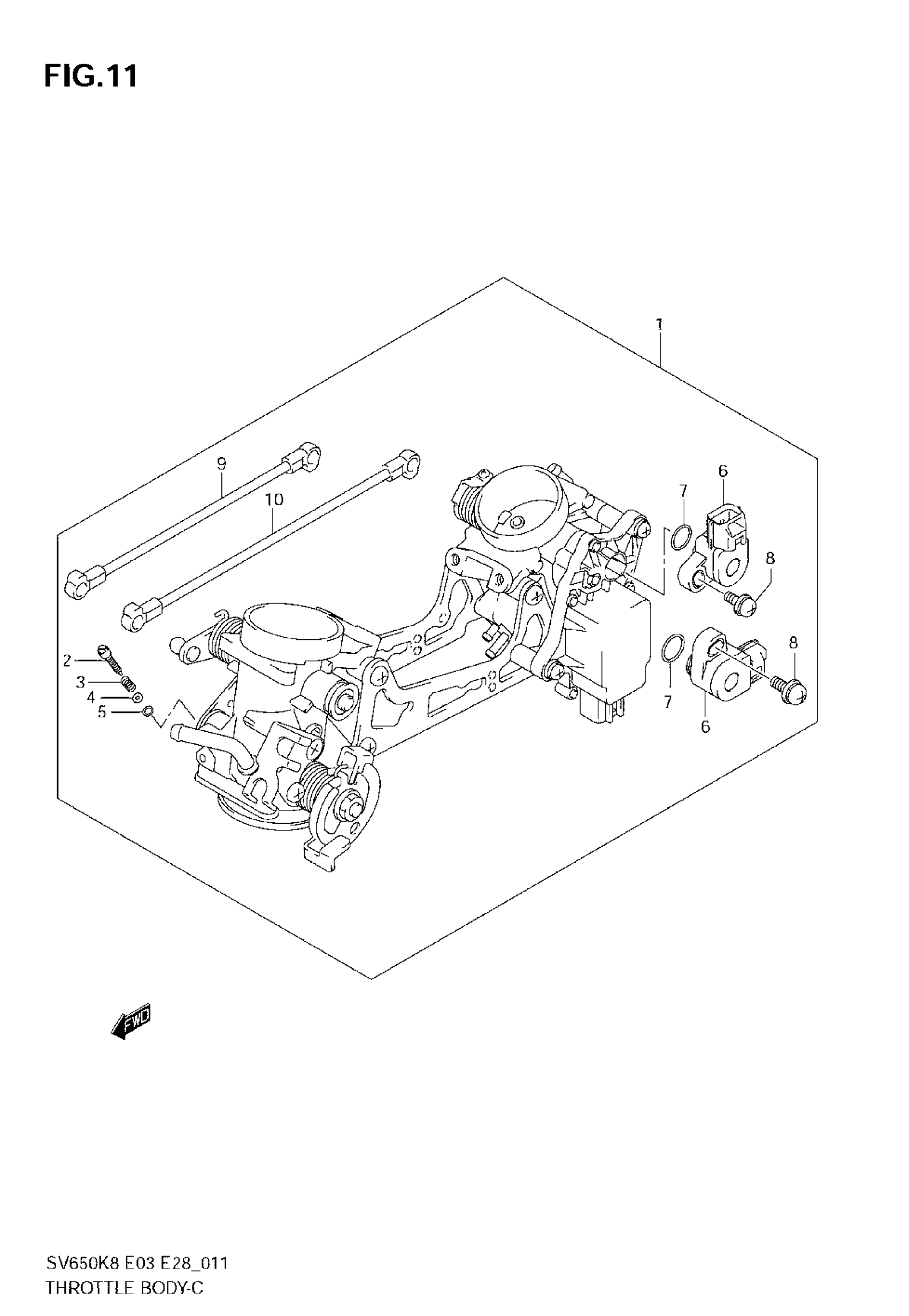

Suzuki SV650 (2008) THROTTLE BODY Diagram

#

Description

Price

1

THROTTLE BODY | E3,E28

13405-17G20

$1,345.05

1

THROTTLE BODY | E33; Includes Item(s) 2 - 10

13405-17G30

Unavailable

2

SCREW

13269-33E00

$10.45

3

SPRING,THROTTLE SCREW

13268-48700

$3.97

4

WASHER

13606-47A00

$3.70

5

O-RING This part replaces 13295-29900.

13295-29901

$3.97

6

SENSOR ASSY This part replaces 13580-27G20.

13580-27G21

$163.47

7

.O-RING This part replaces 13575-29G00.

13575-29G01

$2.97

8

SCREW

13605-02F00

$3.50

9

ROD ASSY

13552-17G00

$33.12

10

ROD ASSY

13552-16G00

$33.12
