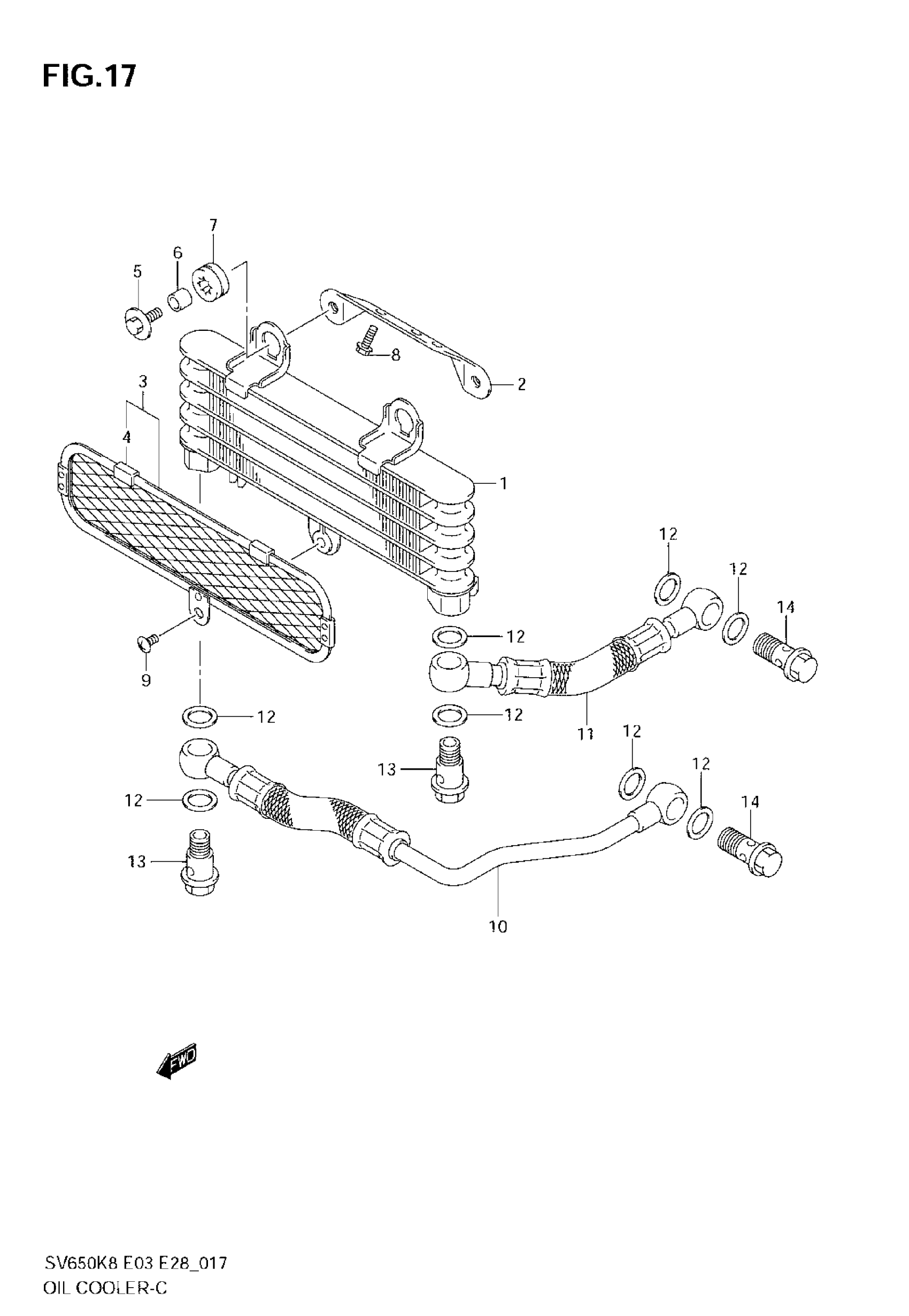

Suzuki SV650 (2008) OIL COOLER Diagram

#

Description
Price

1

COOLER ASSY, OIL

16600-27G00

Unavailable

2

BRACKET, OIL COOLER

16620-27G00

$11.18

3

GUARD,OIL COOLE | Includes Item(s) 4 This part replaces 16650-27G01.

16650-27G02

$34.88

4

.PROTECTOR, CTR This part replaces 17765-09F00.

17765-09F01

$2.80

5

BOLT

09116-06167

$2.19

6

SPACER

09180-06310

$1.92

7

CUSHION

09320-09009

$4.19

8

BOLT

01550-0616B

$2.53

9

SCREW

02142-0510B

$1.77

10

HOSE,OIL COOLER This part replaces 16460-17G00.

16460-17G01

$186.50

11

HOSE, OIL COOLER LH

16470-17G00

$139.58

12

.GASKET (14X20X1.5)

09168-14015

$2.01

13

BOLT

09360-12012

$12.57

14

BOLT

09360-14012

$9.80
