Description

Price

1

PUMP ASSY, FUEL | Includes Item(s) 2 - 13

15100-16G00

$1,188.68

2

FILTER, FUEL

15410-16G00

$455.63

3

STRAINER, FUEL PUMP

15420-24FB0

$109.12

4

CUSHION, FUEL PUMP

15111-35F00

$8.71

5

HOLDER, FUEL PUMP

15112-42F00

$17.52

6

BUSH, FUEL PUMP

15114-35F00

$14.34

7

O RING

15113-35F00

$8.15

8

NUT

15115-35F00

$9.75

9

SCREW

15116-35F10

$5.95

10

THERMISTOR

15170-16G00

$307.90

11

WASHER

15171-35F00

$8.13

12

SPRING WASHER

15172-35F00

$8.13

13

NUT

15173-35F00

Unavailable

14

O-RING

15201-35F00

$25.27

15

BOLT

07120-0612B

$2.80

16

HOSE COMP, FUEL This part replaces 15810-16G00.

15810-16G01

$61.50

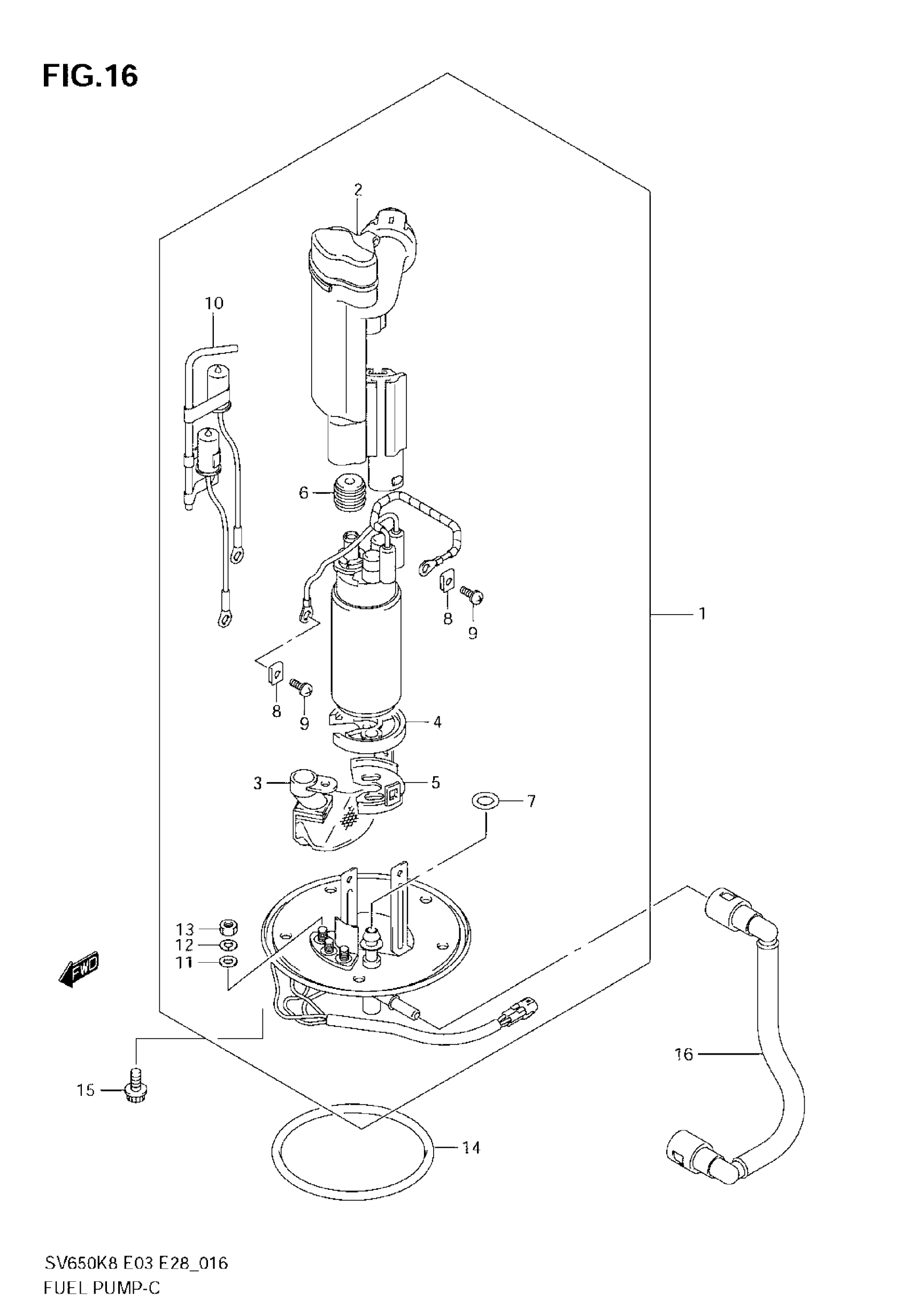

Suzuki SV650 (2008) FUEL PUMP Diagram
